FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE U SER ’ S M ANUAL FC9Y-B1722 9-3
9: F UNCTIONAL M ODULES
Analog Module Parameter Settings
This section describes the analog module parameter settings.
The parameter settings are configured for each channel. The parameters to configure differ according to the analog module type
and I/O type. In Expansion Modules Configuration, configure the parameter settings according the application.
For detailed configuration methods, see "Expansion Module and Cartridge Settings" on page 12-1.
Analog Input Type
The following parameters are for configuring the analog inputs on the analog input modules and the mixed analog I/O modules.
Yes: Parameters,
―: No parameters
No. Parameter FC6A-J2C1 FC6A-J4A1 FC6A-J8A1 FC6A-J4CN1 FC6A-J8CU1 FC6A-L06A1 FC6A-L03CN1
(1) Signal Type Yes Yes Yes Yes Yes Yes Yes
(2) Data Type Yes Yes Yes Yes Yes Yes Yes
(3)
Minimum and
maximum values
(Data type)
Yes Yes Yes Yes Yes Yes Yes
(4) Filter Yes Yes Yes Yes Yes Yes Yes
(5) Sample Time Yes Yes Yes Yes Yes Yes Yes
(6) Thermistor Settings ――――Yes ――
(7) Data Yes Yes Yes Yes Yes Yes Yes
(8) Status Yes Yes Yes Yes Yes Yes Yes

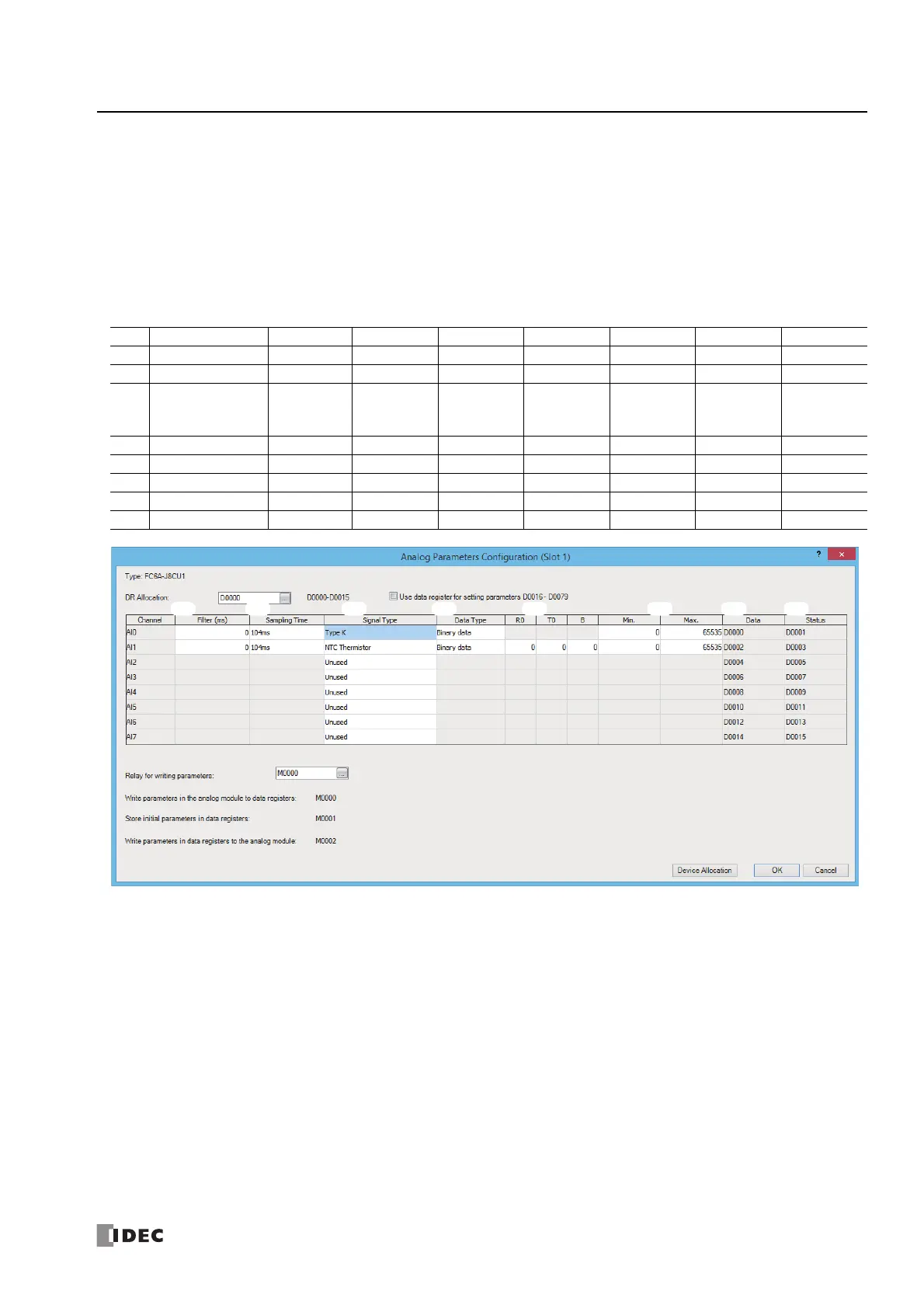

(4) (5) (1) (2) (6) (3) (7) (8)
