4: O PERATION B ASICS
4-12 FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE U SER ’ S M ANUAL FC9Y-B1722

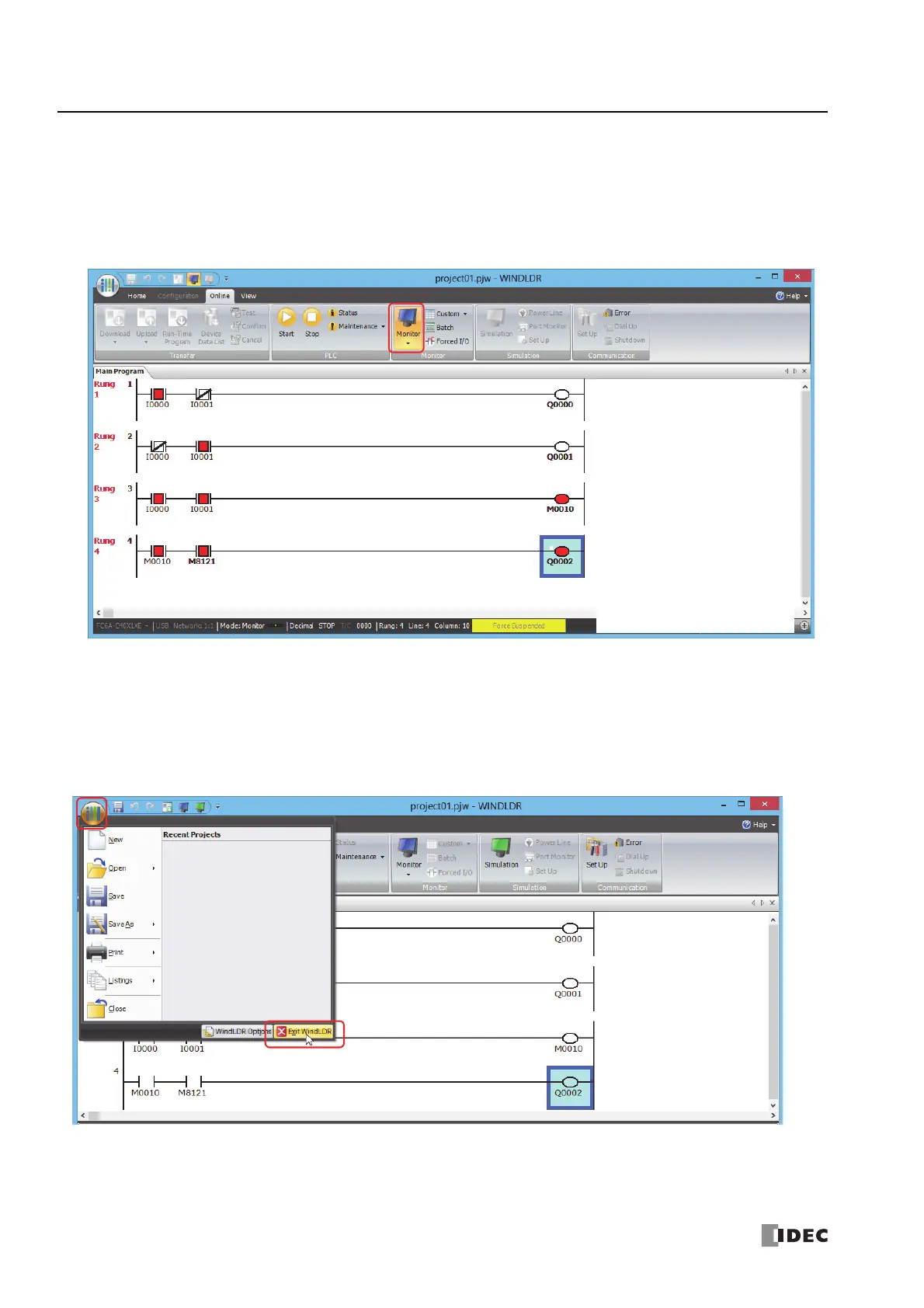

Monitor Operation
Another powerful function of WindLDR is to monitor the PLC operation on the computer. The input and output statuses of the
sample program can be monitored in the ladder diagram.
From the WindLDR menu bar, select Online > Monitor > Monitor.
When both inputs I0 and I1 are on, the ladder diagram on the monitor screen looks as follows:
Exit WindLDR
This section describes the operating procedure to exit WindLDR.
When you have completed monitoring, you can exit WindLDR either directly from the monitor screen or from the editing screen. In
both cases, from the WindLDR application button, click Exit WindLDR.
Rung 1:
When both inputs I0 and I1 are on,
output Q0 is turned off.
Rung 2:
When both inputs I0 and I1 are on,
output Q1 is turned off.
Rung 3:
When both input I0 and I1 are on,
internal relay M10 is turned on.
M8121 is the 1-s clock special
internal relay.
While M10 is on, output Q2 flashes
in 1-s increments.
