FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE U SER ’ S M ANUAL FC9Y-B1722 2-63
2: P RODUCT S PECIFICATIONS
Functional module
Functional modules are available as analog modules equipped with analog inputs and analog outputs and PID modules that
perform temperature control with analog input.
Analog Module

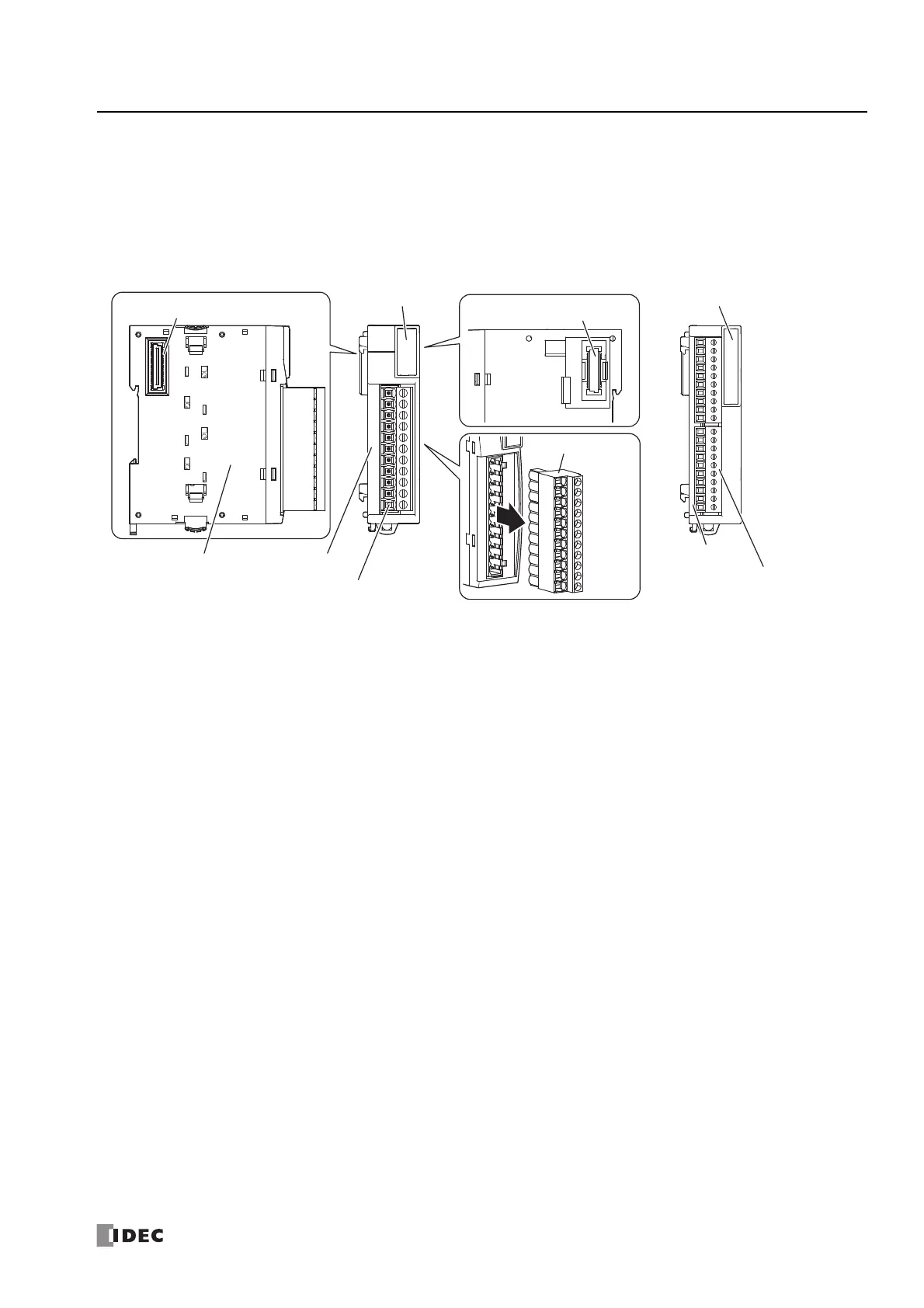

Parts Description
(1) Type Label
Indicates the analog module type no. and specifications.
(2) Power LED [PWR]
This LED turns on when power is supplied to the analog module.
(3) Terminal Name Label
Indicates terminal numbers.
(4) Cable Terminal
Two types of terminals are separately available: the terminal block type (3.81 mm pitch) and the terminal block type (5.08
mm pitch).
(5) Expansion Connector
Connects the expansion modules and the CPU module.
Example: FC6A-J2C1 Example: FC6A-L06A1
(2) Power LED
[
PWR
]
(2) Power LED
[
PWR
]
(5) Expansion Connector
(5) Expansion Connector
(3) Terminal Name Label
(4) Cable Terminal
(1) Type Label
(4) Cable Terminal
(4) Cable Terminal
(3) Terminal Name Label
