Assembly Methods
This section describes how to assemble the FC6A Series MicroSmart.
Assembling the CPU Module and Expansion and Expansion Interface Modules
The following procedure describes the assembly of the CPU module and an expansion module.

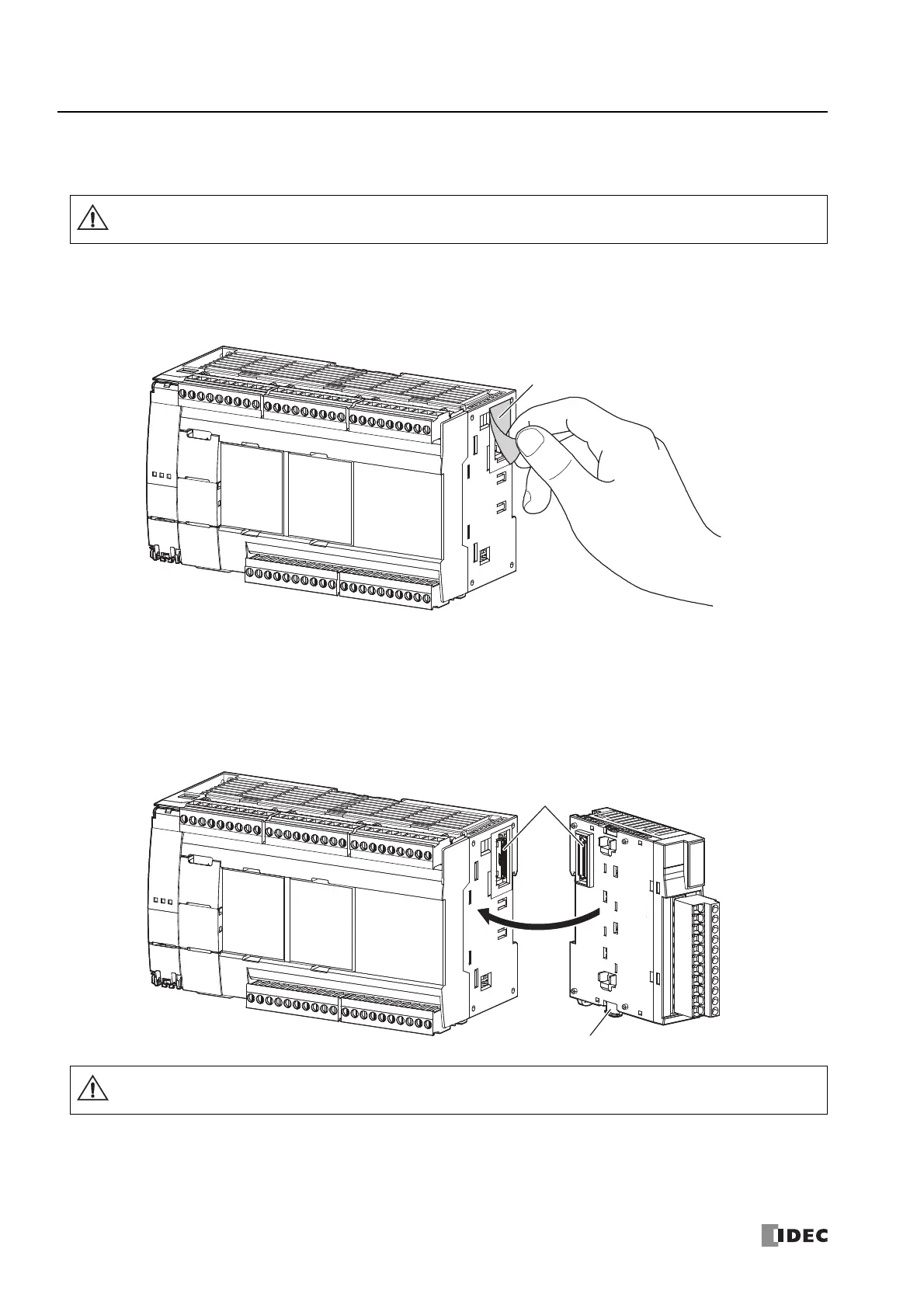

1. Peel off the protection sticker applied to the expansion connector on the CPU module.
2. Line up the expansion module alongside the CPU module.
Note: The CPU module and the expansion module are easier to line up if you use the position of the expansion connector as a guide.
3. Confirm that the expansion module eject button is depressed and push the expansion module until it clicks while taking care
with the position of the expansion connector. If the eject button is not depressed, push in the eject button until it clicks after
the expansion module has been pushed onto the CPU module.
The expansion module is now locked on the CPU module.
Note: The assembly of an expansion module and the expansion interface module is the same, first peel off the expansion connector protection
sticker on the expansion module and then mount it.
Assemble the FC6A Series MicroSmart before mounting it to a DIN rail or directly mounting it. When mounting the FC6A
Series MicroSmart to a DIN rail, if it is assembled after being mounted to the DIN rail, there is a risk of damage.
Caution
Expansion Connector Protection Sticker
Eject Button
Expansion Connector
Do not perform this work when the FC6A Series MicroSmart is powered. Otherwise there is a risk of damage.
Caution
