This section describes the fonts that can be displayed on the HMI module LCD.
Supported Languages
The HMI module is equipped with fonts for multiple languages as standard. Messages in the language selected with the MSG
instruction can be displayed on the LCD.
The menu can be displayed in English, Chinese, or Japanese, and messages can be displayed in a desired language out of the
following languages: German, English, Italian, Spanish, Dutch, French, Cyrillic, Chinese, and Japanese.
Installed Fonts List
Note: Some of the characters cannot be input.

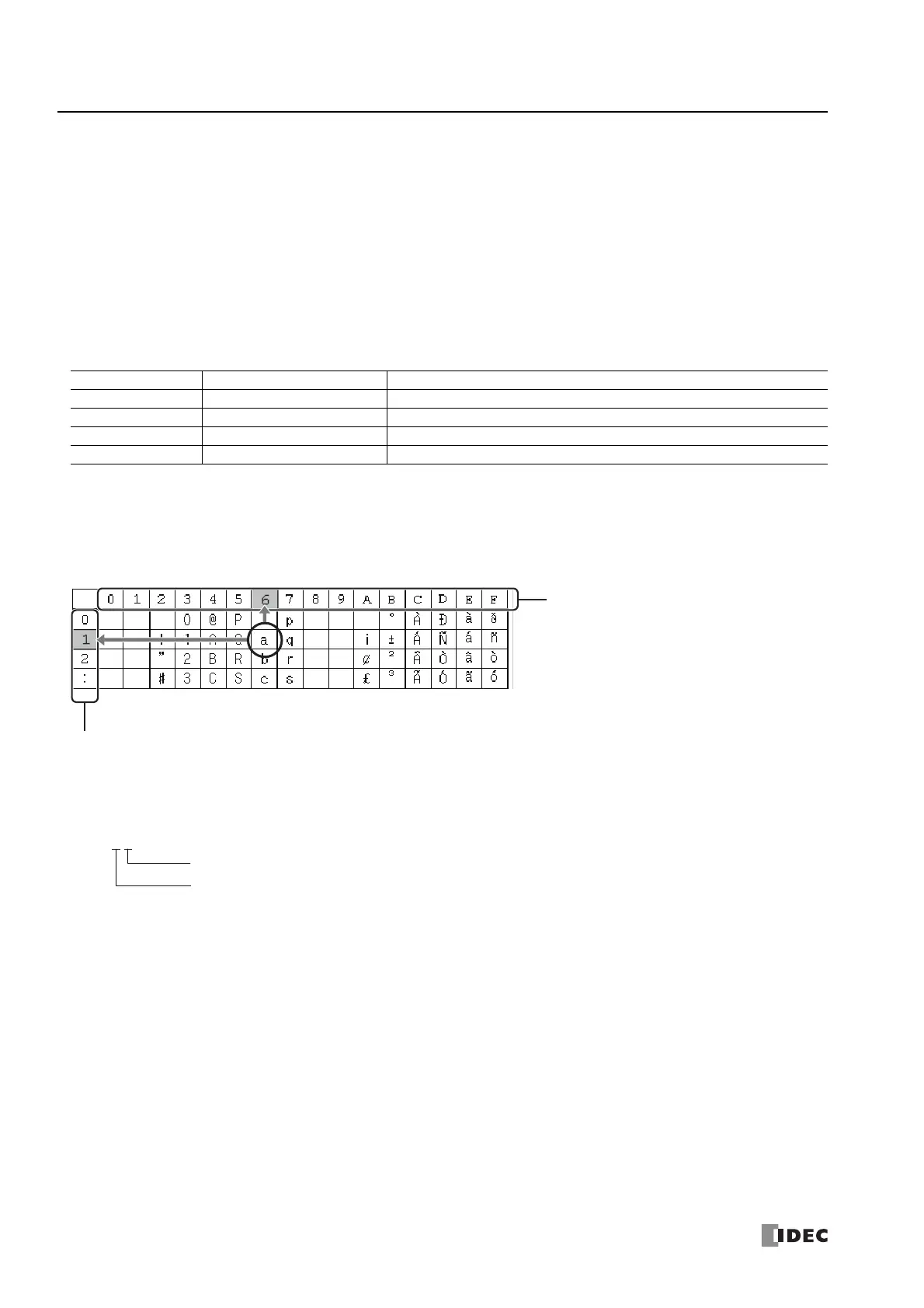

Character Code Table
Using the Character Code Table
Example: Finding the character code for the character “a” in the table.
The upper 4 bits of the code are hexadecimal 6.
The lower 4 bits of the code are hexadecimal 1.
Therefore, the character code for "a" is as follows.
Note: For other fonts and two-byte characters, refer to the table of the relevant code system.
Setting name Character code system Supported languages
Western European ISO8859-1 (Latin-1) English, German, Italian, Spanish, Dutch (Note), French (Note)
Japanese Shift-JIS Japanese (level 1)
Chinese GB2312 Chinese (simplified)
Cyrillic ANSI1251 Russian
Upper 4 bits of the code (hexadecimal)
Lower 4 bits of the code (hexadecimal)
Upper 4 bits
Lower 4 bits
"a": 61
