10: A NALOG C ARTRIDGE
10-2 FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE U SER ’ S M ANUAL FC9Y-B1722
Analog Cartridge Specifications
This section describes analog cartridge types, how to check the version number, and the analog input and output assignments.
Type Number Configuration
The I/O type, the number of analog inputs or outputs, and the signal types according to the analog cartridge type number are as
follows.
Checking the Version Number

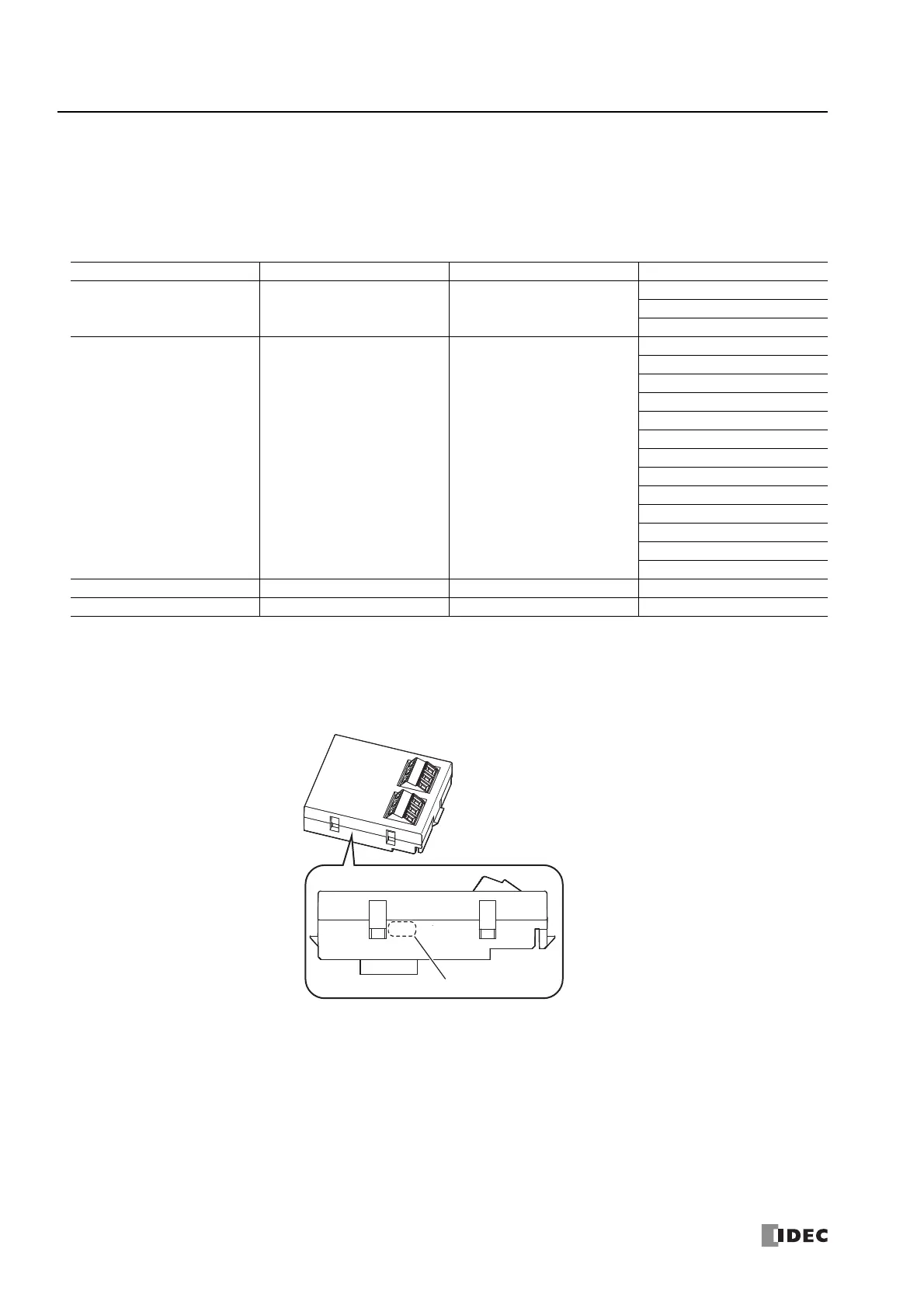

The analog cartridge version number is printed on the side of the analog cartridge in the location in the following diagram. The
performance and functionality of the analog cartridge will differ by its version, so check the version number before use. For details,
see "(6) Status" on page 10-7.
Type No. I/O Type Number of Analog Points Signal Type
FC6A-PJ2A Analog input 2 points
0 to 10 V
0 to 20 mA
4 to 20 mA
FC6A-PJ2CP Analog input 2 points
Type K thermocouple
Type J thermocouple
Type R thermocouple
Type S thermocouple
Type B thermocouple
Type E thermocouple
Type T thermocouple
Type N thermocouple
Type C thermocouple
Pt100
Pt1000
Ni100
Ni1000
FC6A-PK2AV Analog output 2 points 0 to 10 V
FC6A-PK2AW Analog output 2 points 4 to 20 mA
LOT No.14XS12525
MADE IN JAPAN
V100
LOT No.xxxxxxxxx
MADE IN JAPAN
V100
Version Number
