Analog Cartridges
The CPU module and the HMI module can be expanded with a maximum of 6 analog inputs or analog outputs. For details on
analog cartridges, see "Analog Cartridge" on page 10-1.

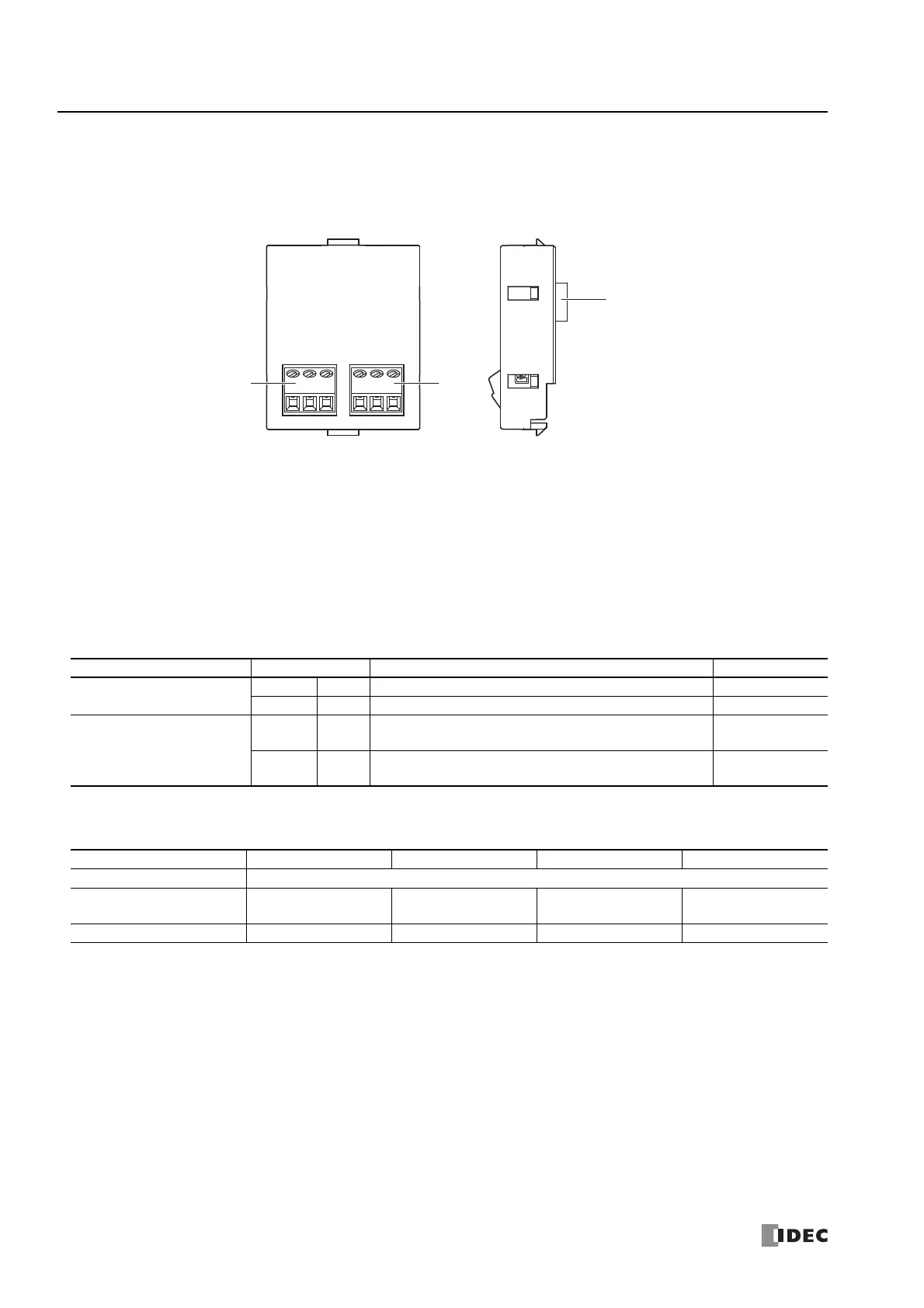

Parts Description
(1) Channel 0 terminals
The terminals connect an input device or an output device. The devices that can be connected differ by the type of analog
cartridge.
(2) Channel 1 terminals
The terminals connect an input device or an output device. The devices that can be connected differ by the type of analog
cartridge.
(3) Connector
Connects the cartridge to Cartridge Slot 1 or 2 of the CPU module or Cartridge Slot 3 of the HMI module.
Model List
Function Specifications
Cartridge Type I/O Points I/O Signal Type No.
Analog output cartridge
Output 2 Voltage output: 0 to 10V DC FC6A-PK2AV
Output 2 Current output: 4 to 20mA DC FC6A-PK2AW
Analog input cartridge
Input 2
Voltage input: 0 to 10V DC
Current input: 0 to 20mA DC, 4 to 20mA DC
FC6A-PJ2A
Input 2
Thermocouple input: K, J, R, S, B, E, T, N, C
Resistance thermometer input: Pt100, Pt1000, Ni100, Ni1000
FC6A-PJ2CP
Type No. FC6A-PK2AV FC6A-PK2AW FC6A-PJ2A FC6A-PJ2CP
Rated Power Voltage 5.0 V, 3.3 V (supplied from module)
Current Draw
5.0 V: 70 mA
3.3 V: 30 mA
5.0 V: 185 mA
3.3 V: 30 mA
5.0 V: ―
3.3 V: 30 mA
5.0 V: ―
3.3 V: 30 mA
Weight 15 g 15 g 15 g 15 g
