FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE U SER ’ S M ANUAL FC9Y-B1722 3-11
3: I NSTALLATION AND W IRING

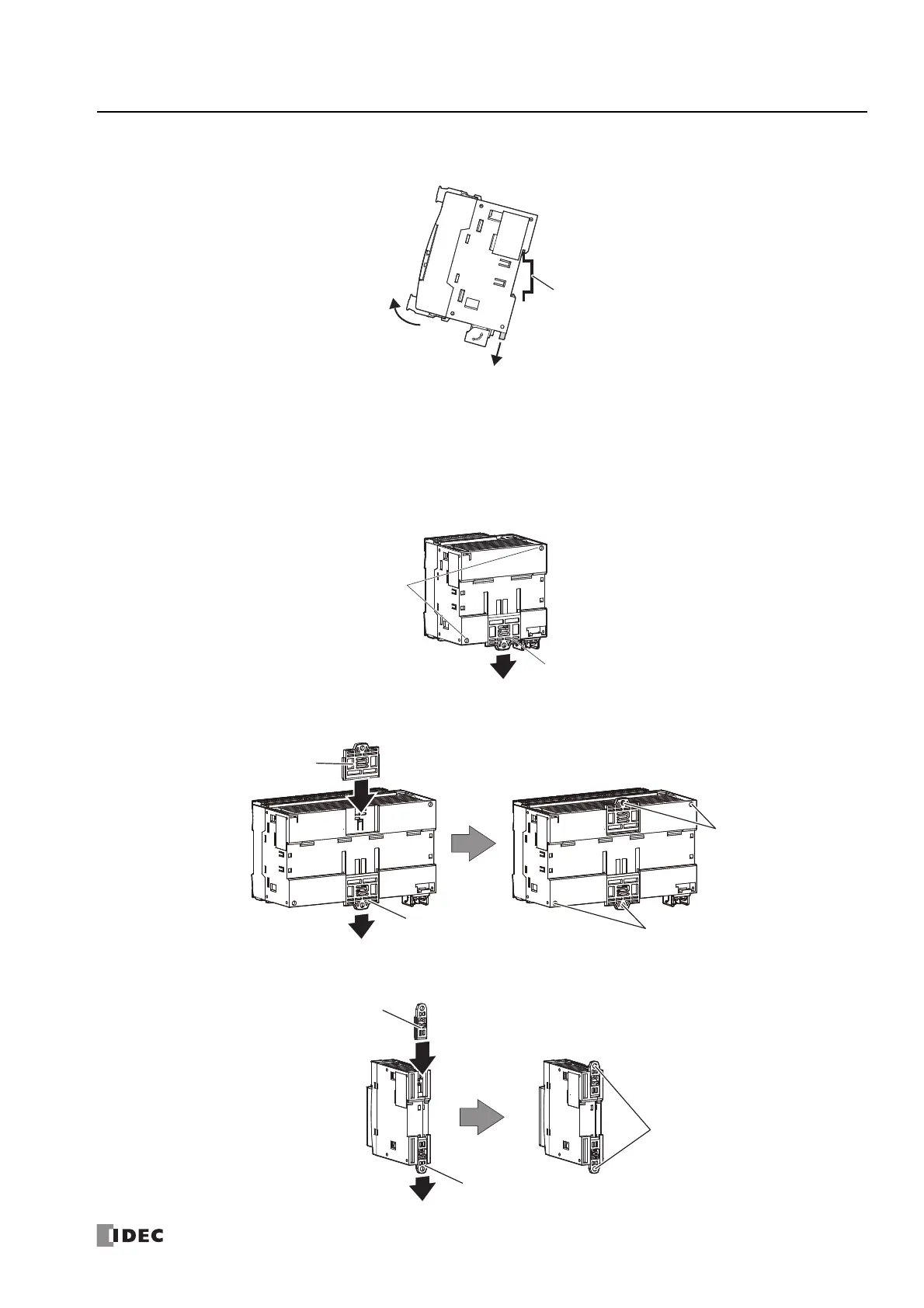

Removing from DIN Rail
1.Lower the FC6A Series MicroSmart's DIN rail clamp with a flathead screwdriver (1) and lift it up while pulling forward (1).
Direct Mounting on Panel Surface
This section describes how to mount the FC6A Series MicroSmart directly onto a mounting plate for installation in a control panel.
The direct mounting method differs according to the FC6A Series MicroSmart. To mount the FC6A Series MicroSmart directly, it
may be necessary to make holes in the mounting plate depending on the FC6A Series MicroSmart model.
Direct Mounting Methods
■ 16- and 24-I/O types
Mount using the screw holes on the back of the module.
■ 40-I/O type and the HMI module
Pull out the DIN rail clamp on the back of the module, attach the direct mounting hook (maintenance part: FC6A-PSP1PN05),
and then mount the module to the mounting plate using the screw holes.
■ Expansion and expansion interface modules
Pull out the DIN rail clamp on the back of the module, attach the direct mounting hook (maintenance part: FC6A-PSP2PN05),
and then mount the module to the mounting plate using the screw holes.
(2) Pull outward and upward.
DIN Rail
(1) Lower DIN Rail clamp.
Screw Hole
DIN Rail Clamp
DIN Rail Clamp
Screw Hole
Screw Hole
Direct Mounting Hook
(FC6A-PSP1PN05)
DIN Rail Clamp
Screw Hole
Direct Mounting Hook
(FC6A-PSP2PN05)
