FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE U SER ’ S M ANUAL FC9Y-B1722 5-41
5: F UNCTIONS AND S ETTINGS
Programming WindLDR
To use the analog volume, you must configure the Function Area Settings in WindLDR and download the user program to the
FC6A Series MicroSmart.

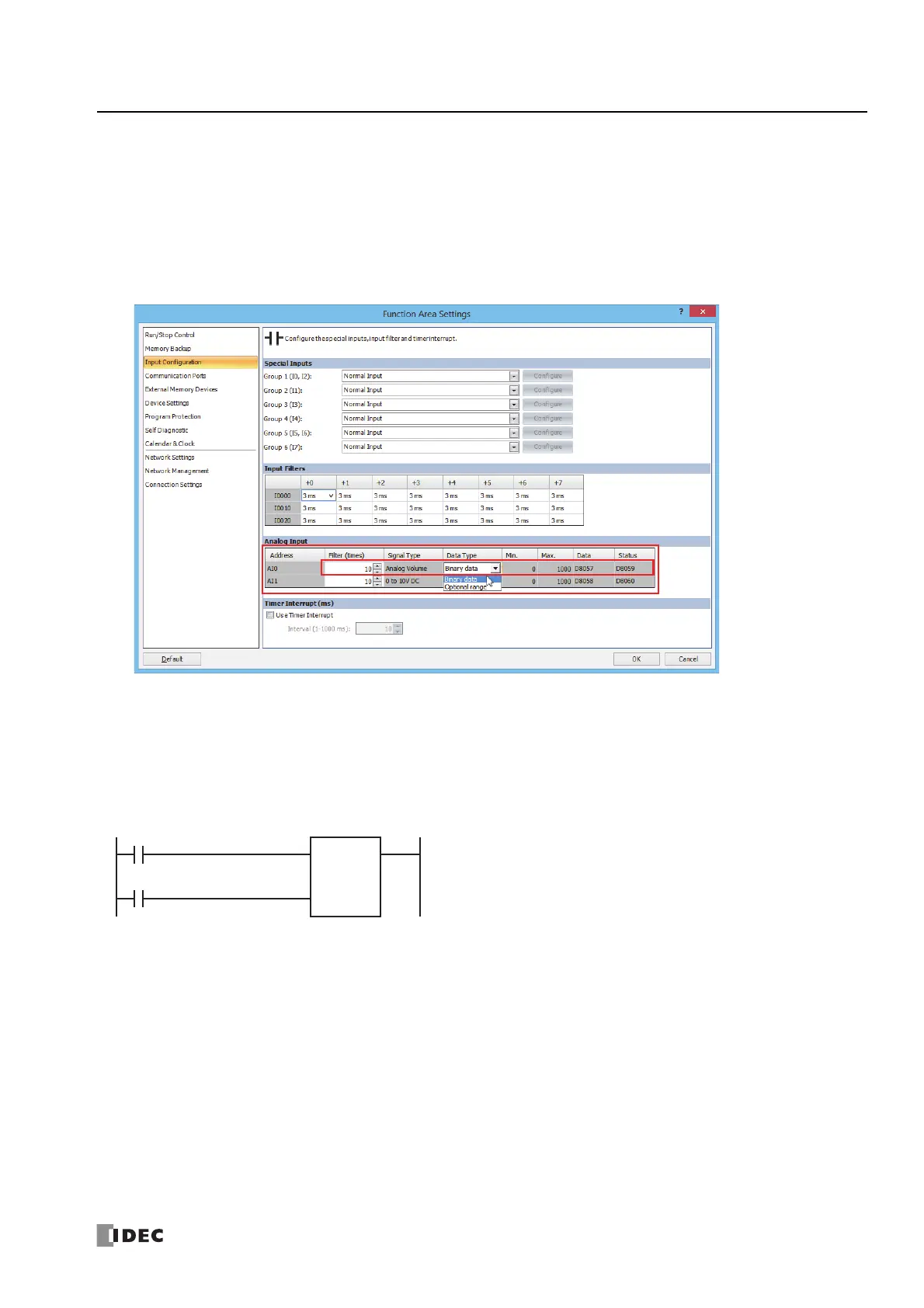

1. On the Configuration tab, in the Function Area Settings group, click Input Configuration.
The Function Area Settings dialog box is displayed.
2. For AI0, configure the filter count and data type for the analog volume.
The AI0 signal type is fixed as "Analog Volume".
3. Click OK.
This concludes configuring the settings.
Example program
This program uses the analog volume value for the counter preset value.
When reset input M0000 turns on, the current value is reset to "0".
While reset input M0000 is off, the counter can count.
While the counter is in the state where it can count, it increments +1
with each rise in up clock input M0001.
When the current value reaches analog volume value D8057,
counting ends, and the counter output is maintained until reset input
M0000 is turned on.
M0000
M0001
Reset Input
Analog Volume
CNT C000
D8057
