• If the FC6A Series MicroSmart is running, it is stopped automatically before the system software download starts.
• Older system software can also be downloaded to the FC6A Series MicroSmart if required.
• The system software download takes about one minute.
4. A confirmation message is displayed. Click Yes to start downloading the system software.

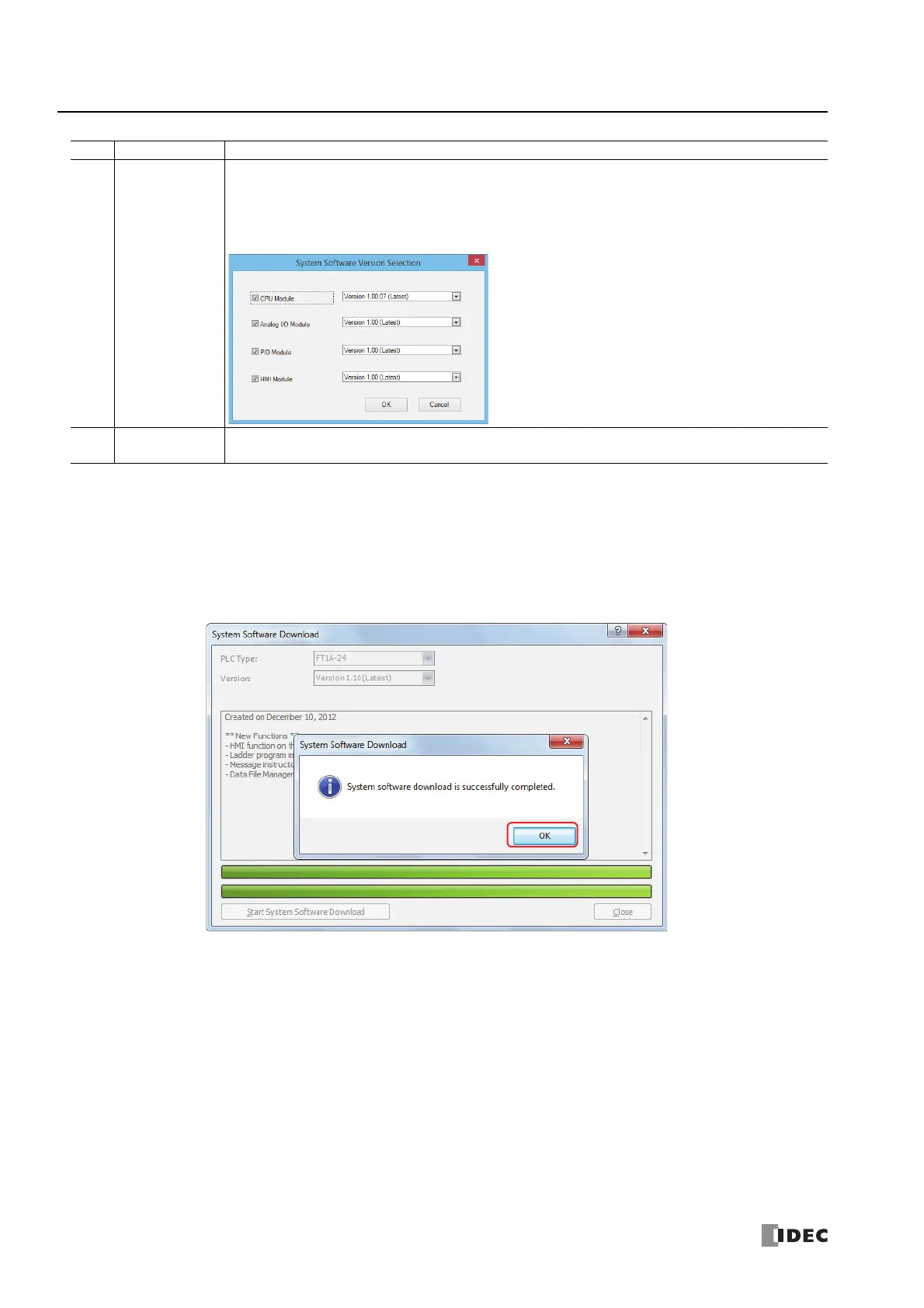

5. System software download status is shown by a progress bar. A completion message appears when the system software has
been downloaded successfully. Click OK to close the System Software Download dialog box.
Notes:
• For the FC6A Series MicroSmart, its backlight will flash while the system software is downloading.
• After the system software has downloaded, the FC6A Series MicroSmart will be in the STOP state. Use WindLDR operations, FC6A Series
MicroSmart function switch operations, or HMI module LCD operations to run the FC6A Series MicroSmart.
•
The user program stored in the FC6A Series MicroSmart before downloading the system software remains and is executed when the FC6A Series
MicroSmart is restarted. A user program execution error may occur if an older system software is downloaded to the FC6A Series MicroSmart.
• If the system software download fails, download it again.
(5) Configure button
If you select Custom for Version, click this button to display the System Software Version Selection dialog
box, which you can use to specify the module to download the system software to and the system software
version.
Select all the check boxes for the modules to download the system software to. Select the system software version
for each module, and then click OK.
(6) Status display
The success or failure of the system software download for each target module is displayed here.
The slot position and the PLC type are both displayed for analog modules and PID modules.
