iDect FC6A series User Manual

2: P RODUCT S PECIFICATIONS
2-60 FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE U SER ’ S M ANUAL FC9Y-B1722

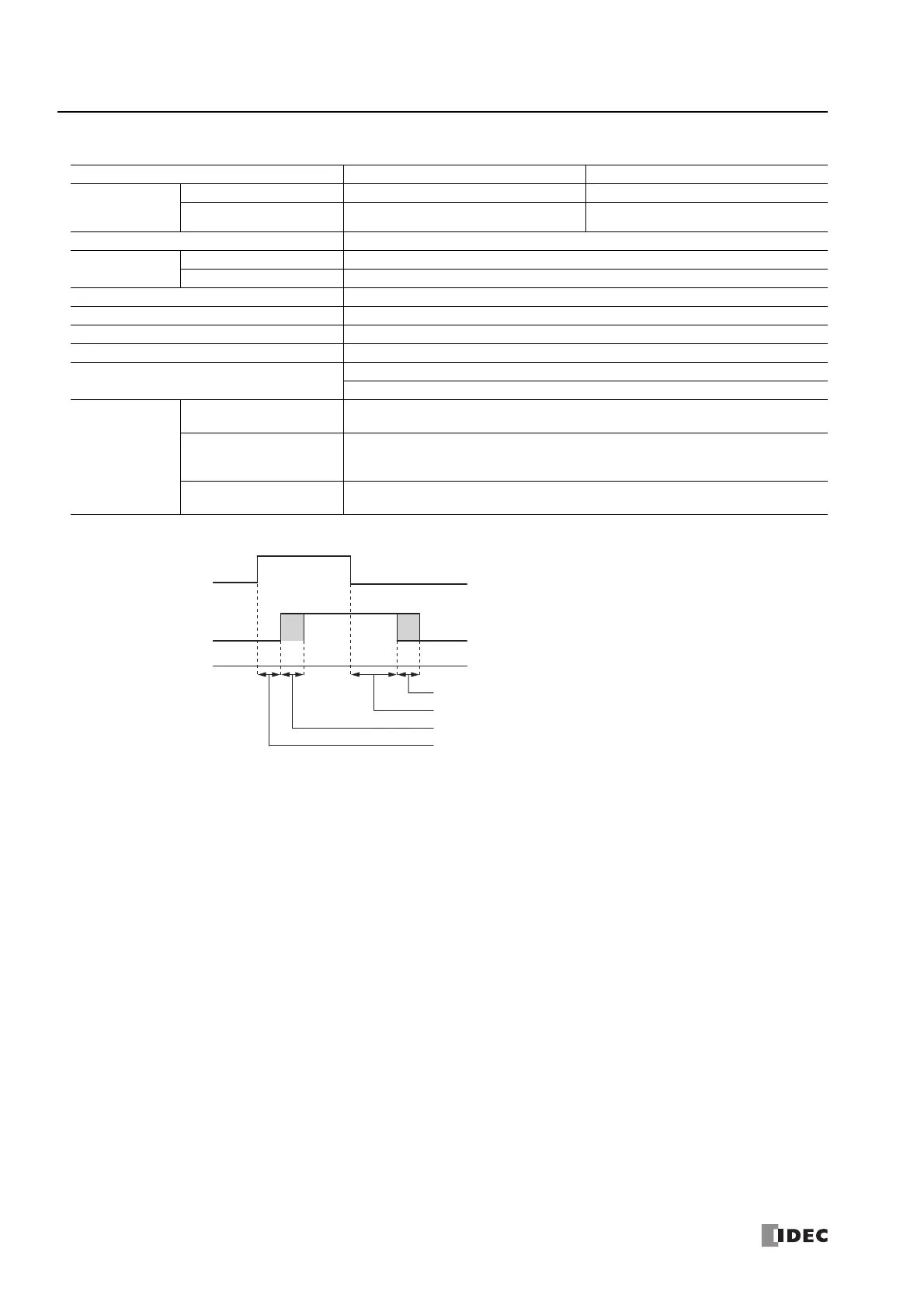

■ Output Specifications
Output Delay
Type No. FC6A-M08BR1 FC6A-M24BR1
Output Points
per Common
Line
COM1 44
COM2 ― 4
Output Type 1a contact
Load Current
1 2 A maximum
1 Common 7 A maximum
Minimum Switching Load 1.0 mA/5.0V DC (reference value)
Initial Contact Resistance 30 mΩ or lower
Electrical Life 100,000 operations minimum (rated load 1,800 operations/hour)
Mechanical Life 20,000,000 operations minimum (no load 18,000 operations/hour)
Rated Load
240V AC 2 A (resistive load, cosφ=0.4 inductive load)
30V DC 2 A (resistive load, L/R=7 ms inductive load)
Withstand
Voltage
Between Output
Terminal and FG
2,300V AC 1 minute
Between Output
Terminal and Internal
Circuit
2,300V AC 1 minute
Between Output
Terminals (COMs)
2,300V AC 1 minute
OFF Bounce: 6 ms maximum
OFF Delay:
10 ms maximum
ON Bounce: 6 ms maximum
ON Delay:
6 ms maximum
Input to Relay
Output Relay Status
ON
OFF
ON
OFF
