20 iDirect Evolution 8000 Series Satellite Router Installation and Safety Manual
Unpacking Your e8350 Satellite Router
• Low Noise Block converter (LNB)
• An antenna ranging in size from 0.96m, 1.2m, 1.8m, or 2.4m for Ku-Band; and 1.8m,
2.4m, and 3.8m for C-Band
• An appropriate feed assembly for the antenna (OMT)
Note: Installation instructions for your antenna and feed assembly are not included in
this manual. Refer to the antenna manufacturer's installation guide.
4.2.2 Additional Components Normally Required
Additional components normally required for an installation include:
• An iDirect specified L-Band cable, consisting of a RG-6 or RG-11 dual-coax cable and
connectors (for connecting the e8350 Satellite Router to the outdoor equipment), plus
F-type connectors and sealant tape (See “Console Port Cable Specifications and Pinout”
on page 31.)
• Non-Pen (Non-Penetrating) roof mount
• Ballast (anchor weight)

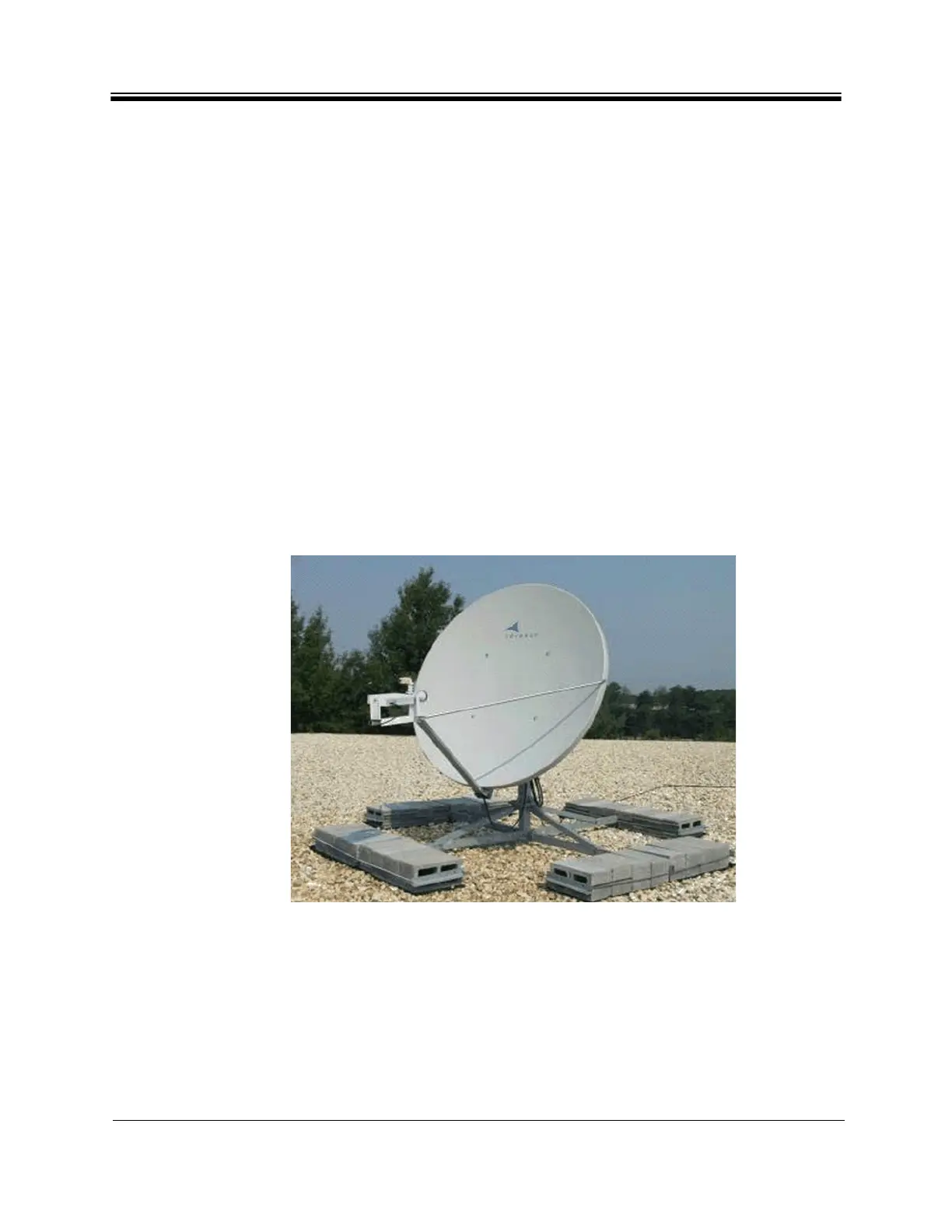

A picture of a typical antenna with BUC and LNB is shown in Figure 5.
Figure 5. Typical Antenna with BUC and LNB
