iDirect Evolution 8000 Series Satellite Router Installation and Safety Manual 49
Console Port Pin Assignments

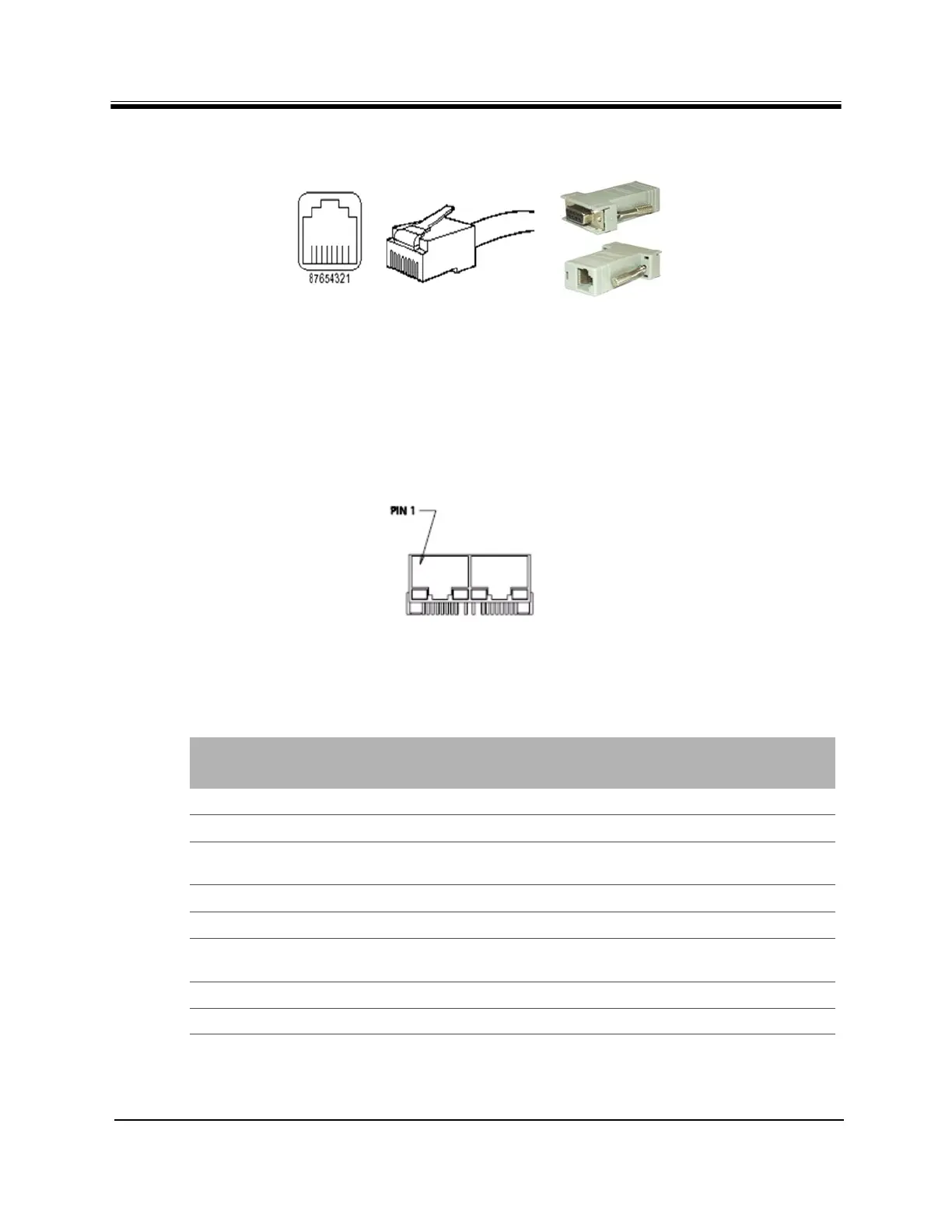

The RJ-45 to DB-9 DTE adapter and pin numbers is shown in Figure 25.
Figure 25. RJ-45 to DTE Adapter Pin Identification
5.4 Console Port Pin Assignments
This section describes the iCONNEX e800 Satellite Router console port pin assignments and
illustrates the pin numbering scheme.
The RJ-45 console pin numbering is shown in Figure 26 and described in Table 22.
Figure 26. Console Pin Numbers
Table 22. e800 iCONNEX Satellite Router Console Pin Assignments
PIN
RJ-45 to DB-9(F)
Terminal Adapter
SIGNAL NAME DESCRIPTION
1 8 Not Connected Do not connect
2 6 Reserved (Tx) Do not connect
32 Transmit Data
(TxD)
RS-232 voltage level compliant transmit data
signal for debug use only
4 NC Ground (GND) Ground
55 Ground (GND) Ground
6 3 Receive Data (RxD) RS-232 voltage level compliant receive data
signal for debug use only
7 4 Reserved (Rx) Do not connect
8 9 Not Connected Do not connect
