iDirect Evolution 8000 Series Satellite Router Installation and Safety Manual 33
Preparing the Coax Cables
A picture of the RJ-45 to DB-9 Female DTE adapter is shown in Figure 17.

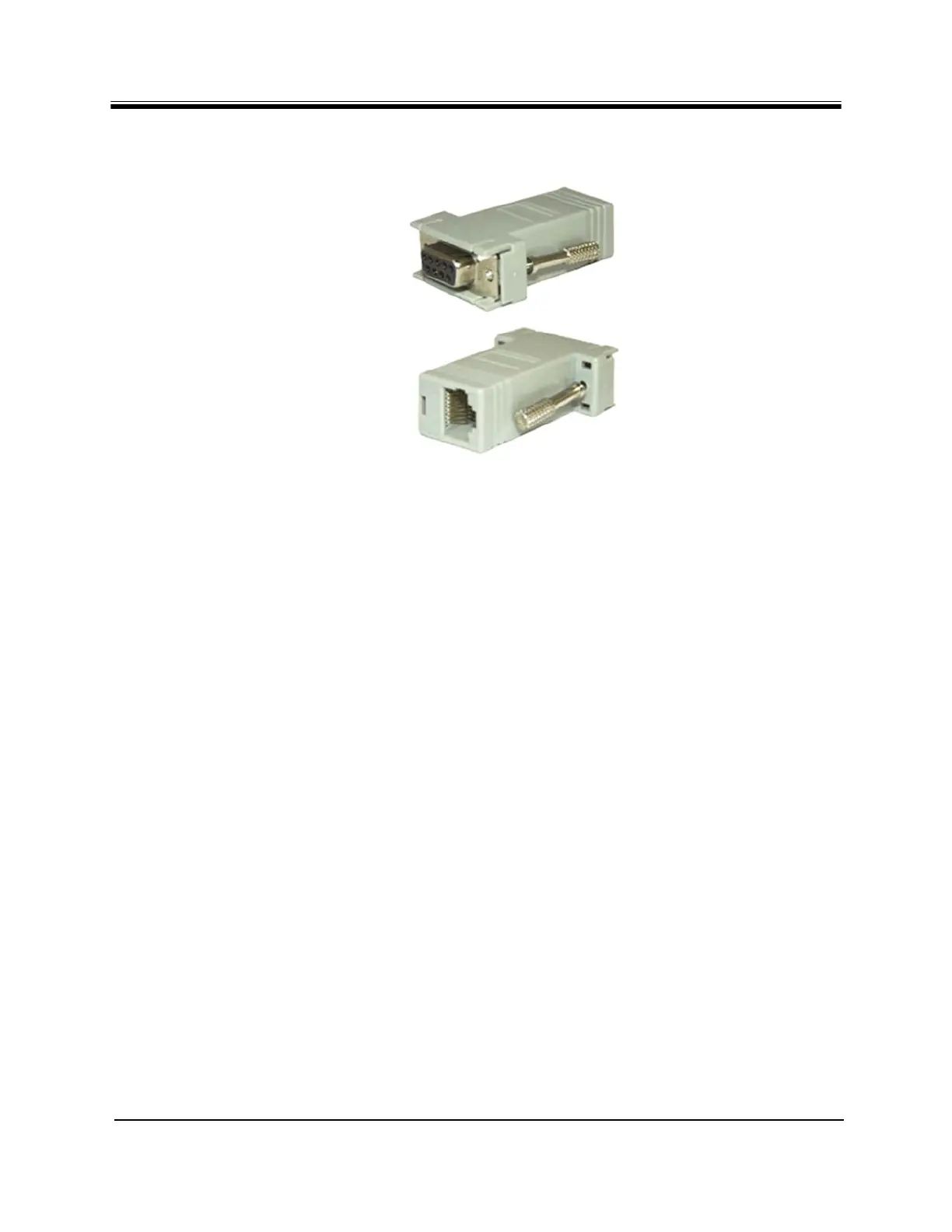

Figure 17. RJ-45 to DB-9 Female DTE Adapter
Note: For use with external GPS and NMEA 0183 protocol standard, use pins 5 and 6
of RJ-45 or pins 5 and 3 on DB-9 terminal adapter to interface with the serial
port of the GPS to obtain various GPS information.
