Mounting the X1 Outdoor Satellite Router to a Wall or to a Pole
The X1 Outdoor Satellite Router may be mounted to a wall or to a pole by using the GLBAC-
WALLMOU-SCC-M mounting kit. The kit includes:
• 1 mounting plate
• 2 stainless steel tie back straps
• 4 wood screws
• 4 wood/gyprock plugs (anchors)
• 4 M6x20 screws
• 4 flat washers for M6 screws
• 4 spring (lock) washers for the M6 screws
• 1 spacer

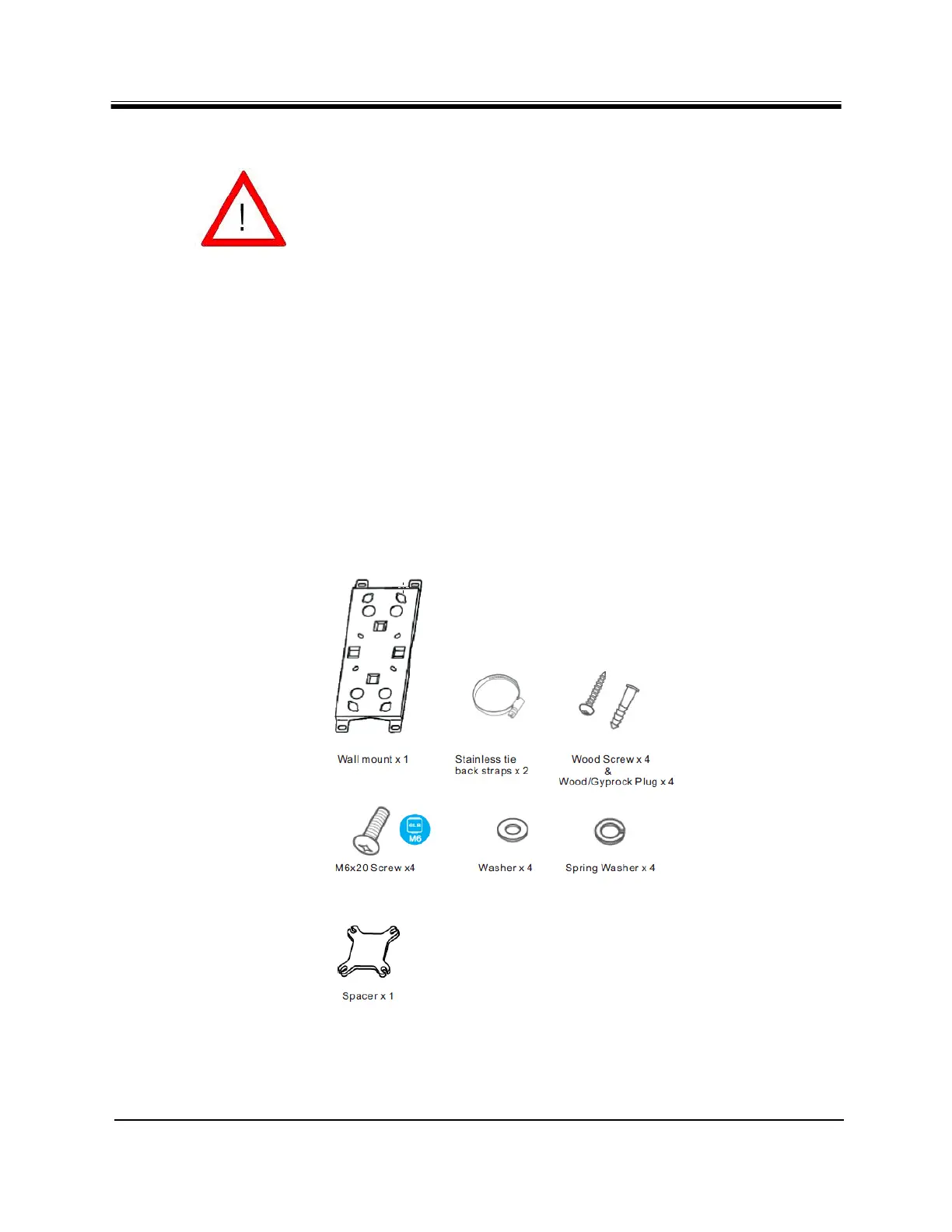

For easy identification, the mounting kit parts are shown in Figure 9.
Figure 9. Mounting Kit Parts
CAUTION
The X1 Outdoor Satellite Router and the Power
Module must be wall or pole mounted with the
cable and power connectors on the bottom of the
units, facing downward.
