iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual 27
Mounting the External Power Module to a Wall or Pole
Pole Mount
To mount the X1 Outdoor Satellite Router to a pole, mount the assembly to the pole using the

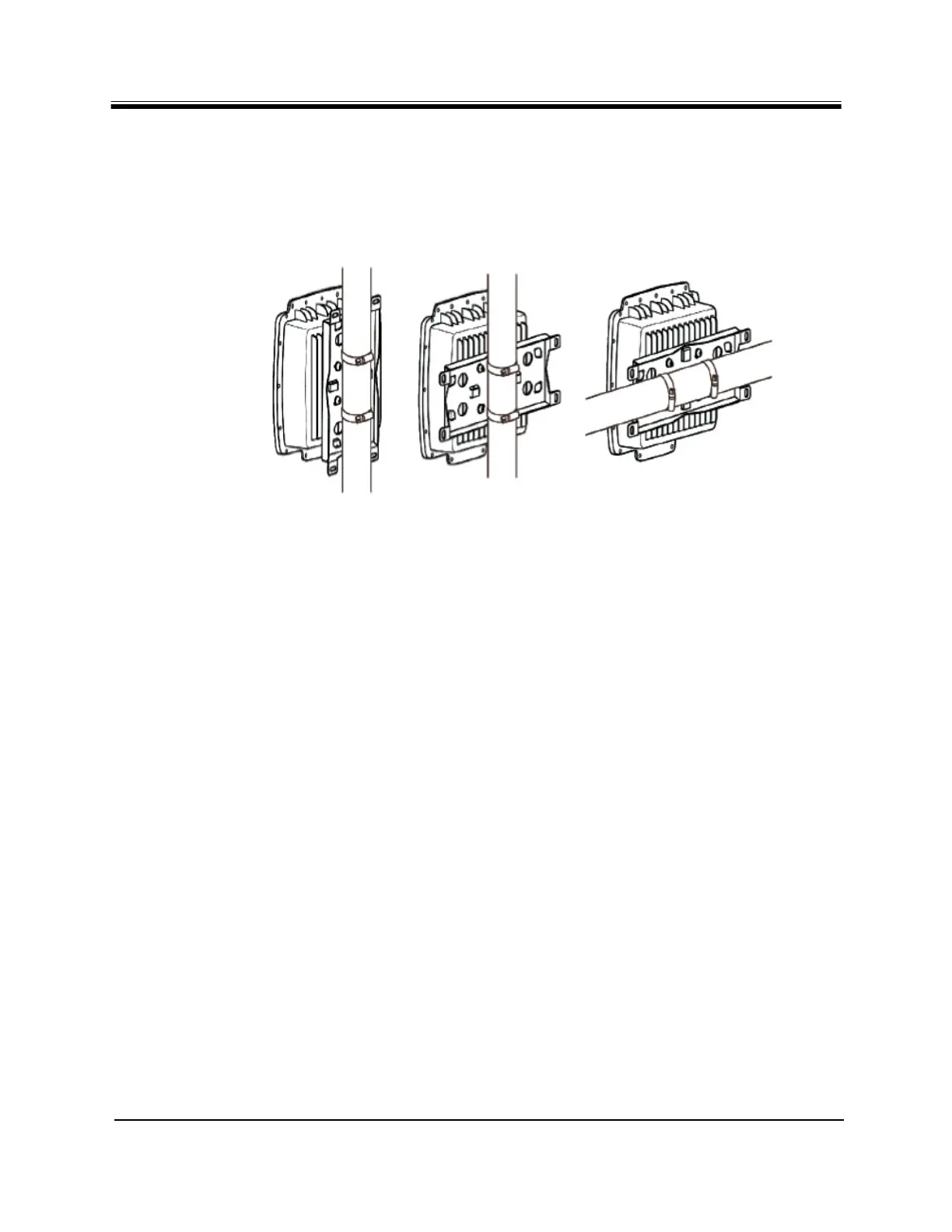

two stainless steel tie back straps as shown in Figure 12 (various mounting options are shown).
Figure 12. Satellite Router Pole Mount
5.7 Mounting the External Power Module to a Wall or
Pole
The Power Module may be mounted to a wall or to a pole by using the GTT-MNT-LP22
(GTT:GLBAC-WALLMOU-SCC) mounting kit, The kit includes:
• 1 mounting plate
• 2 stainless steel tie back straps
• 4 wood screws
• 4 wood/gyprock plugs (anchors)
• 4 M5x20 screws
• 4 flat washers for M5 screws
• 4 spring (lock) washers for M5 screws
• 1 spacer
