iDirect Evolution X1 - Figure 10. Attaching the Mounting Plate; Figure 11. Satellite Router Wall Mount

26 iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual
Mounting the X1 Outdoor Satellite Router to a Wall or to a Pole
Attaching the Mounting Plate
Attach the mounting plate and spacer using the four flat washers, spring washers, and M6x20
screws as shown in Figure 10 (horizontal and vertical mounting options are shown).

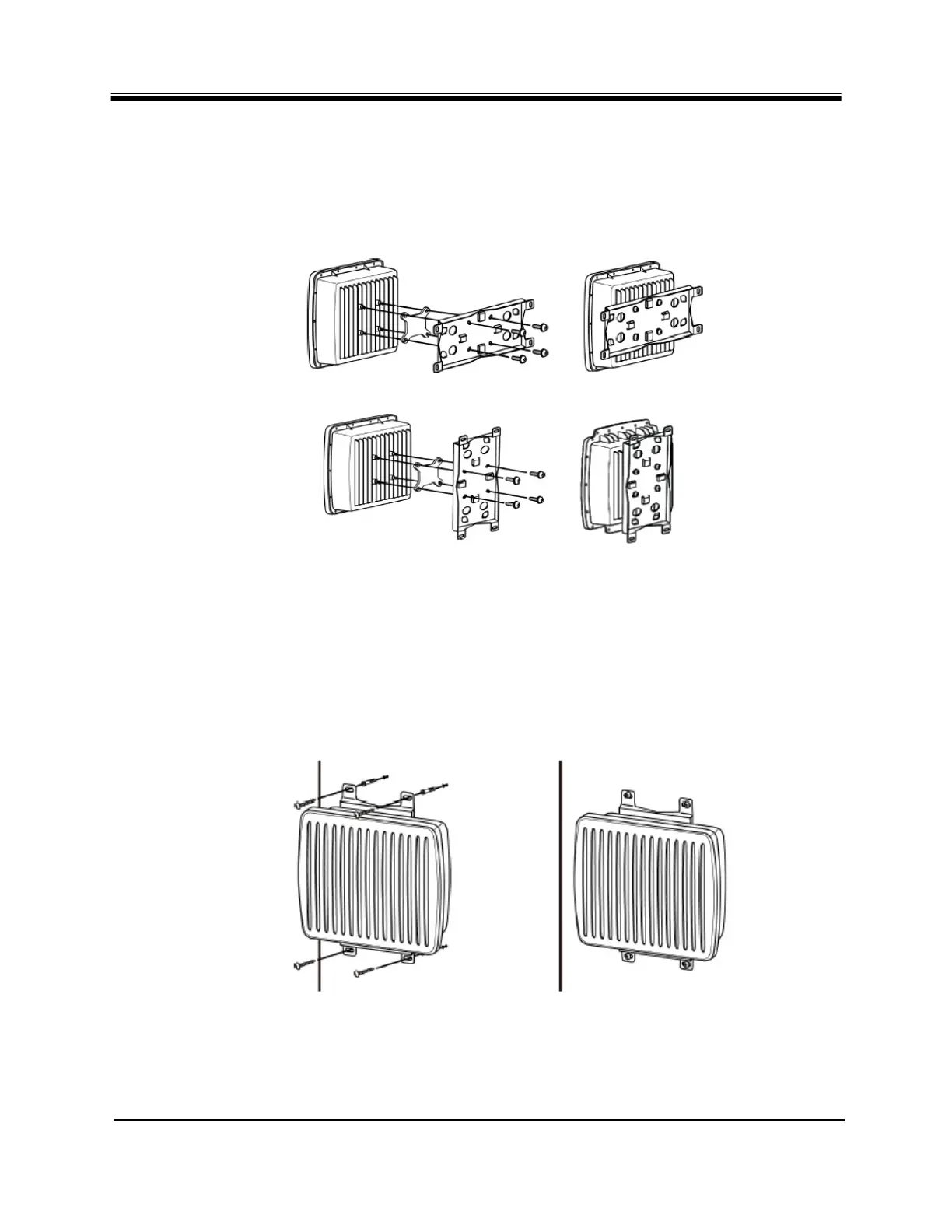

Figure 10. Attaching the Mounting Plate
Wall Mount
To mount the X1 Outdoor Satellite Router to a wall, mount the assembly to the wall using the
four wood screws and wood/gyprock plugs as shown in Figure 11.
Figure 11. Satellite Router Wall Mount
