Mounting the External Power Module to a Wall or Pole
Wall Mount

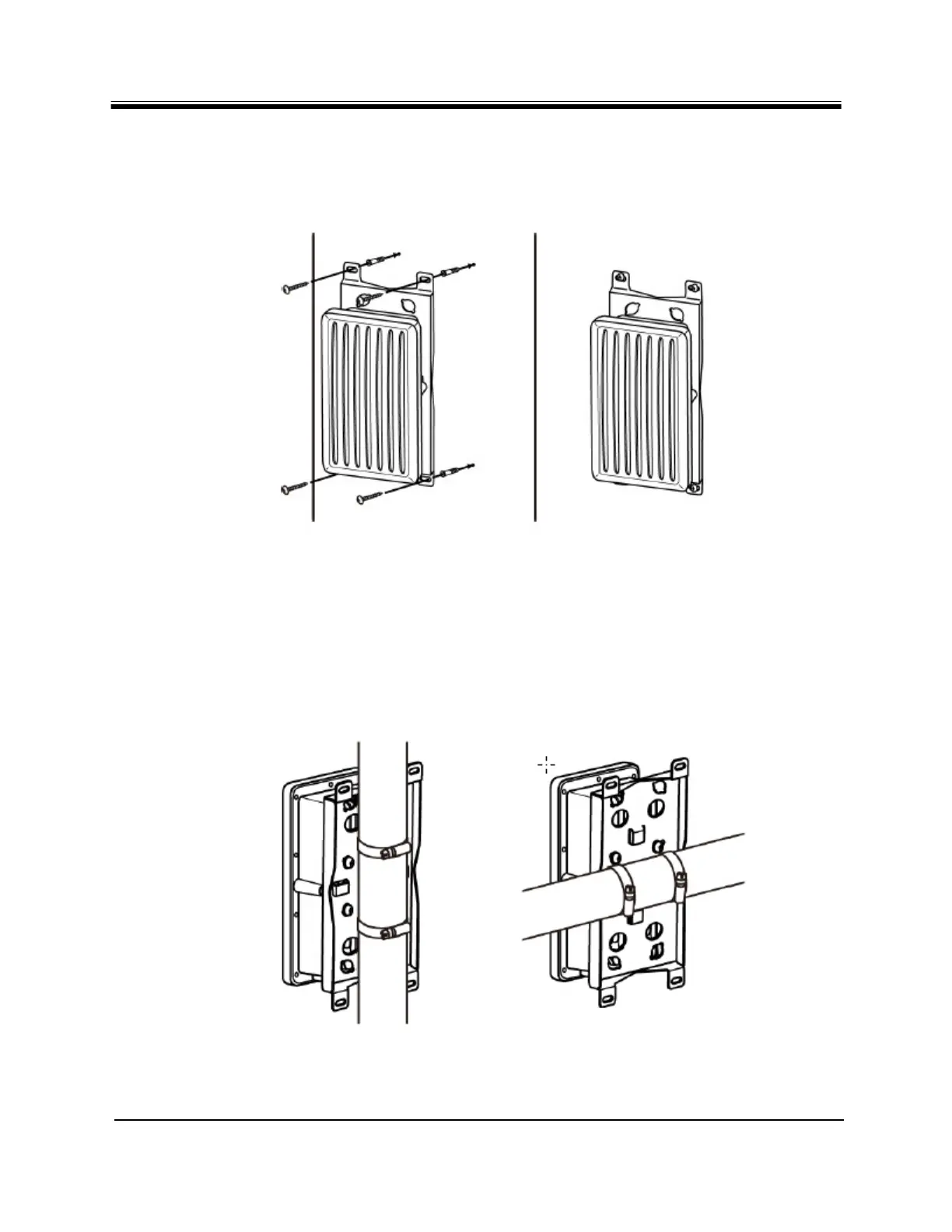

Mount the Power Module assembly to the wall as shown in Figure 14.
Figure 14. Power Module Wall Mount
Pole Mount
Mount the Power Module assembly to the pole as shown in Figure 15 (horizontal and vertical
mounting options are shown).
Figure 15. Power Module Pole Mount
