ifm Operating Instructions IO-Link Master with EtherNet/IP interface StandardLine 8 Ports IP 65 / IP 67 (AL1122) 2017-05-31
Configuration
>
Operation with EtherNet/IP connection (without LR DEVICE)
7396
Operation of the IO master as EtherNet/IP IO device. As an option, several IO-Link masters can be
coupled via the Ethernet interfaces X21 and X22. The complete monitoring of the process data and
processing of alarms takes place via EtherNet/IP mechanisms.
Parameter setting
 IO-Link master: EtherNet/IP projection software
 IO-Link device: EtherNet/IP projection software (acyclic services)
Monitoring:
EtherNet/IP projection software

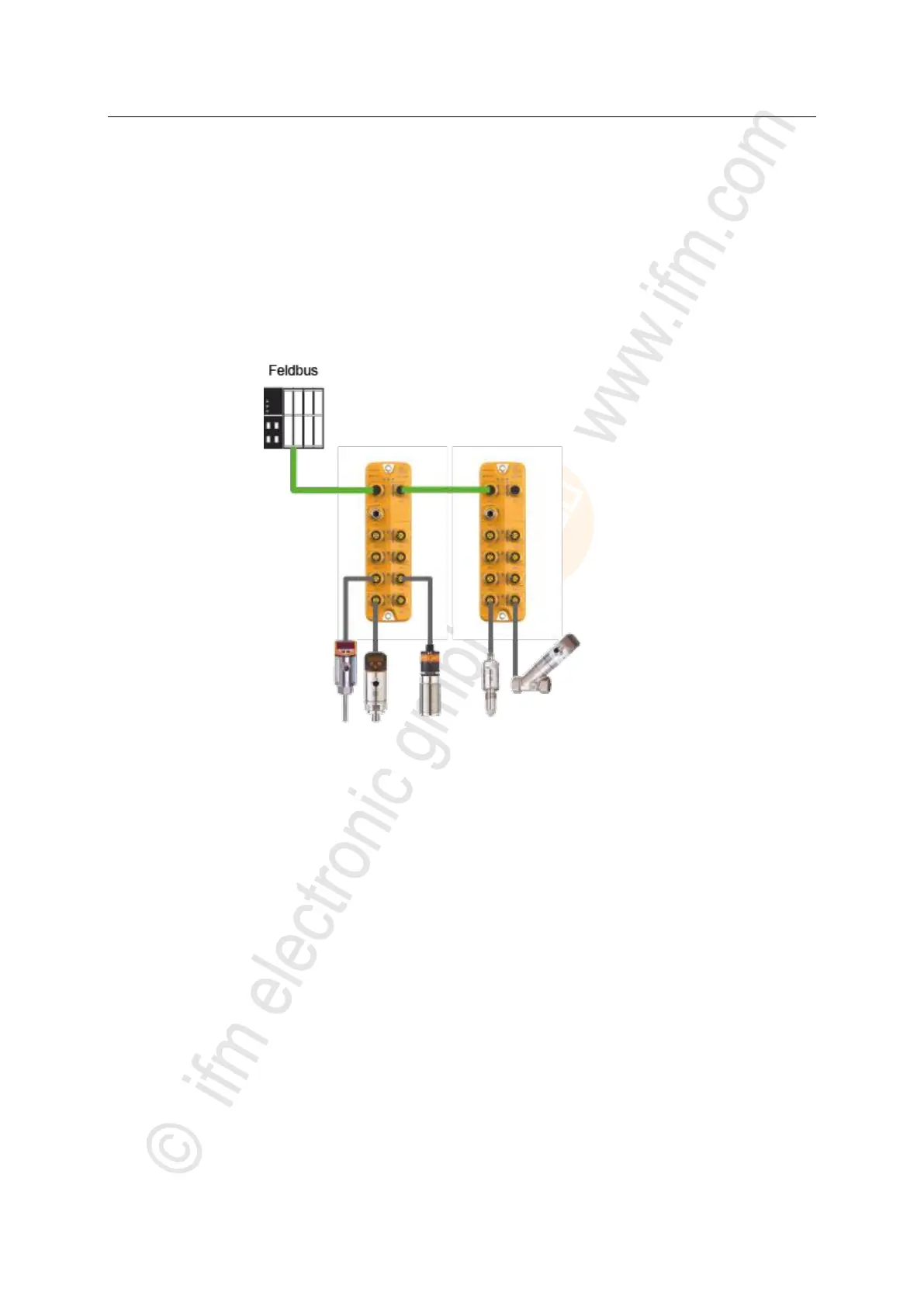

Topology (example):
