Configuration
>
Operation with EtherNet/IP connection and LR DEVICE/LR SmartObserver
7398
The AL1122 can be connected via the two Ethernet interfaces X21 and X22 simultaneously with the
EtherNet/IP control level (PLC) and the IT infrastructure level (monitoring/parameter setting).
Parameter setting
 IO-Link master: LR DEVICE and/or EtherNet/IP projection software
 IO-Link device: LR DEVICE and/or EtherNet/IP projection software
Monitoring:
LR SmartObserver and/or EtherNet/IP projection software

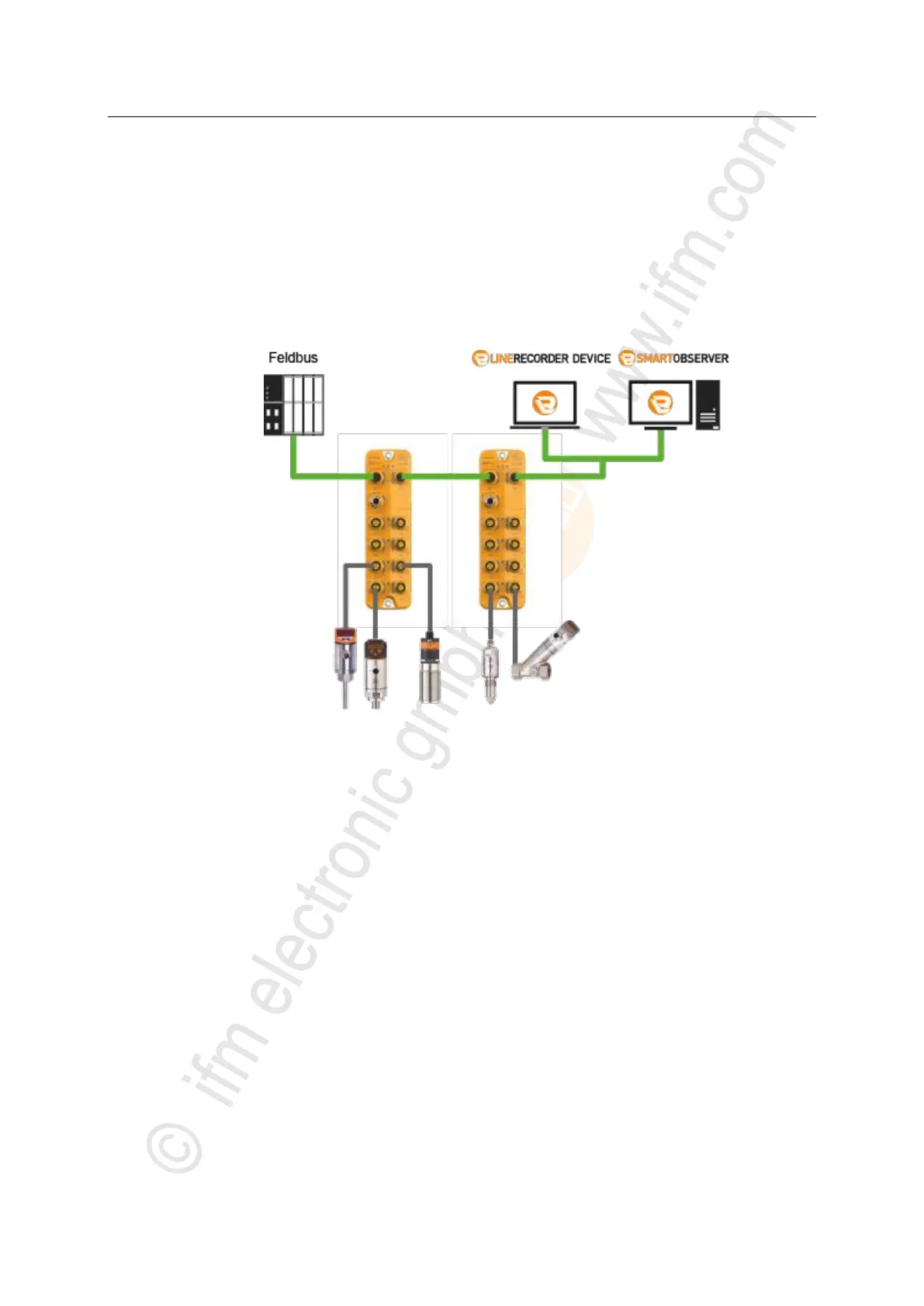

Topology (example):
