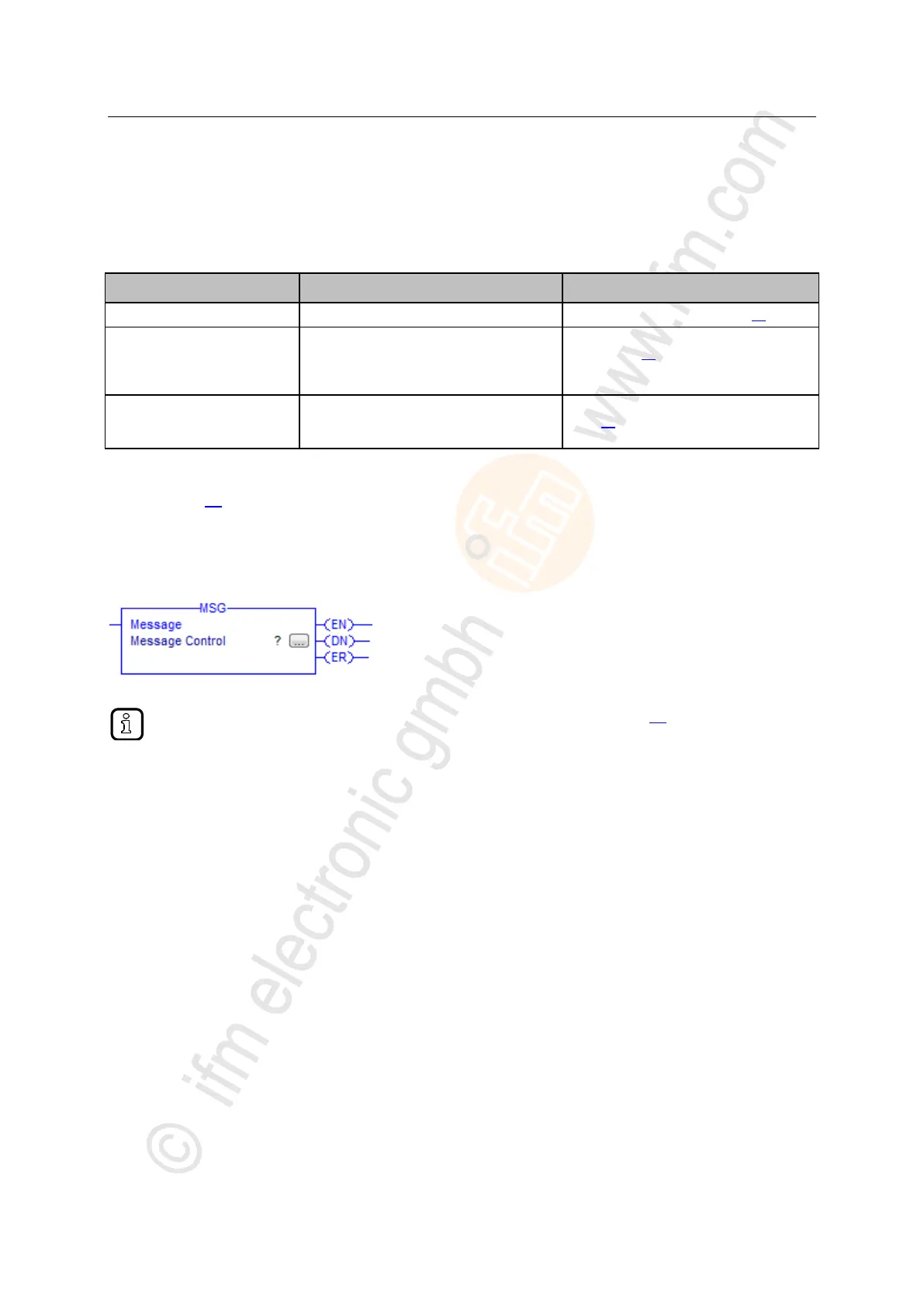

Configuration
>
Acyclic port commands
12063
For the acyclic access to the configuration of the IO-Link ports of the AL1122, the following commands
are available:
Set the operating type of the IO-Link port
→ Command 0x10 – set mode (→ p. 82)
Set Validation ID / Data Storage
Adjust the supported IO-Link standard and
the behaviour of the IO-Link master when
connecting a new IO-Link device to the
IO-Link port
→ Command 0x20 – set validation ID / data
storage (→ p. 84)
Set fail-safe data pattern
Behaviour of the outputs when the
EtherNet/IP connection is interrupted and
setting of the corresponding fail-safe values
→ Command 0x30 – set fail-safe data pattern
(→ p. 86)
The port commands use the same mechanisms as the acyclic command channel (→ Acyclic command
channel (→ p. 77)).
>
EtherNet/IP mechanisms for acyclic commands
7102
Acyclic commands can be executed with the EtherNet/IP command Message (MSG).
Parameters of the available field bus objects: → Field bus objects (→ p. 88)
For detailed information about the Message (MSG) command: → Operating instructions
RSLogix 5000
