WIRELESS NETWORKING
DMS3-CTC-25-115 v1.0
19
3
3.1 Connecting your wireless client via WPS
WPS
Wi-Fi Protected Setup (WPS) allows you to add new wireless clients to your local network in a swift and
easy way, without the need to enter any of your wireless settings (network name, wireless key, encryption
type).
Requirements
Your wireless client must support WPS. Check the documentation of your wireless client for this.
Your TG-1 Gateway must use WPA2 PSK encryption (default encryption), WPA+WPA2-PSK encryption,
WPA-PSK encryption or no encryption. WPS with WEP encryption is not possible.
The WPS function must be enabled on the TG-1 Gateway. This is the default setting.
Procedure for WPS Push Button Configuration (PBC)
Proceed as follows:

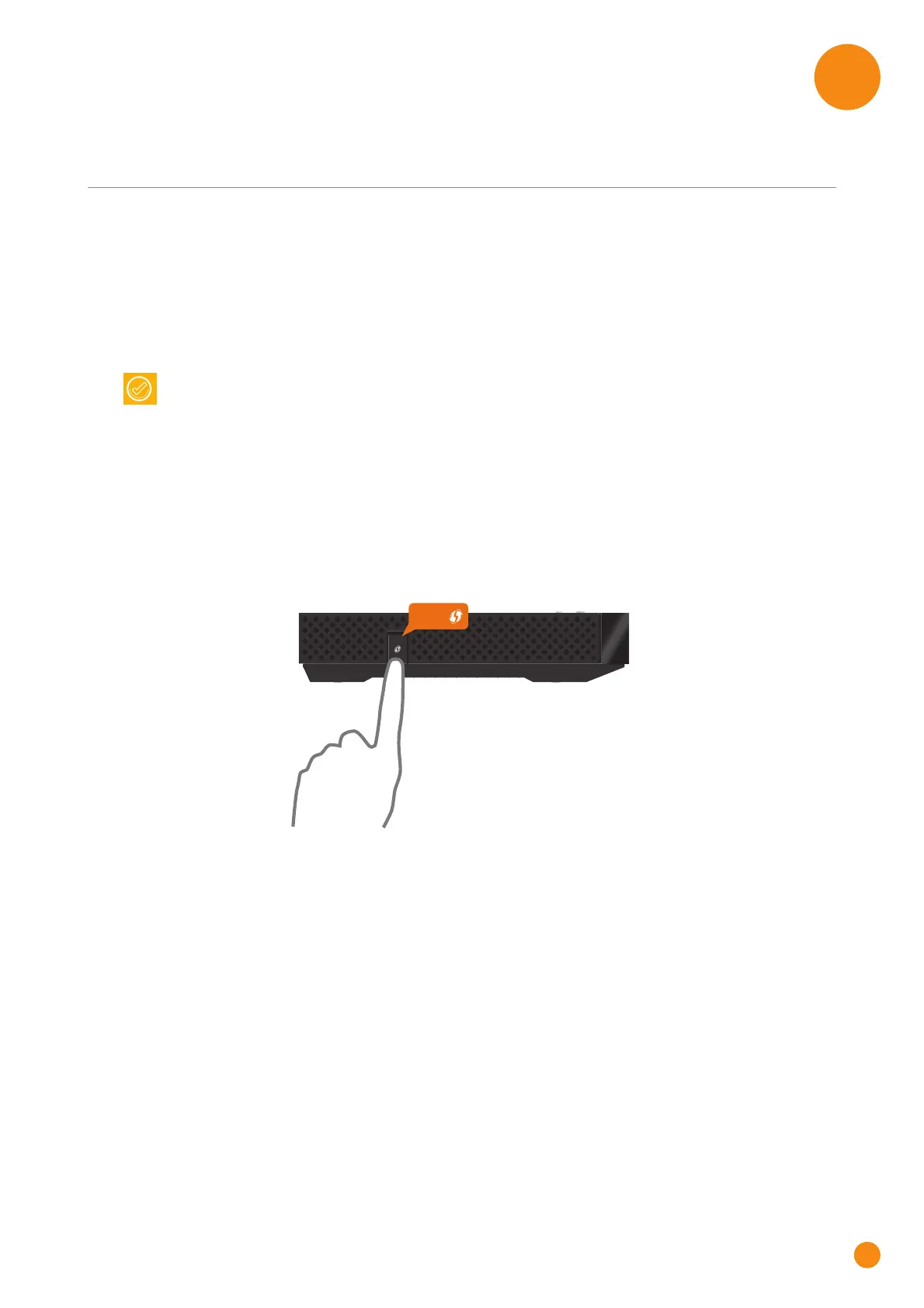

1 Shortly press the WPS button on the TG-1 Gateway:
2 The WPS LED starts blinking orange. This indicates that the TG-1 Gateway is now searching for wireless
clients that are in registration mode. You now have two minutes to start WPS on your wireless client.
3 Start WPS PBC on your wireless client.
4 The TG-1 Gateway is now exchanging all wireless settings.
5 At the end of the procedure the status of the WPS LED on your TG-1 Gateway will change to either of
the following:
Solid green
This indicates that you have successfully registered your wireless client. You are now connected to
the TG-1 Gateway wireless network.
Blinking red
This indicates that the TG-1 Gateway could not find your wireless client. Use the same procedure to
try again (you do not need to wait until the WPS LED on your TG-1 Gateway turns off).
Windows 8, Windows 7 and Windows Vista Service Pack 1 have native WPS support.
WPS
