32
BS-98 1409 VER1 (U) (E)
3.2 GENLOCK System
● When format conversion is performed
The following four patterns use 1080I/59.94 or 1080P/23.98 as a format of the camera head.
In addition, 1080P/23.98 is used as the output of the format conversion.

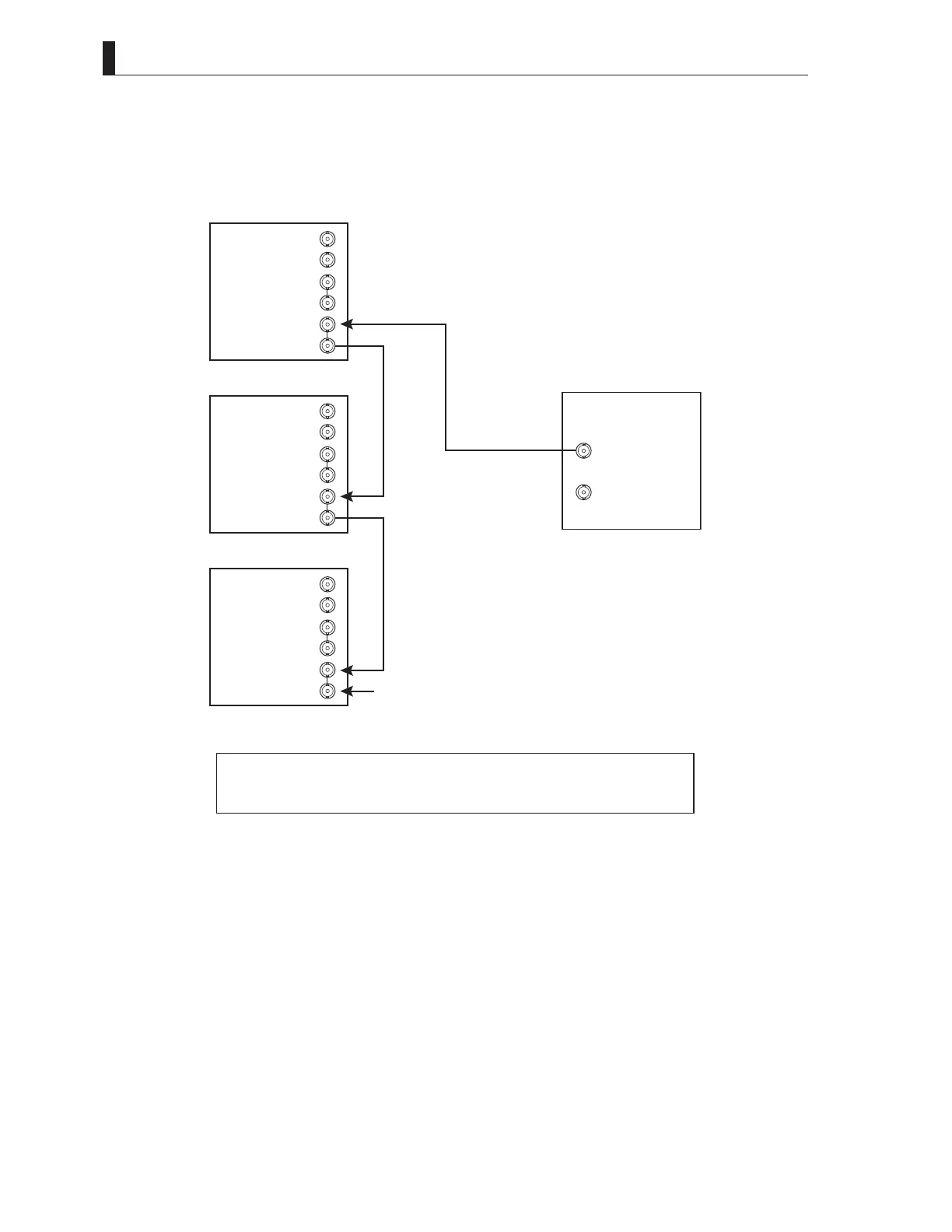

- Pattern 1
The case that NTSC BBS + 10 FIELD ID (SMPTE 318M-compliant) signals can be supplied from the signal generator
ＲＥＦ
SUBREF
ＳＹＮＣＯＵＴ
ＥＮＣＯＵＴ
ＲＥＦ
SUBREF
ＳＹＮＣＯＵＴ
ＥＮＣＯＵＴ
75Ωtermination
Signalgenerator
ＲＥＦ
SUBREF
ＳＹＮＣＯＵＴ
ＥＮＣＯＵＴ
Ａ
Ｂ
CCUorBS#1
CCUorBS#2
CCUorBS#3
Condition of signals output by the signal generator in this case
A: NTSC BBS + 10 FIELD ID (SMPTE 318M-compliant)
