3.2 GENLOCK System

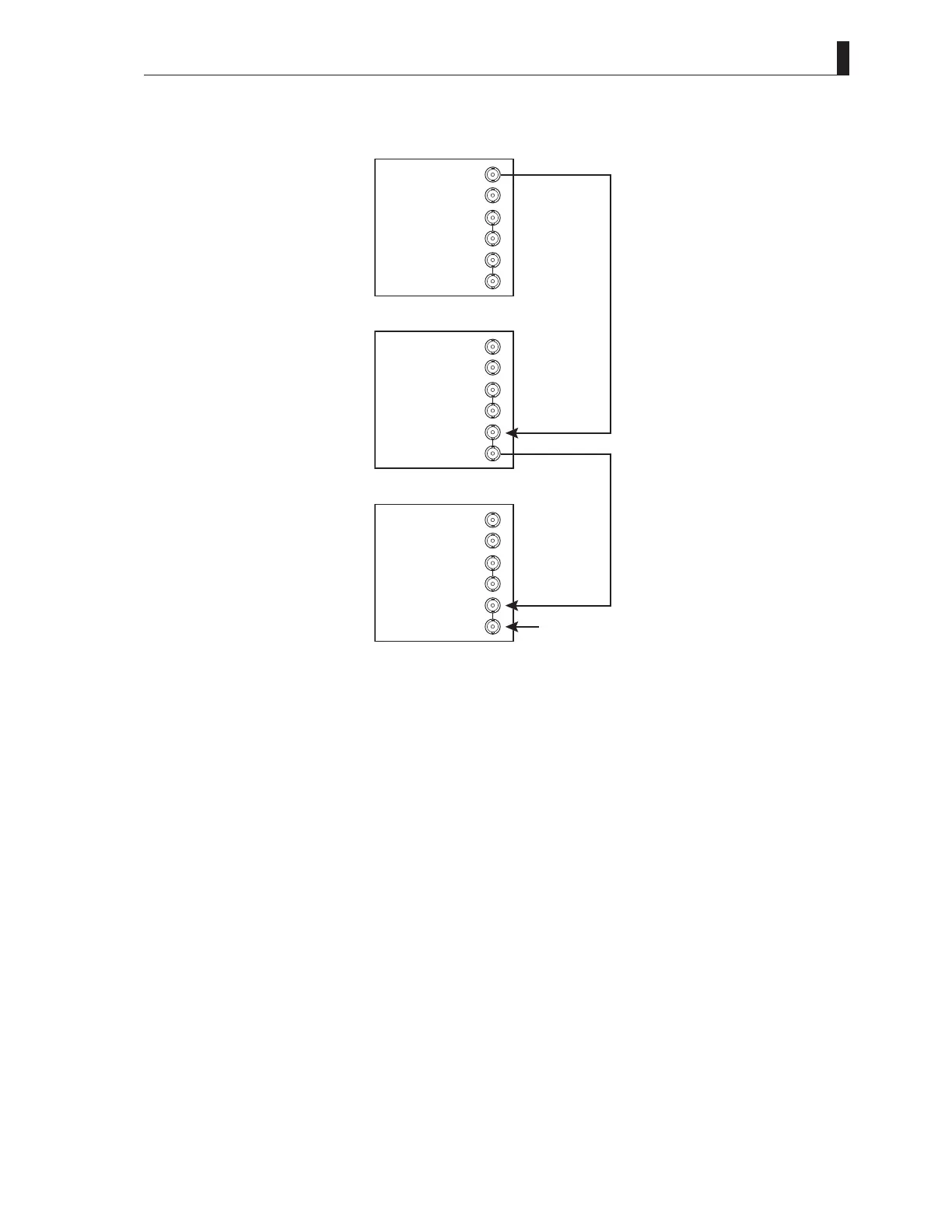

- Pattern 2
One of BSs is placed as master when the signal generator is not used.
ＲＥＦ
SUBREF
ＳＹＮＣＯＵＴ
ＥＮＣＯＵＴ
(*)
ＲＥＦ
SUBREF
ＳＹＮＣＯＵＴ
ＥＮＣＯＵＴ
ＲＥＦ
SUBREF
ＳＹＮＣＯＵＴ
ＥＮＣＯＵＴ
75Ωtermination
CCUorBS#1(master)
CCUorBS#2(slave)
CCUorBS#3(slave)
* In that case, add 10 FIELD ID signal (SMPTE 318M compatible) to the ENC signal output of the master equipment.
[Setting]
SD-10 FIELD ID SIG" item under "OUTPUT FORMAT" of "ENGINEER (1/2)" in the CCU/BS menu to ON.
