4.2 Power Supply
■
To Control Power ON/OFF from OCP (Remote Control)
This section describes an example of a case of using the OCP-200.
1 Set the [BS MAIN POWER switch] on the front of the BS to "ON".
2 Set the [CAM POWER switch] on the OCP to "ON".
Power is supplied to the camera head.

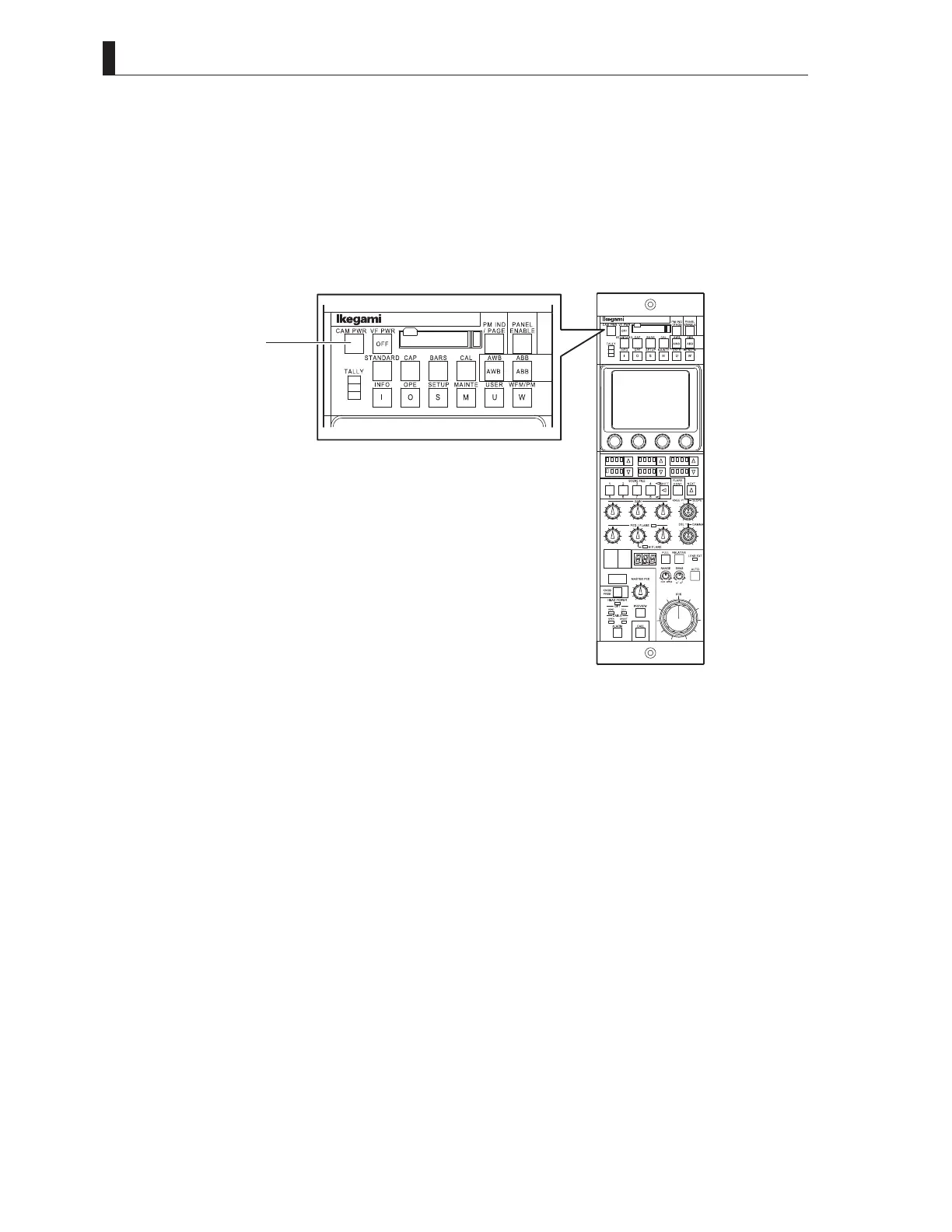

OCP-200
OCP-200
OCP-200
CAMPWR
switch
Note:
When the CAM POWER switch on the OCP is turned "ON/OFF", only power supply to the camera head is turned "ON/OFF".
The BS main power is not controlled.
