4.6 External Connections
■

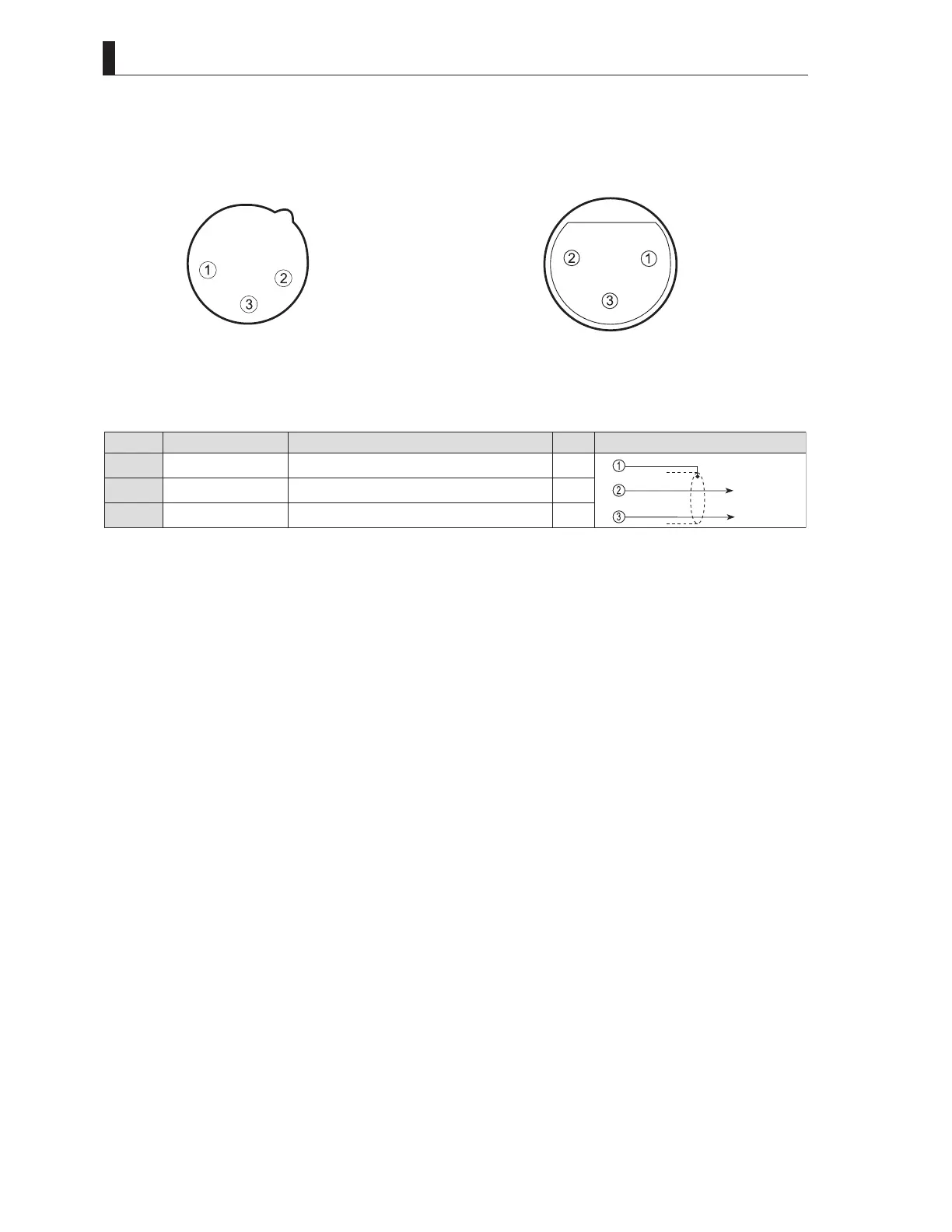

MIC-1 OUT Connector and MIC-2 OUT Connector
This is an output connector for the analog audio signal that is input from the camera head.
AUDIOLINESHIELDSHIELD
AUDIOLINEHOT
GND
OUTMIC(H)
AUDIOLINECOLD OUTMIC(C)
PinNo. Name Function I/O ExternalInterface
InsertionSide InsertionSide
―Malereceptacle― ―Femalereceptacle―
BSside :HA16RM-3PE(76)
Cableside:XLR-3-11C(3-pinfemaleplug)orequivalent
BSside :HA16PRM-3SE(71)
Cableside:XLR-3-12C(3-pinmaleplug)orequivalent
○
○
○
1
2
3
