ILX Lightwave LDC-3700 Series User Manual

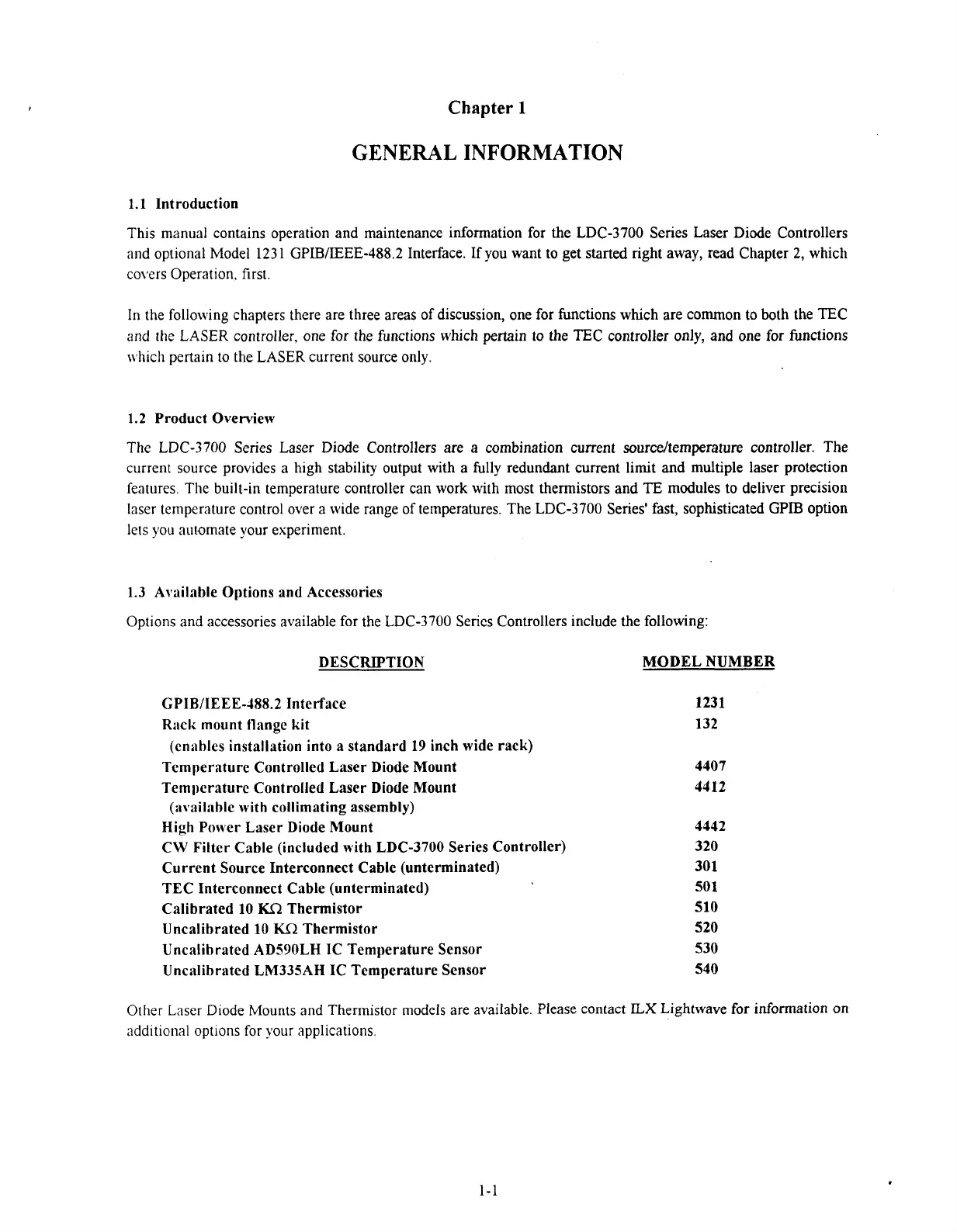

Chapter 1
GENERAL INFORMATION
1.1 Introduction
This manual contains operation and maintenance information for the LDC-3700 Series Laser Diode Controllers
and optional Model 1231 GPIBAEEE-488.2 Interface. If you
want to get started right away, read Chapter 2, which
co1,ers Operation, first.
In the following chapters there are three areas of discussion, one for functions which are common to both the TEC
and the LASER controller, one for the functions which pertain to the TEC controller only, and one for functions
which pertain to the LASER current source only.
1.2 Product Overview
The LDC-3700 Series Laser Diode Controllers are a combination current source/temperature controller.
The
current source provides a high stability output with a fully redundant current limit and multiple laser protection
features. The built-in temperature controller can work with most thermistors and
TE modules to deliver precision
laser temperature control over a wide range of temperatures. The LDC-3700 Series' fast, sophisticated
GPIB option
lets you automate your experiment.
1.3 Available Options and Accessories
Options and accessories available for the LDC-3700 Series Controllers include the following:
DESCRIPTION MODEL NUMBER
CPIBIIEEE-488.2 Interface
Ri~ck mount tlange kit
(enables installation into a standard 19 inch wide rack)
Temperature Controlled Laser Diode Mount
Temperature Controlled Laser Diode Mount
(available with collimating assembly)
High Power Laser Diode Mount
CW Filter Cable (included with LDC-3700 Series Controller)
Current Source Interconnect Cable (unterminated)
TEC Interconnect Cable (unterminated)
Calibrated
10 Kn Thermistor
Uncalibrated 10
KR Thermistor
Uncalibrated
AD590LH IC Temperature Sensor
Uncalibrated LM335AH IC Temperature Sensor
Other Laser Diode Mounts
and Thermistor models are available. Please contact ILX Lightwave for information on
additional options for your applications.
