ILX Lightwave LDC-3700 Series User Manual

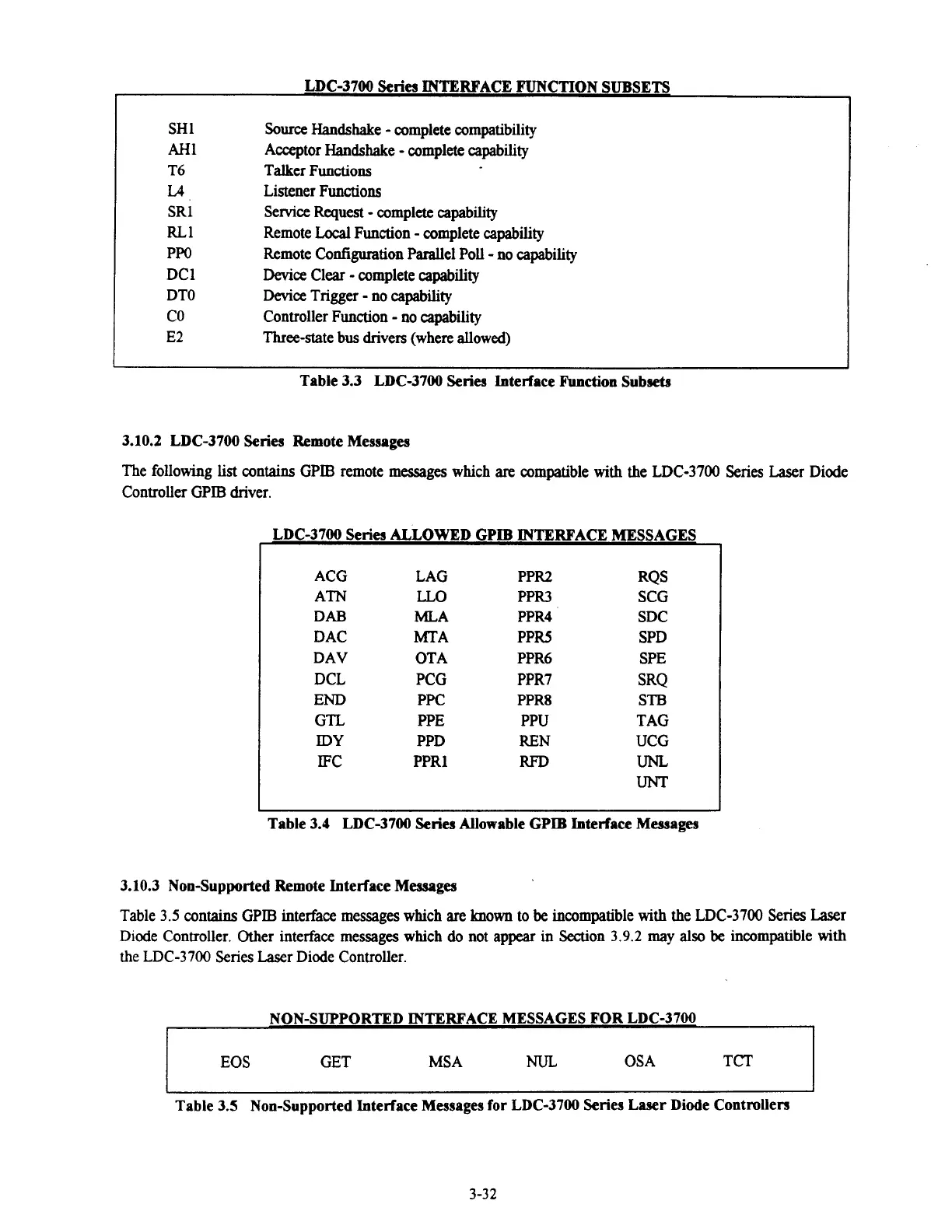

LDC-3700 Series INTERFACE FUNCTION SUBSETS
I
SHl
AH1
T6
L4
SR1
RL 1
PPO
DC 1
DTO
co
E2
Source Handshake - complete compatibility
Acceptor Handshake
- complete capability
Talker Functions
Listener Functions
Service Request - complete capability
Remote
Local Function - complete capability
Remote Configuration Parallel Poll
- no capability
Device Clear - complete capability
Device Trigger - no capability
Controller Function
- no capability
Threestate bus drivers (where allowed)
Table 3.3 LDC-3700 Series Interface Function Sub-
3.10.2 LDC-3700 Series Remote Messages
The following list contains GPIB remote messages which are compatible with the LDC-3700 Series Laser Diode
Controller GPIB driver.
LDC-3700 Series ALLOWED GPIB INTERFACE MESSAGES
ACG
ATN
DAB
DAC
DAV
DCL
END
GTL
IDY
IFC
LAG
LLO
MLA
MTA
OTA
PCG
PPC
PPE
PPD
PPRl
PPR2
PPR3
PPR4
PPRS
PPR6
PPR7
PPRS
PPU
REN
RFD
RQS
SCG
SDC
SPD
SPE
SRQ
STB
TAG
UCG
UNL
UNT
Table 3.4 LDC-3700 Series Allowable GPIB Interface Messages
3.10.3 Non-Supported Remote Interface Messages
Table 3.5 contains GPIB interface messages which are known to be incompatible with the LDC-3700 Series Laser
Diode Controller. Other interface messages which do not appear in Section
3.9.2 may also be incompatible with
the LDC-3700 Series Laser Diode Controller.
NON-SUPPORTED INTERFACE MESSAGES FOR LDC-3700
I
I EOS GET MS A NUL OSA
T(JT I
Table 3.5 Non-Supported Interface Messages for LDC-3700 Series Laser Diode Controllen
3-32
