TEC
Output
Off
Register
TEC Output
Off
Enable
Register
TU~
output
m
TEC:ENABle:OUTOFF
<nrb
TEC:ENABle:OUTOFF?
Bit Reference
0-
TEC Current Limit
1
-
TEC Voltage Limit
2-
N/A
3-
High Temperature Limit
4-
N/A
5- Booster Changed (while output on) Eve.
6-
Sensor Open (while output on) Cond.
7-
TEC Module Open (output on) Cond.
8-
Sensor Type Change (while output on)
Eve.
9-
Outside of
TEC
Tolerance
Cond.
10- Sensor Shorted (while output on) Cond.
11-
N/A
12- Software Error Cond.
13-
N/A
14-
N/A
15-
N/A

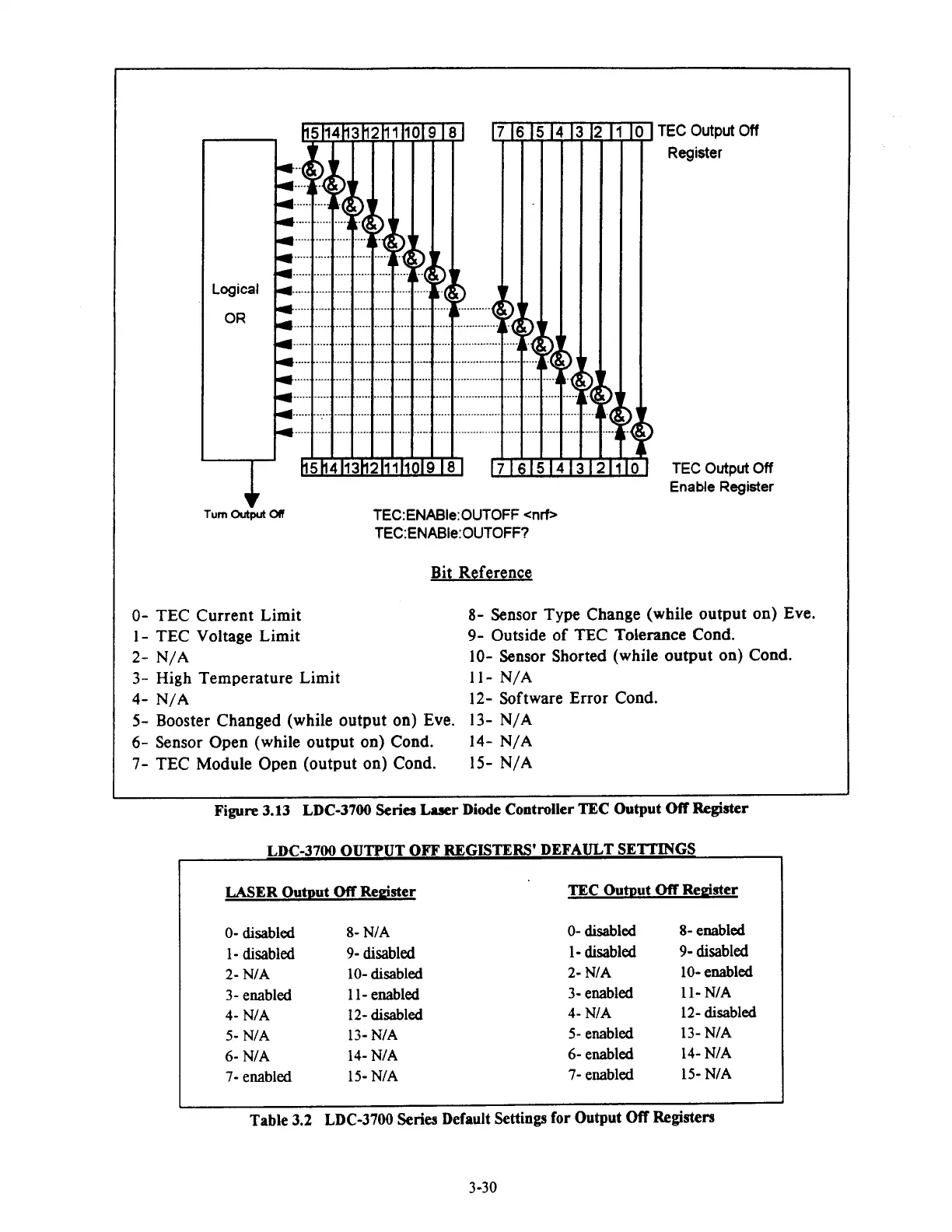

Figure 3.13 LDC-3700
Series
Laser
Diode Controller TEC Output
W
Register
LDC-3700 OUTPUT OFF REGLSTERS' DEFAULT SETTINGS
LASER Out~ut
Off
Redster
TEC Out~ut
Off
Redster
0- disabled
1- disabled
2-
NIA
3- enabled
4-
NIA
5-
NIA
6-
NIA
7-
enabled
8-
NIA
9- disabled
10- disabled
11- enabled
12- disabled
13-
NIA
14- NIA
15- NIA
0- disabled
1
-
disabled
2- NIA
3- enabled
4-
NIA
5-
enabled
6-
enabled
7- enabled
8-
enabled
9- disabled
10- enabled
11- NIA
12- disabled
13-
N/A
14- NIA
15- NIA
Table
3.2 LDC-3700
Series
Default
Settings
for
Output Off
Registers
