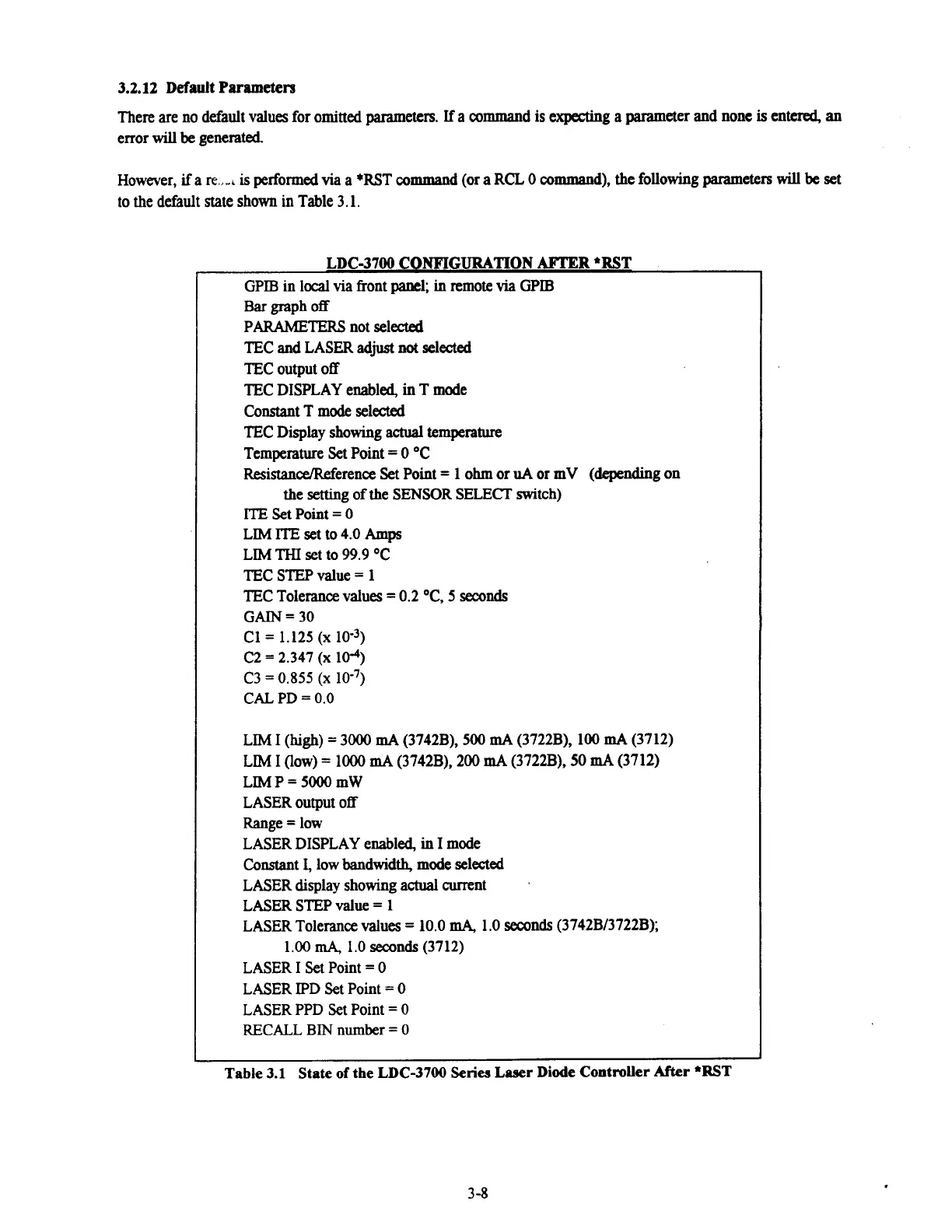

3.2.12 Default Parameters
There are no default values for omitted parameters. If a command is expecthg a parameter and none is entered, an
error will be generated
Howewer,
if a re, is performed via a *RST command (or a RCL 0 command), the following parametem will be set
to the
default state shown in Table 3.1.
LDC-3700 CONFIGURATION ABTlER *RST
GPIB in local via front panel; in remote via GPIB
Bar graph off
PARAMETERS not selected
TEC
and LASER adjust not selected
TEC output off
TEC DISPLAY enabled, in T mode
Constant T mode selected
TEC Display showing
actual temperature
Temperature Set Point
= 0 OC
Resistance/Reference Set Point
= 1 ohm or uA or mV (depending on
the
setting of the SENSOR SELECT switch)
ITE Set Point = 0
LIM
ITE set to 4.0 Amps
LIM THI set to 99.9 OC
TEC STEP value
= 1
TEC Tolerance values
= 0.2 OC, 5 seconds
GAIN = 30
C1= 1.125
(x 10'~)
C2
= 2.347 (x 10"')
C3
= 0.855 (x 10.~)
CAL PD
= 0.0
LIM
I (high) = 3000 mA (3742B), 500 mA (3722B), 100 mA (3712)
LIM
I (low) = 1000 mA (3742B). 200 mA (3722B), 50 mA (3712)
LIMP=5000mW
LASER output off
Range
= low
LASER DISPLAY enabled, in
I mode
Constant
I, low bandwidth, mode selected
LASER display showing
actual current
.
LASER STEP value = 1
LASER Tolerance
values = 10.0 mA, 1.0 seconds (3742Bl3722B);
1.00
mA, 1.0 seconds (3712)
LASER
I Set Point = 0
LASER IPD Set Point
= 0
LASER PPD Set Point
= 0
RECALL
BIN number = 0
Table 3.1 State of the LDC-3700 Series Laser Diode Controller After *RST
