ILX Lightwave LDC-3700 Series User Manual

3.00
THERMISTOR
VOLTAGE
-60 -40 -20 0 20 40 60 80 100
DEGREES C
- Denotes practical range with typical 10K thermistor
ILX default values for C1, C2, and C3
- Denotes measurable range with typical 10K thermistor

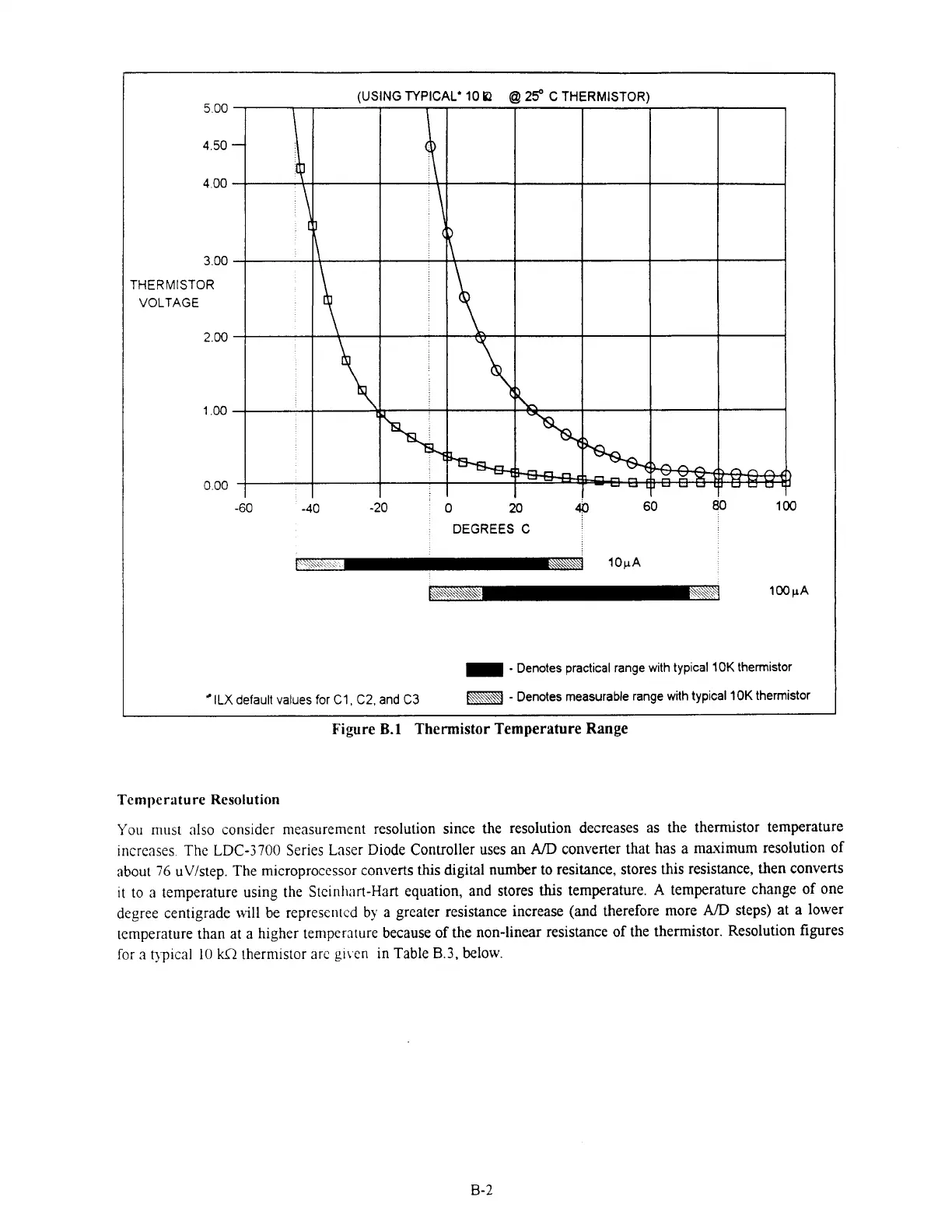

Figure B.l Thermistor Temperature Range
Temperature Resolution
You must also consider measurement resolution since the resolution decreases as the thermistor temperature
increases. The LDC-3700 Series Laser Diode Controller uses an
AD converter that has a maximum resolution of
about
76 uvlstep. The microprocessor converts this digital number to resitance, stores this resistance, then converts
it to a temperature using the Steinhan-Hart equation, and stores this temperature. A temperature change of one
degree centigrade will be
represented by a greater resistance increase (and therefore more AID steps) at a lower
temperature than at a higher temperature because of the non-linear resistance of the thermistor. Resolution figures
for a h.pical 10 kn thermistor are glwn in Table B.3, below.
