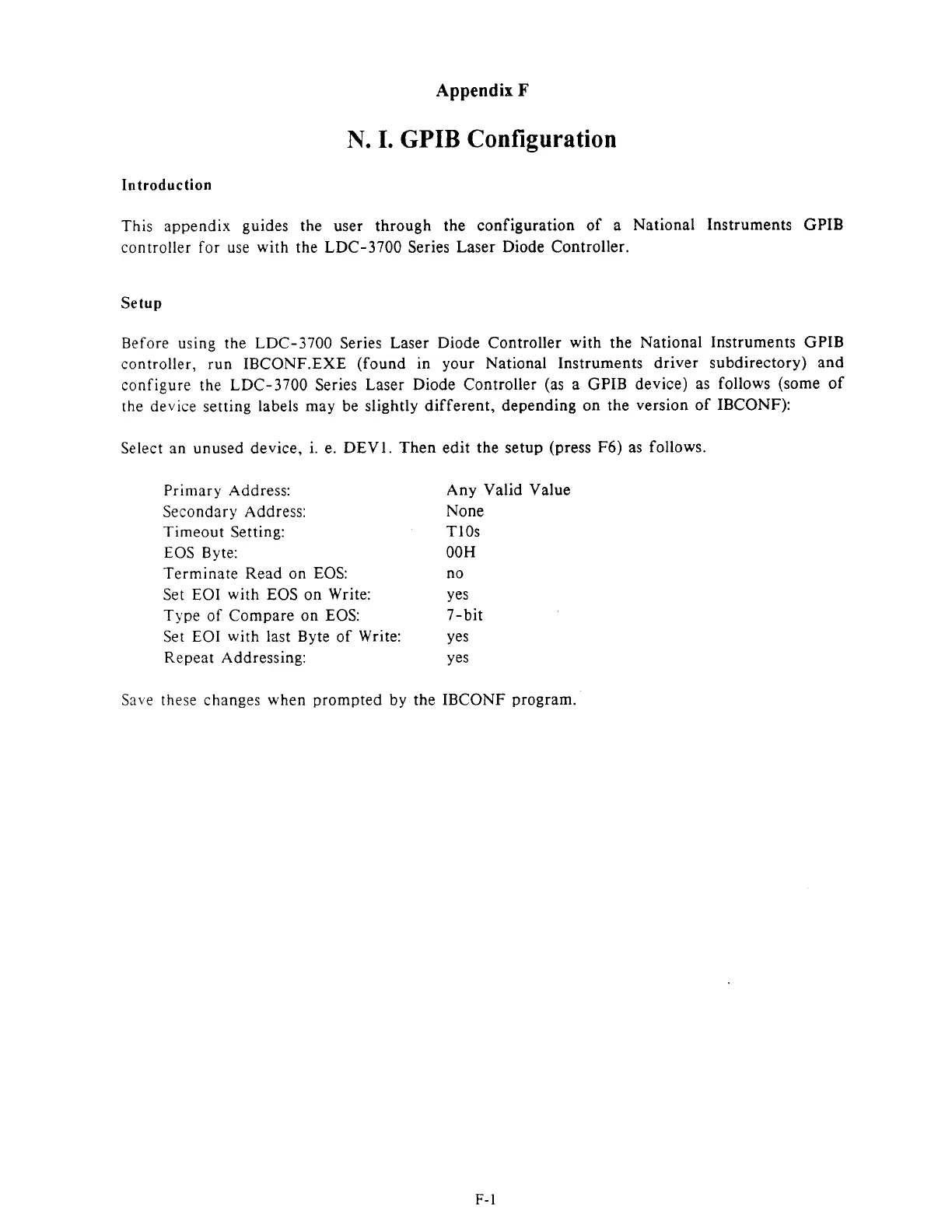

ILX Lightwave LDC-3700 Series User Manual

Appendix F
N. I. GPIB Configuration
Introduction
This appendix guides the user through the configuration of a National Instruments
GPIB
controller for use with the LDC-3700 Series Laser Diode Controller.
Setup
Before using the LDC-3700 Series Laser Diode Controller with the National Instruments GPIB
controller, run 1BCONF.EXE (found in your National Instruments driver subdirectory) and
configure the LDC-3700 Series Laser Diode Controller (as a GPIB device) as follows (some of
the device setting labels may be slightly different, depending on the version of IBCONF):
Select an unused device, i. e. DEVI. Then edit the setup (press
F6) as follows.
Primary Address:
Secondary Address:
Timeout Setting:
EOS Byte:
Terminate Read on EOS:
Set
€01 with EOS on Write:
Type of Compare on EOS:
Set
€01 with last Byte of Write:
Repeat Addressing:
Any Valid Value
None
TlOs
OOH
no
Yes
7-bit
Yes
Yes
Save these changes when prompted by the IBCONF program.
