ILX Lightwave LDC-3700 Series User Manual

LDC-3700 Series DEVICE-DEPENDENT COMMANDS (CONT.1
NAME
TEC: SEN?
TEC:SET:nE?
TEC:SET:R?
TEC:SET:T?
TEC: STEP
TEC: STEP?
TEC:T
TEC:T?
TERM
TERM?
TIME?
NUMBER OF FUNCTION
PARAMETERS
EXPECTED
1
NONE
NONE
NONE
NONE
NONE
1
NONE
1
NONE
NONE
1
NONE
NONE
NONE
Sets the constant R (resistance/reference) set point.
Returns the measured R (resistandreference) value (measured
about every
400 mSec).
Returns the position of the SENSOR SELECT switch.
Returns the constant
ITE (TEC current) set point.
Returns the constant
R (resistandreference) set point.
Returns the constant
T (temperature) set point.
Used to set the TEC step value for use with DEC or INC
commands. Defaults to a
step of 1, 1 step equals 0. 1°C,
1 rnA (ITE), 1 ohm, 0.1 mV, or 0.01 uA (AD590). Range
is 1
- 9999 steps.
Returns the value of the TEC step.
Used to set the TEC constant T (temperature) set point.
Returns the
TEC measured temperature value (measured about
every
400 mSec.).
Used to set the TEC set point tolerance value and time period
value for validation, i.e. used to determine if a set point
has been reached - must be within tolerance for the time
period.
Used to return the TEC set point tolerance value and time
period value for validation, i.e.
used to determine if a set
point
has been reached -must be within tolerance for the
time
period.
Sets the program message terminator.
Returns the value of the program message terminator.
Returns the elapsed time since the
LDC-3700 Series Laser
Diode Controller
was last powered up.
Returns the elapsed time since the timer
was last reset.
-p-ppp

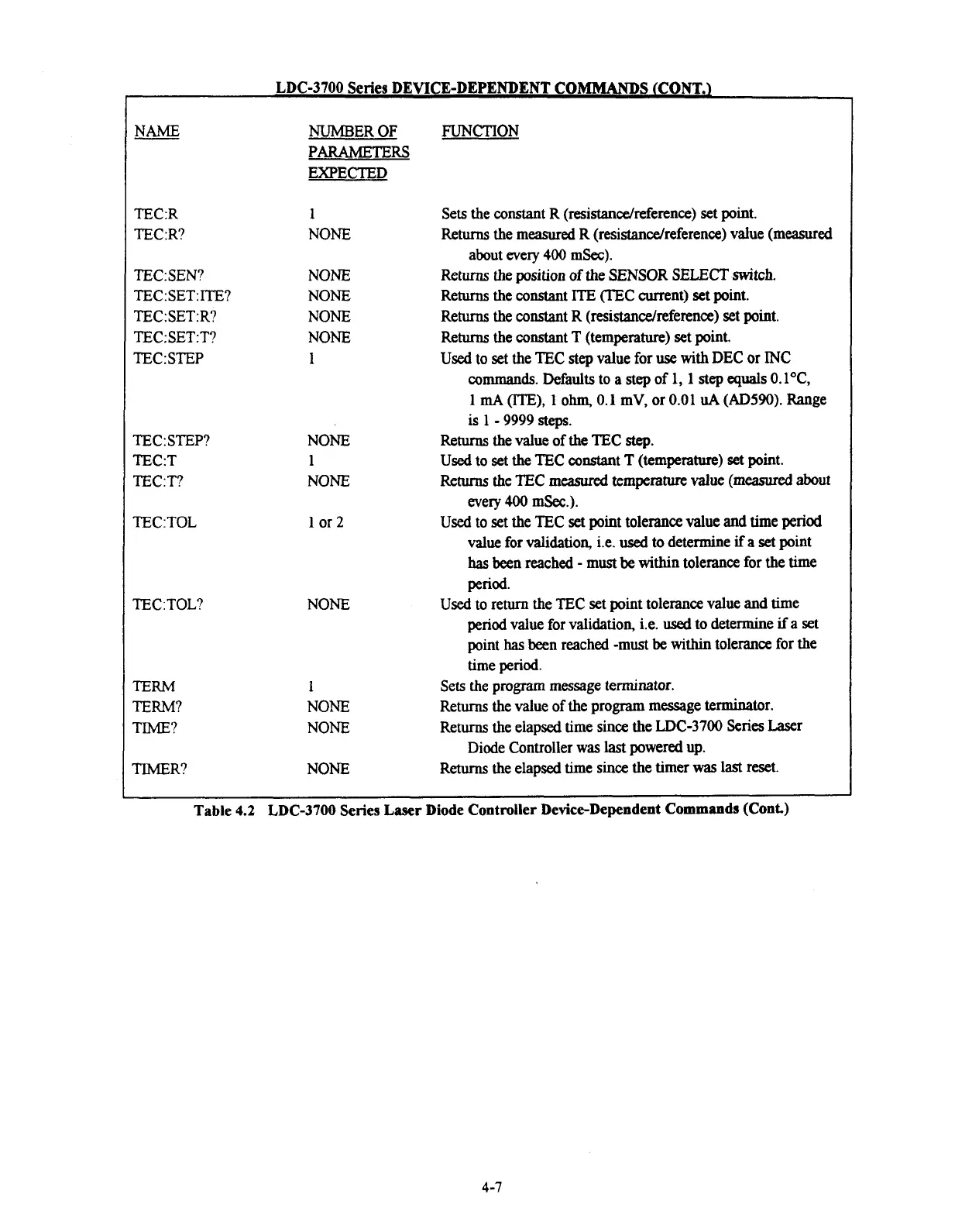

Table 4.2 LDC-3700 Series Laser Diode Controller Device-Dependent Commands (Cont)
