112 A20733 B0
Adjustment and replacement procedures
8- Visually center the jet in the charge electrode using the lower cam (see Figure 3).
IMPORTANT Do not force the cams. Loosen or tighten the lock screws to
ease or restrict the movement of the cannon holder.
9- Center the jet in the gutter using the upper cam (Figure 4).
10- Repeat points 7, 8 and 9 until the jet is correctly centered in both the gutter and the charge
electrode.

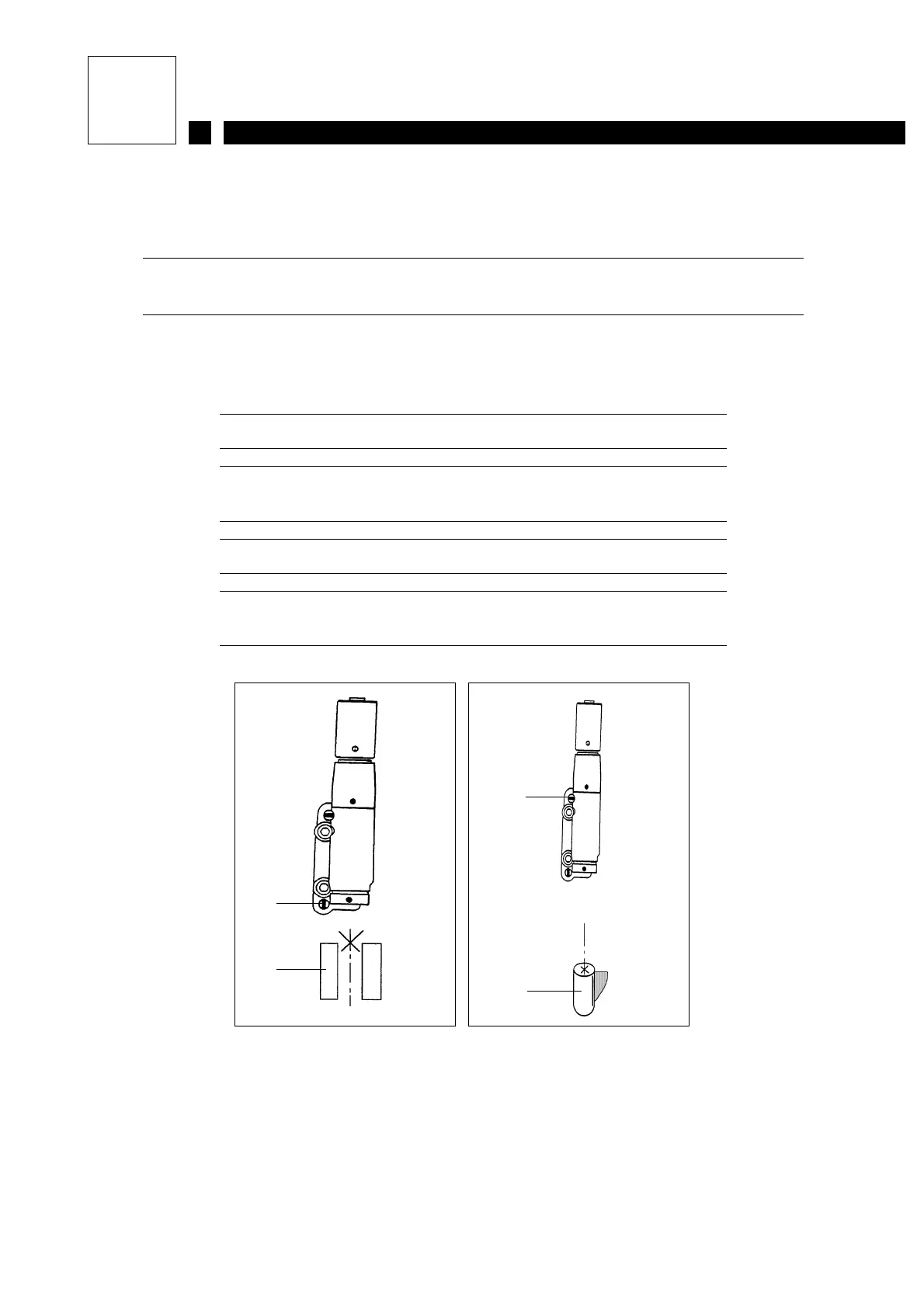

Figure 3: Centering the jet in the charge electrode
1 Lower cam
2 Charge electrode
Figure 4: Centering the jet in the gutter
1 Upper cam
2 Recuperation gutter
1
2
1
2
Figure 3 Figure 4
