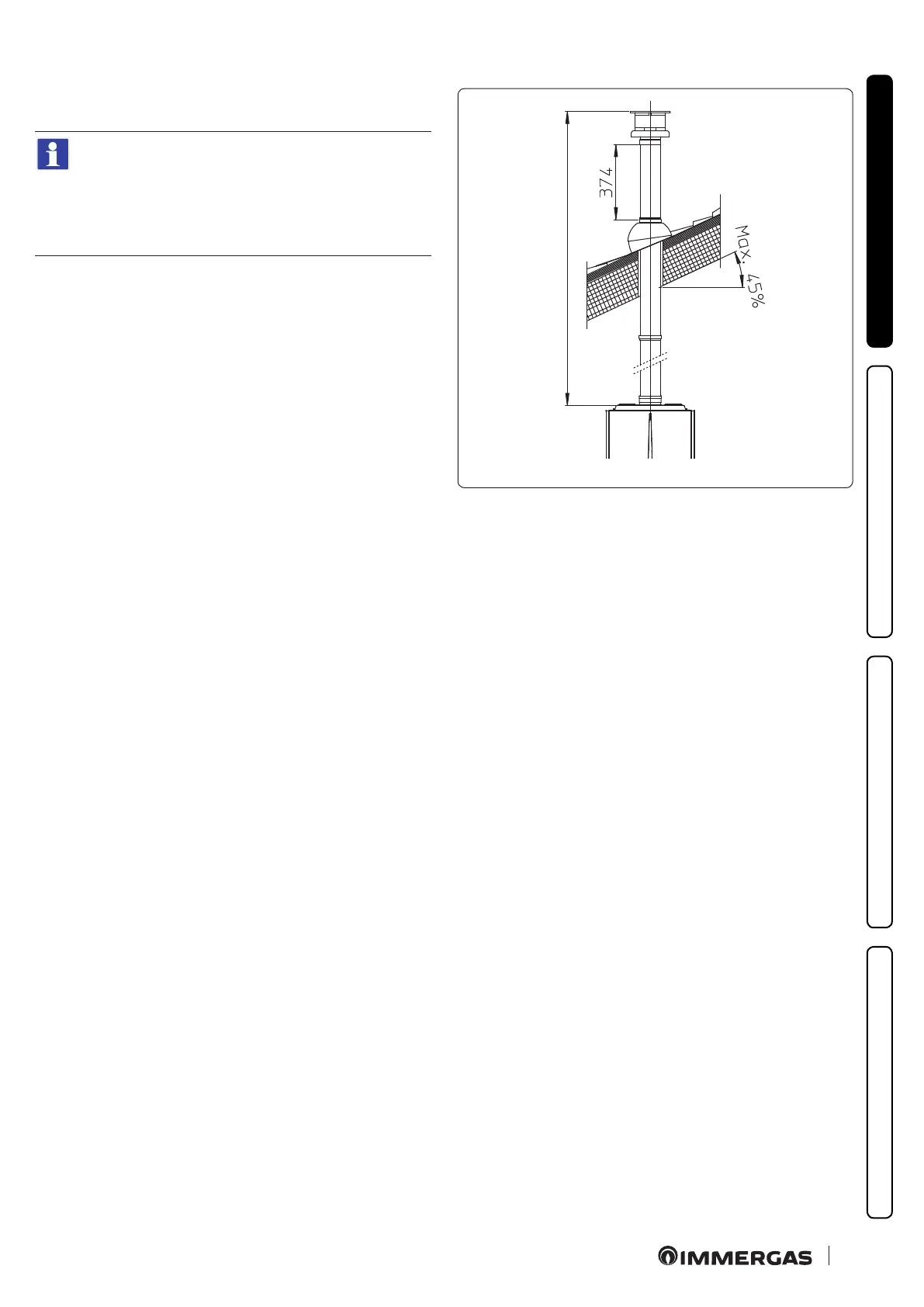

Extensions for vertical kit Ø 60/100 (L = maximum length)
(Fig. 25)
To calculate the length of the ue, simply add, for each
component you intend to use, the corresponding value
indicated in the column "Length equivalent to m of pipe"
in the table in par. 1.14, and check that the resulting sum
is equal to or less than the maximum length indicated in
par. 1.15.
