53
INSTALLER
USERMAINTENANCE TECHNICIAN
TECHNICAL DATA
1
2
3
3
4
5 6 7 6
8
9
A
15
14
13
12
10
11
37

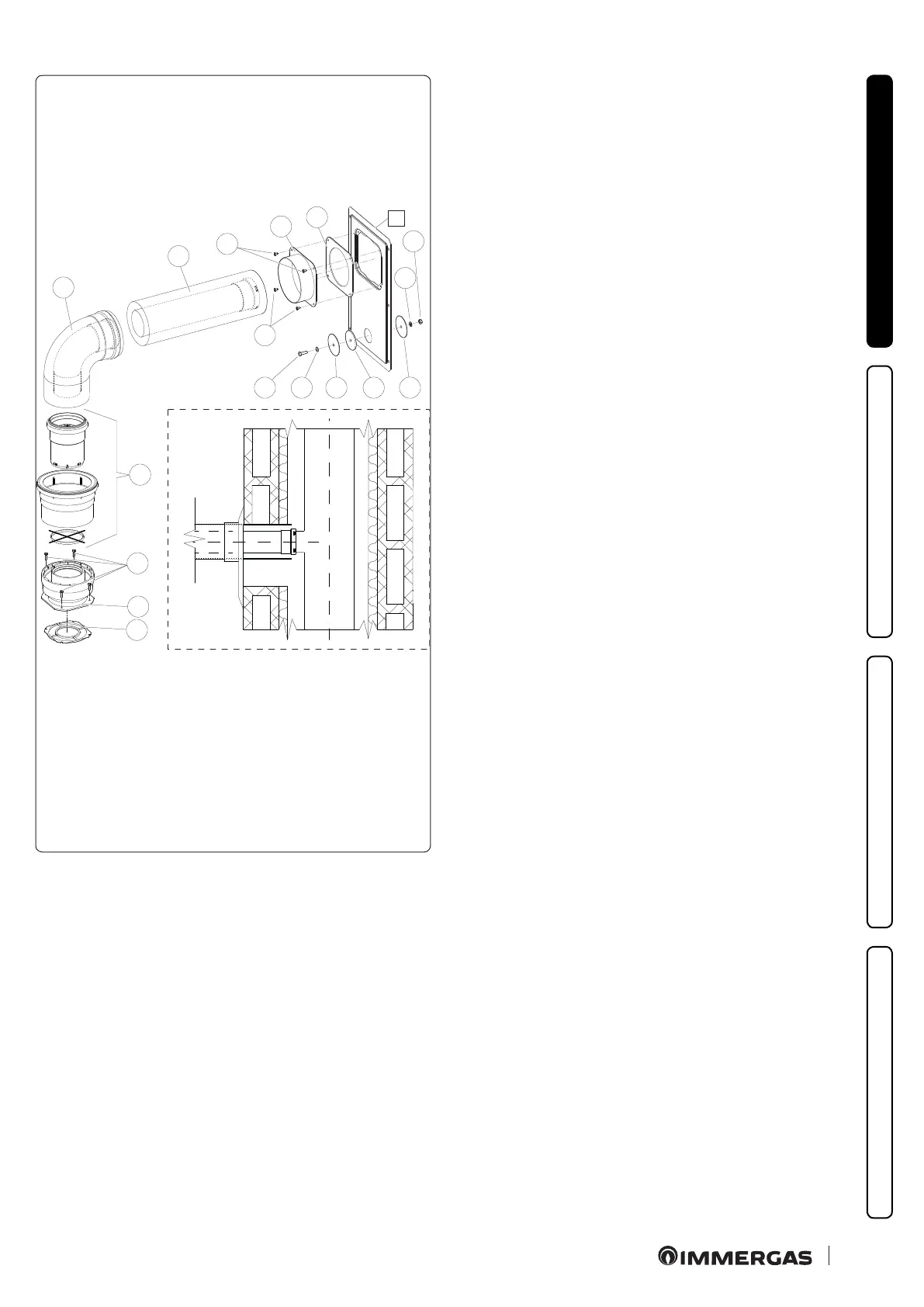

Key (Fig. 37):
e C
(10)
adaptor kit includes:
1 Door adaptor Ø 100 or Ø 125 (1)
1 Door gasket made of neoprene (2)
4 Screws 4.2 x 9 AF (3)
1 Hex head screw M6 x 20 (4)
1 Flat nylon washer M6 (5)
2 Door hole closure metal-sheet plate plugs (6)
1 Neoprene gasket of plug (7)
1 Toothed washer M6 (8)
1 Nut M6 (9)
e Ø 80/125 extension pipe kit includes:
1 Extension pipe unit Ø 80/125 (10)
e bend kit Ø 80/125 includes:
1 Concentric elbow Ø 80/125 at 87° (11)
e non-return valve kit on the ues Ø 80 (12) includes:
1 Gasket Ø 80
1 Non-return valve on ues Ø 80
1 Extension Ø 125
1 Spacer Ø 80 th. 5 mm (to be excluded for this conguration)
1 Information sticker
Victrix Tera V2 24 PLUS EU
1 Counterweight h 6.5 mm (not to be used on these models)
Victrix Tera V2 35 PLUS EU
1 Counterweight h 6.5 mm
e adaptor kit includes:
4 (kit Ø 80/125) M4 hex headed screws x 16 slotted screwdriver
(13)
1 (kit Ø 80/125) Flanged adapter Ø 80/125 (14)
1 (kit Ø 80/125) Concentric gasket (15)
Supplied separately (Fig. 37):
1 Ducting kit door (A)
