21
Operating
Adjusting the lens
1.
Use the ZOOM ring to adjust the screen
size.
2.
Use the FOCUS ring to focus the image.
3.
Turn the VERTICAL adjuster completely
counter clockwise. Then turn it clockwise
and adjust the vertical lens position upward.
4.
Turn the LOCK counter clockwise to loosen
the lock of the HORIZONTAL adjuster.
5.
Turn the HORIZONTAL adjuster clockwise
or counter clockwise to adjust the horizontal
lens position.

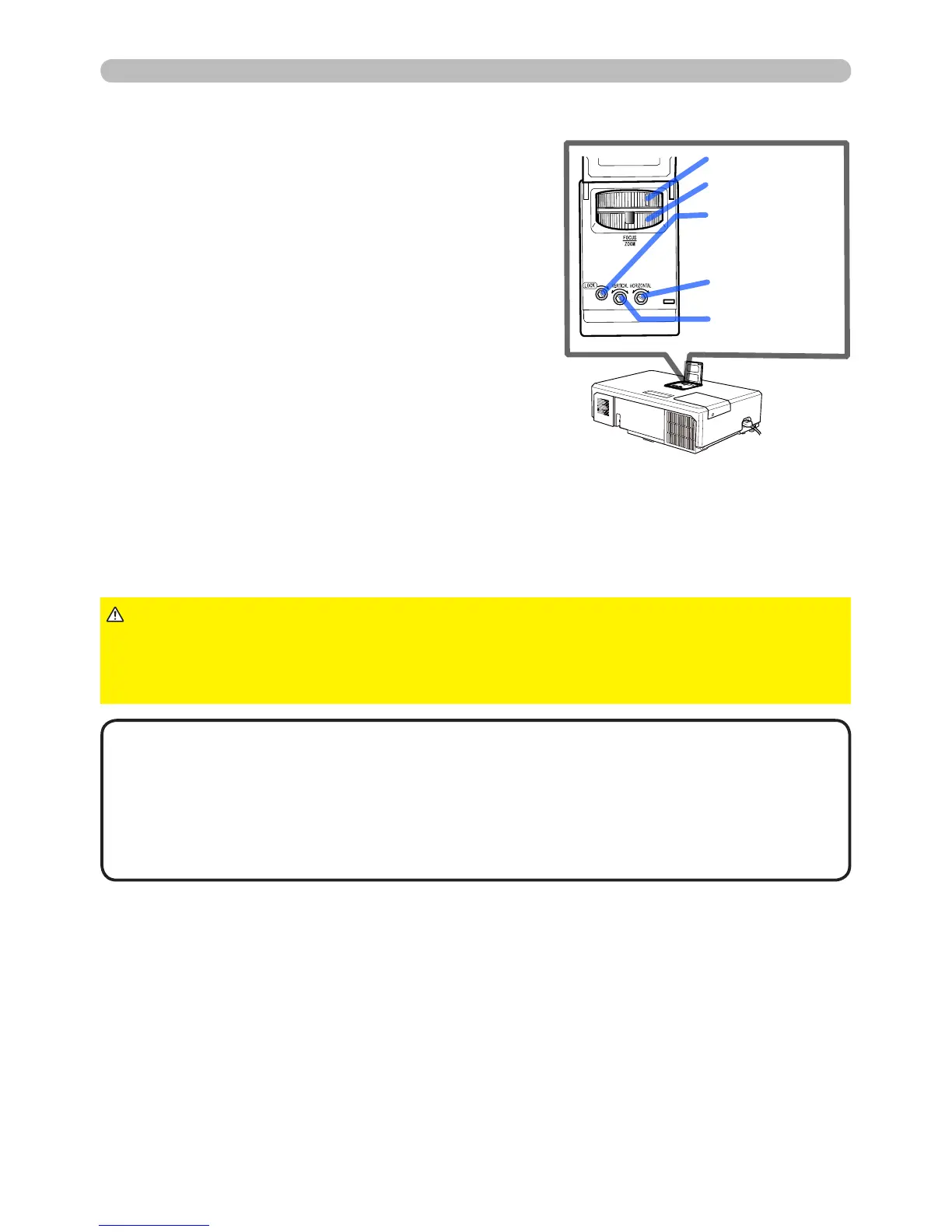

LOCK
FOCUS ring
ZOOM ring
LOCK
(Horizontal
adjuster lock)
HORIZONTAL
adjuster
VERTICAL
adjuster
6.
Turn the LOCK completely clockwise to tighten it and lock the horizontal lens
position.
7.
Use the FOCUS ring to focus the image.
►Operate the lens adjustment controls gently as the lens may
malfunction when subjected to jolts. You may need to use more strength using
the controls near the end of the their range. Be careful not to apply too much
strength.
CAUTION
• Use a hexagon wrench to turn the VERTICAL, HORIZONTAL
adjustment controls and LOCK them in place. If you do not have a hexagon
wrench, you can use a athead screwdriver with careful handling.
• Use the LOCK so that the lens does not shift from the adjusted horizontal
lens position. Adjusting the vertical lens position may shift the horizontal lens
position. This projector is not equipped with a vertical lens position lock.
NOTE
