InFocus IN5122 User Manual

7
Setting up
Setting up
Install the projector according to the environment
and manner the projector will be used in.
For special installation applications such as a
ceiling mount application, specic mounting
accessories (
Specications in the Quick Start
Guide) and service may be required. Before
installing the projector, consult with your dealer
about your installation application.
Arrangement

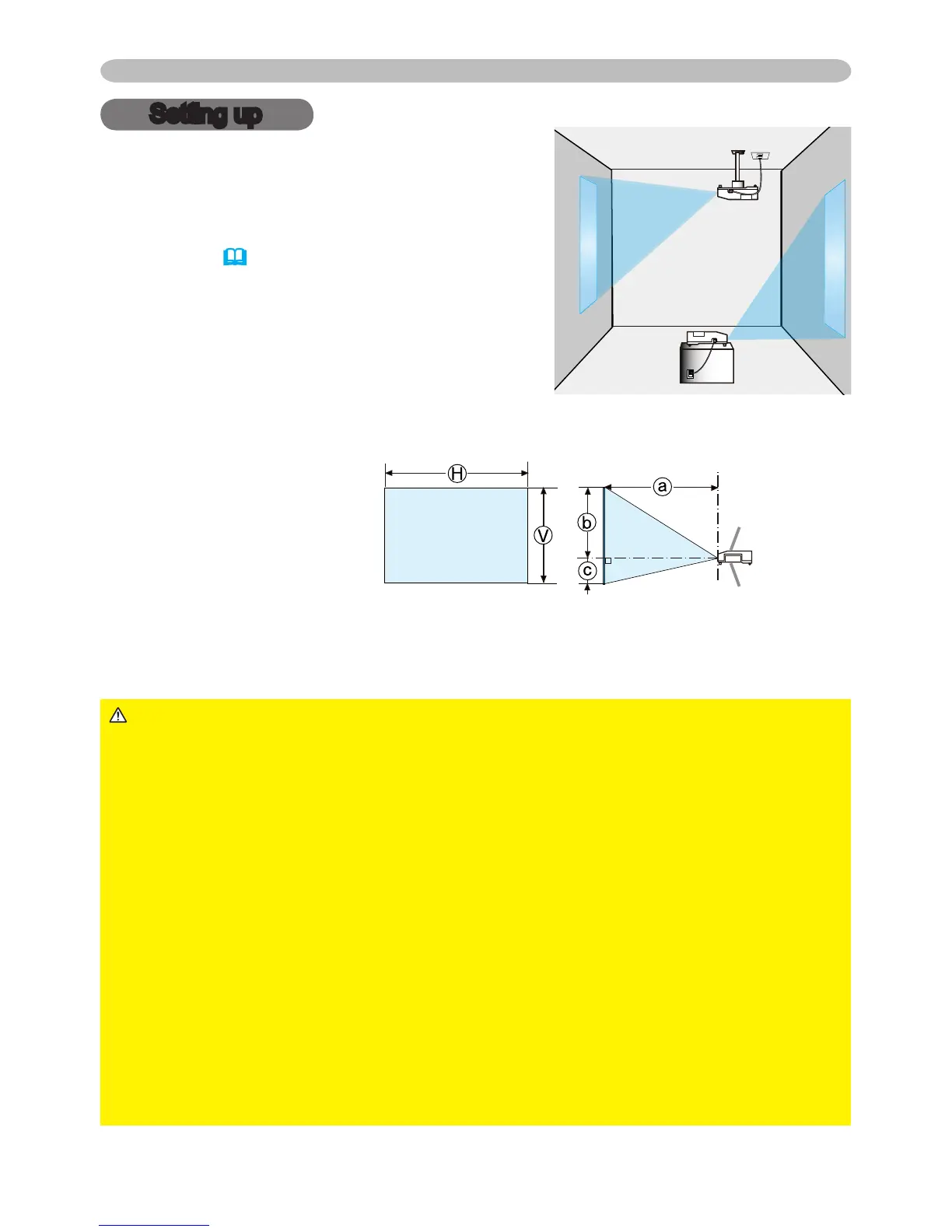

Refer to the following tables T-1 and T-2 in the Quick Start Guide to determine
the screen size and projection distance. The values shown in the table are
calculated for a full size screen.
Ⓗ × Ⓥ :
Screen size
ⓐ :
Projection distance
(from the projector's end)
ⓑ
,
ⓒ
: Screen height
Projector top
Projector
bottom
(continued on next page)
WARNING
►Install the projector where you can access the power
outlet easily. If anything unusual occurs, unplug the projector immediately. Other-
wise this may result in a re or electrical shock.
►Do not subject the projector to unstable conditions. If the projector falls or
topples over, it could result in personal injury, and/or damage to the projector and
surrounding items. Using a damaged projector can result in a re and an electrical
shock.
• Do not place the projector on unstable surfaces, such as an inclined surface,
surfaces subject to vibration, on top of a wobbly table or cart, or a surface that is
smaller than the projector.
• Do not position the projector on its side, front or rear.
• Do not attach or place anything on the projector unless otherwise specied in
the manual.
• Do not use any mounting accessories except the accessories specied by the
manufacturer. Read and keep the manuals of the accessories used.
• For special installations such as ceiling mounting, be sure to consult your dealer
beforehand.

InFocus IN5122 Specifications

General

Matrix size	0.63 \
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	2000:1
Screen size compatibility	35.4 - 358 \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	15 kHz
Focus	Manual
Throw ratio	1.5 - 2.5:1
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	-20 - 0 °
Horizontal lens shift range	-20 - 20 %
Lamp type	UHP
Lamp power	245 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
3D	-
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1600 x 1200 (UXGA)
RMS rated power	16 W
Number of built-in speakers	2
BNC input ports	5
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Cables included	AC, RCA, VGA
Power consumption (standby)	- W
Noise level	32 dB
Certification	UL, c-UL, FCC, CE
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, KOR, NOR, POL, POR, RUS, SWE, TUR
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Operating altitude	0 - 2286 m
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	318.5 mm
Width	401 mm
Height	111 mm
Weight	4800 g
Package depth	420 mm
Package width	560 mm
Package height	197 mm
Package weight	8200 g
