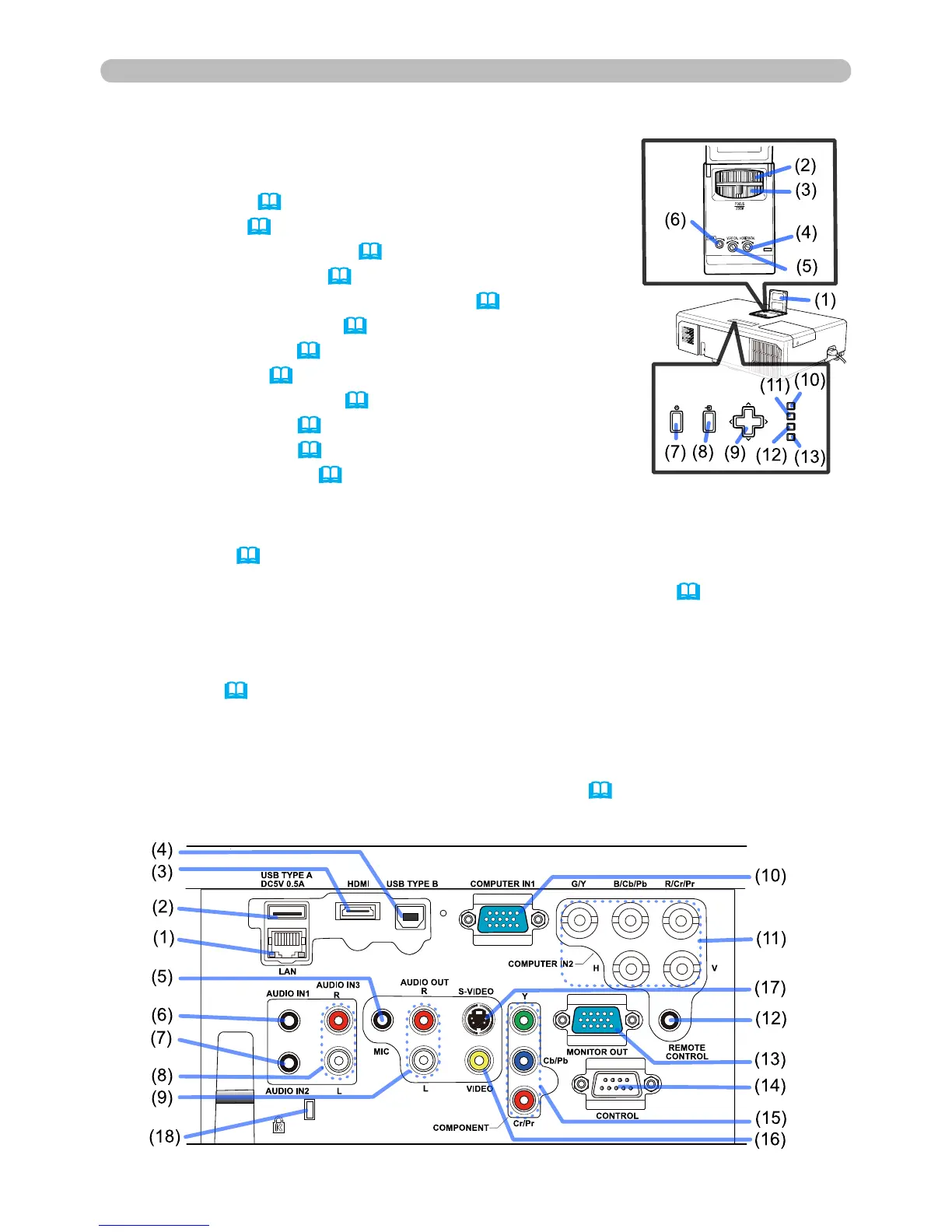

(1) Lens adjuster door
(2) FOCUS ring (21)
(3) ZOOM ring (21)
(4) HORIZONTAL adjuster (21)
(5) VERTICAL adjuster ( 21)
(6) LOCK (horizontal lens position lock) (21)
(7) STANDBY/ON button (17)
(8) SOURCE button (17)
(9) MENU button (26)
(10) SECURITY indicator (69)
(11) LAMP indicator (90)
(12) TEMP indicator (90)
(13) POWER indicator (90)
Rear panel (
9 ~ 13)
(1) LAN port
(2) USB TYPE A port
(3) HDMI port
(4) USB TYPE B port
(5) MIC port (
13)
(6) AUDIO IN1 port
(7) AUDIO IN2 port
(8) AUDIO IN3 (R,L) ports
(9) AUDIO OUT (R,L) ports
(10) COMPUTER IN1 port
(11) COMPUTER IN2 ports (
12)
(G/Y, B/Cb/Pb, R/Cr/Pr, H, V)
(12) REMOTE CONTROL port
(13) MONITOR OUT port
(14) CONTROL port
(15) COMPONENT ports (Y,Cb/Pb, Cr/Pr)
(16) VIDEO port
(17) S-video ports
(18) Security slot (14)
(continued on next page)
