LP500 Series Service Manual 18
Remove and replace the rubber foot

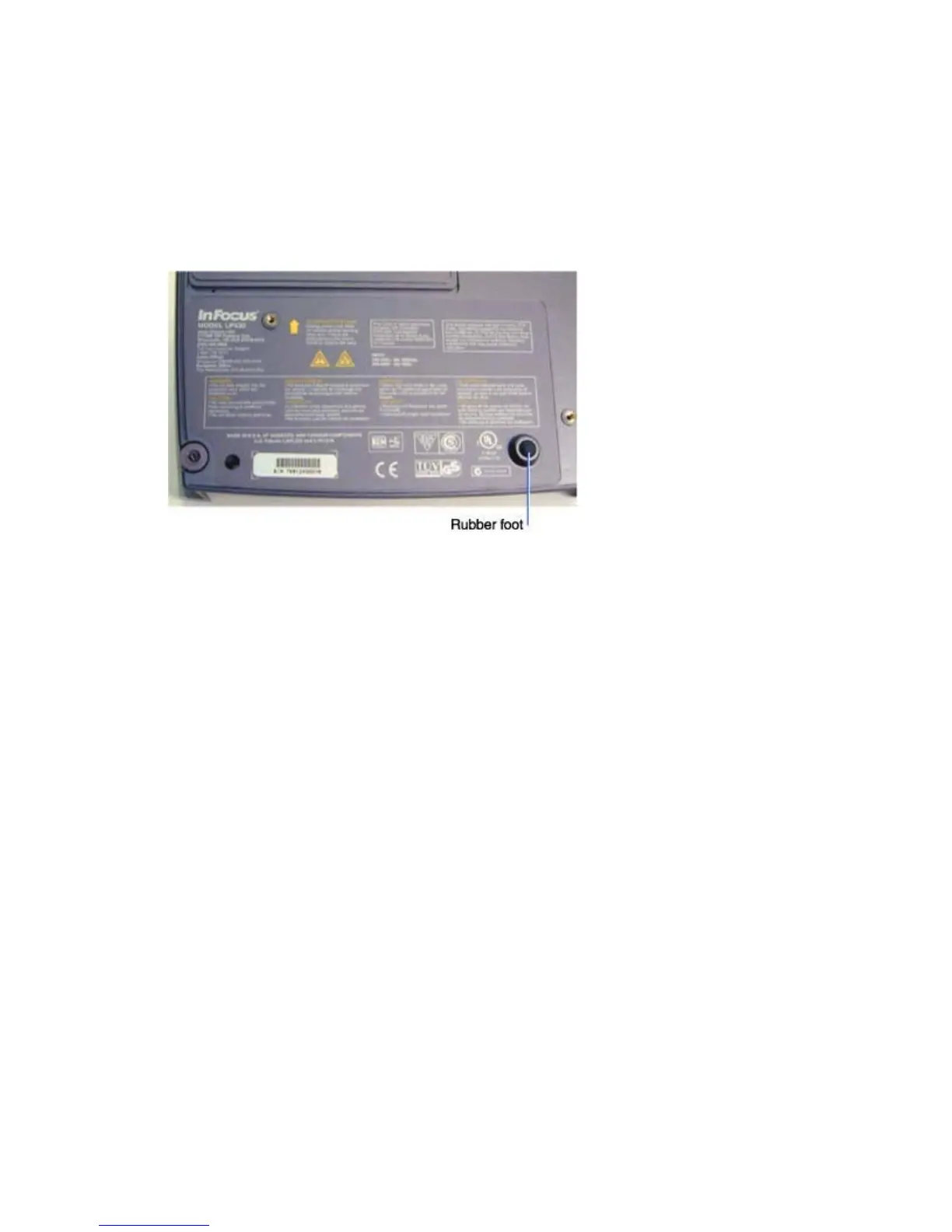

The rubber foot (328-0029-xx) is located on the bottom case at the rear of the projector opposite the
leveling foot..
1 To replace a rubber foot, peel the protective paper off the bottom of the foot. Then press the foot
into the recess in the bottom case. If you need to remove a portion of an old rubber foot, gently
pry it away from the bottom case.
