LP500 Series Service Manual 10
Remove and the front bezel and front bezel vent
The front bezel (505-0959-xx) fastens to the front of the projector. The front bezel vent (505-09612-xx),
in turn, fastens to the front bezel.
To remove the bezel vent, do the following:
1 Remove the focus and zoom rings (see page 8).
2 Use a T-10 driver to remove the black M3x8 Plastite Torx screw on the end of the vent opposite
the projection lens.

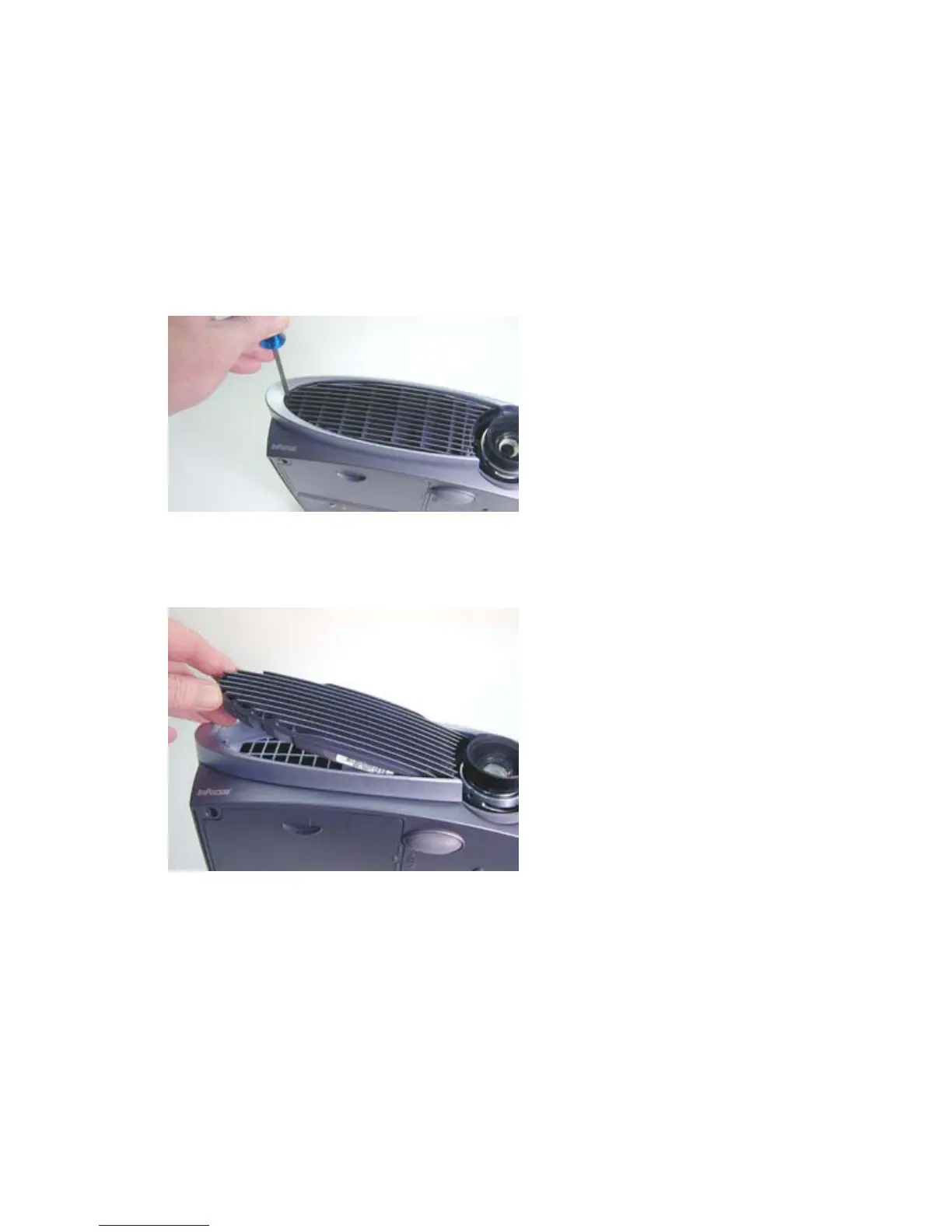

3 Lift the end of the vent near the screw first, then pull the vent off of the projector. You may need
to use a small bladed screw driver to pry it up.
4 Use a T-10 driver to remove the two black M3x8 Torx screws that fasten the front bezel to the
projector near the lens.
