LP500 Series Service Manual 68
Remove and replace the bottom case
The bottom case (505-0836-xx) encloses the bottom half of the projector. A new bottom case also
includes the rubber foot, elevator, leveling foot, light block louver and the engine mount spacer. When you
replace a bottom case, you also need to adhere a new certification label (LP500: 020-1136-xx; LP530:
020-1102-xx).
1 Remove the chassis and power supply (page 39) and the optical engine (page 60) from the
bottom case.
2 Place the chassis on the work surface so the outside faces upward.
3 Remove the serial number label. To do this, carefully use a heat gun or hair drier to soften the
adhesive on the back of the label, then peel it off. Do not lose the serial number. It is not a
replaceable part.
Assembly Note

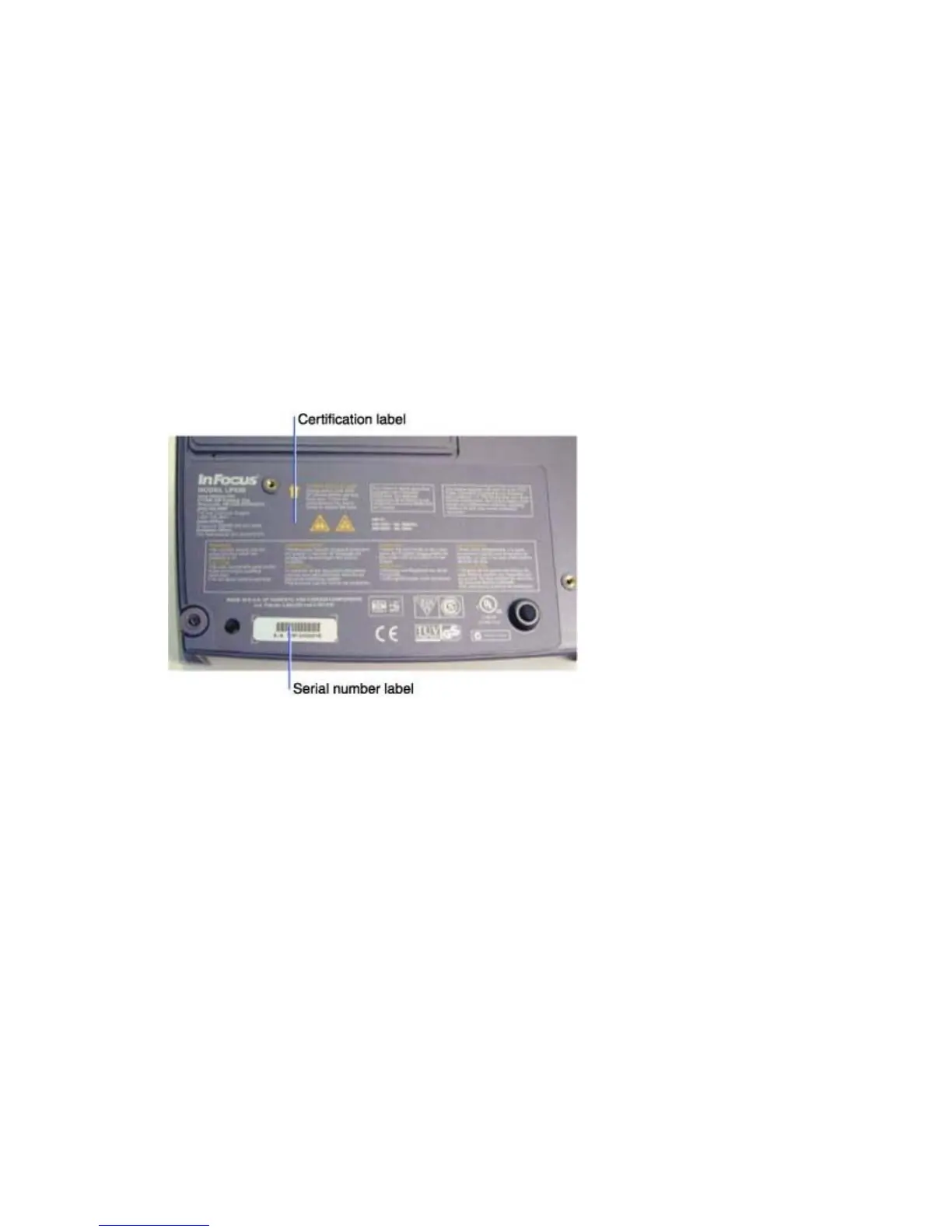

♦ Adhere a new certification label to the bottom case. Then adhere the original serial number label in
the box near the leveling foot.
