LP500 Series Service Manual 51
Remove and replace the power supply
The power supply (510-1532-xx) fastens to the metal chassis. It includes both the ballast and low
voltage components on one ECA. To remove the power supply, you remove the chassis from the
projector, then separate the power supply from the chassis.
1 Remove the chassis and power supply from the bottom case (page 39), and place the assembly
chassis side up on the work surface.

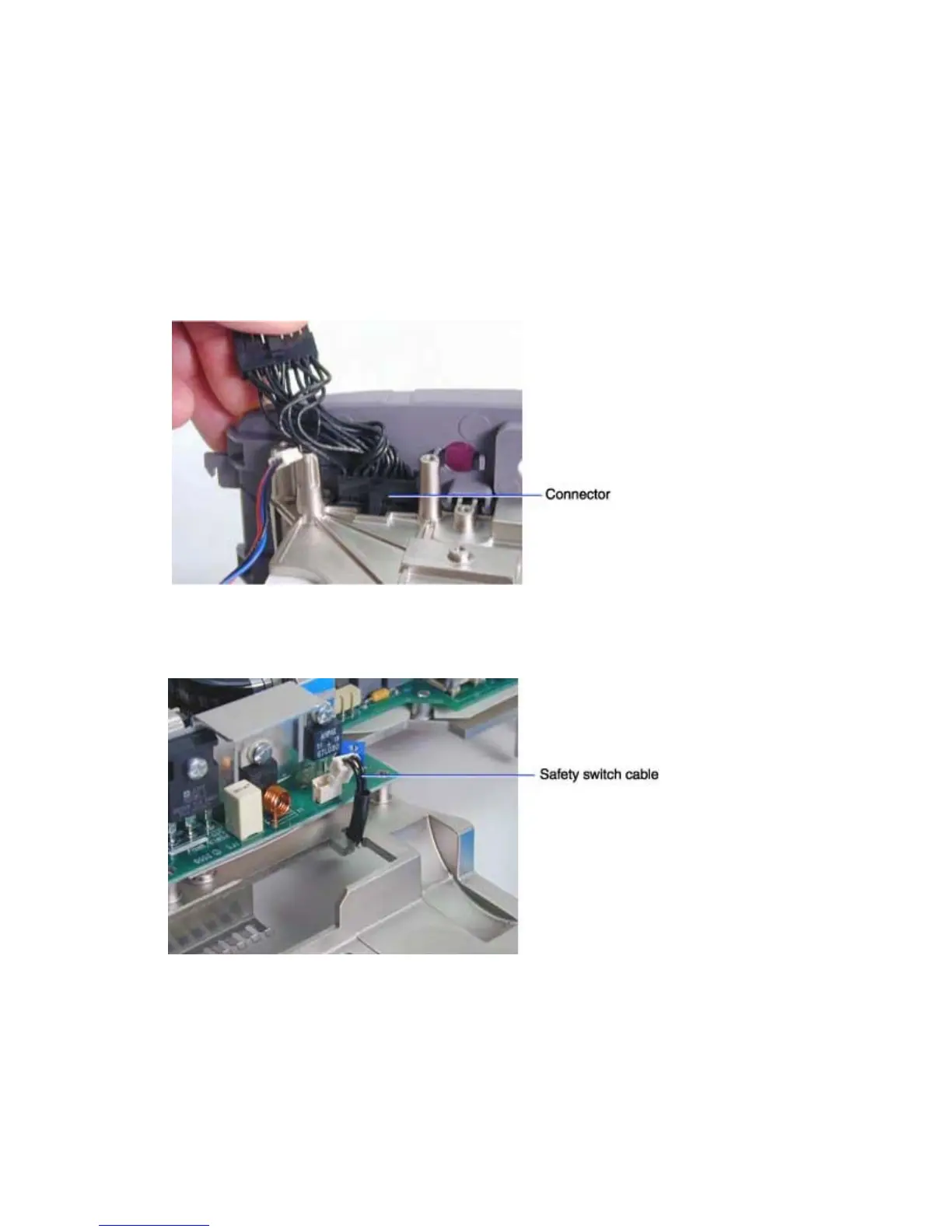

2 Remove the controller/power supply cable (211-0161-xx) from its connector on the power
supply. Squeeze the latch on the bottom of the connector to release it.
3 Turn the chassis over so that the power supply faces upward.
4 Unplug the safety switch cable (211-0162-xx) from its connector on the power supply.
