LP500 Series Service Manual 52

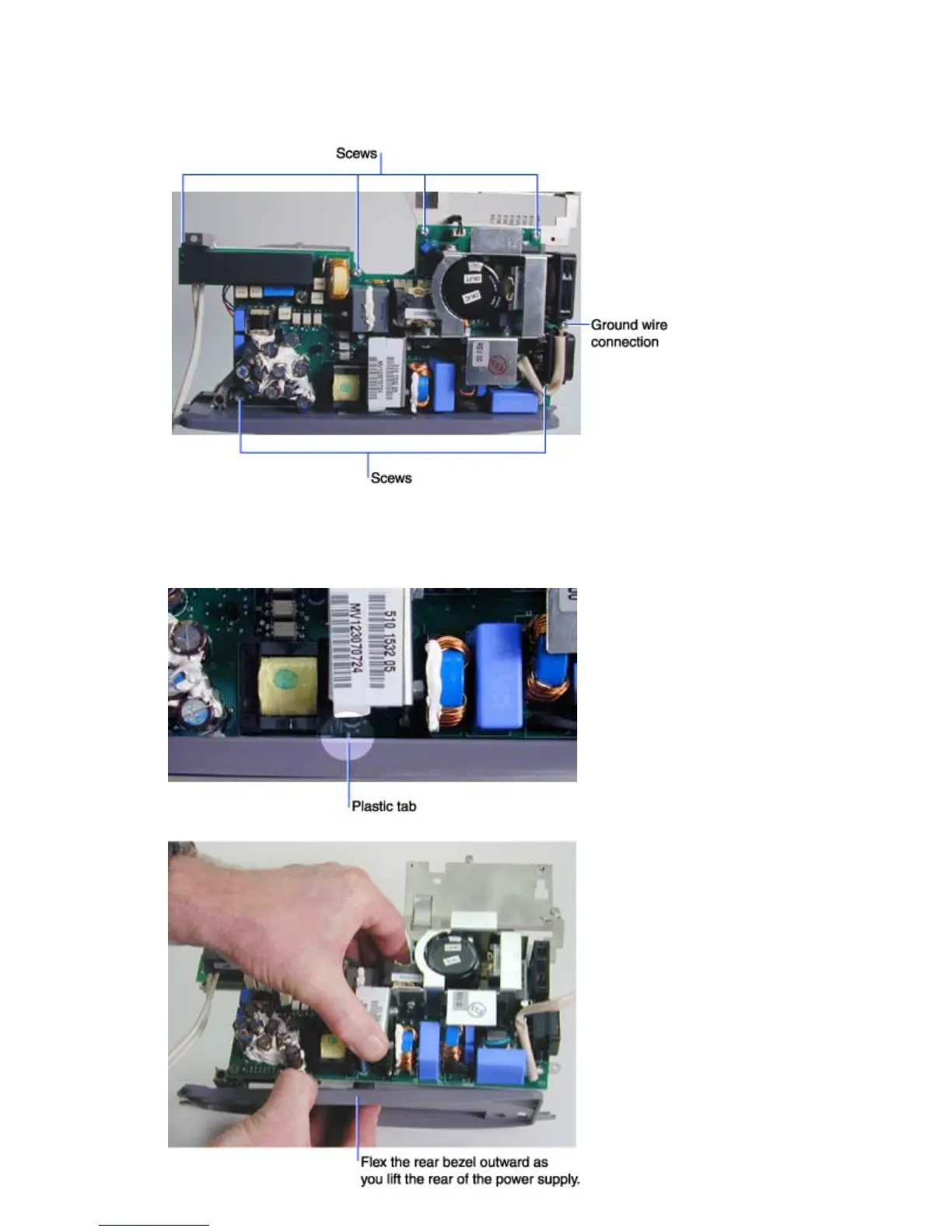

5 Remove the six 3x8 Torx screws that fasten the power supply to the chassis. Note that one screw
holds a ground wire to the chassis.
6 To separate the chassis and power supply, flex the rear bezel outward while lifting the rear of the
power supply. A tab in the center of the bezel fits over the power supply ECA. When you flex the
bezel, the ECA clears the tab, and you can lift the power supply out of the chassis.
