LP500 Series Service Manual 48

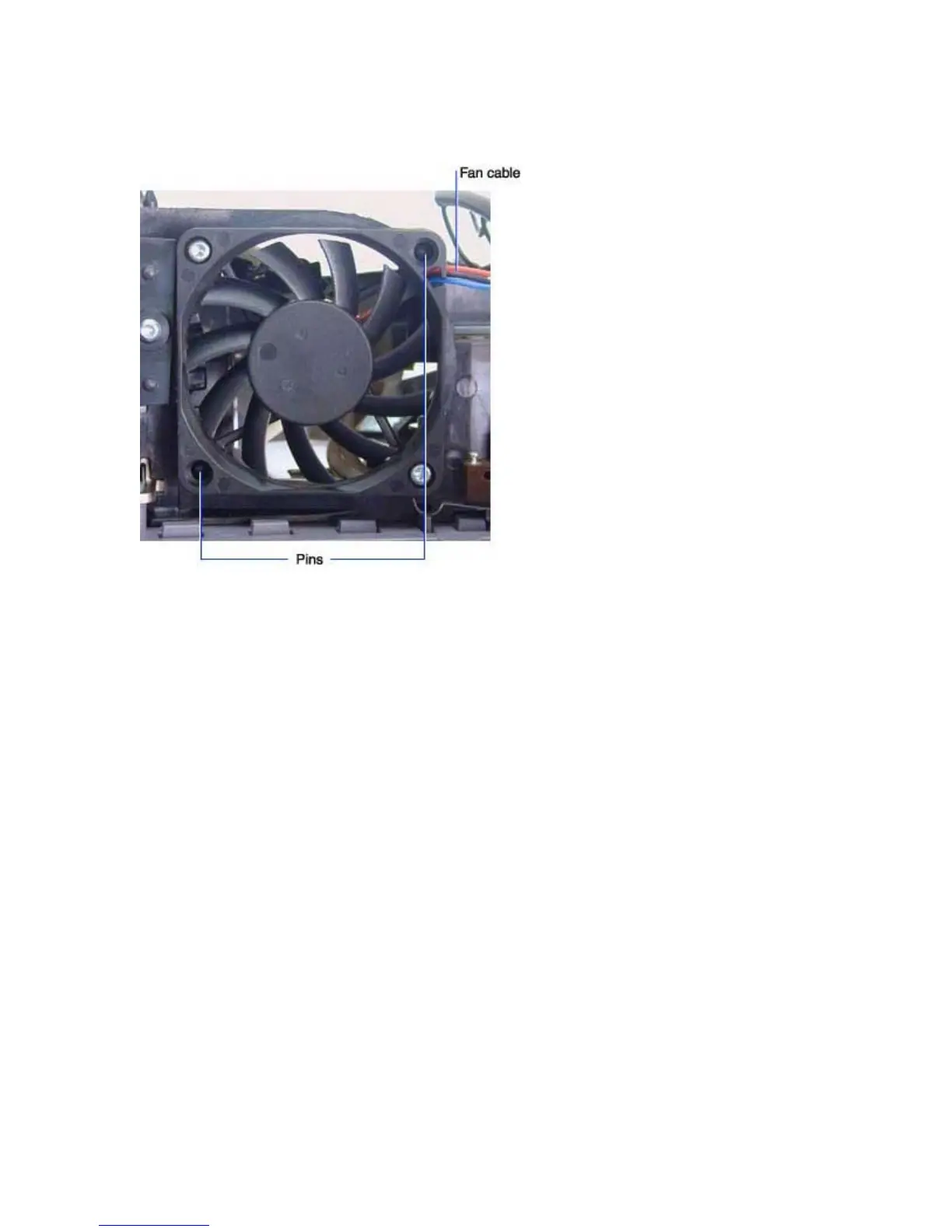

♦ To install the lamp fan on the lamp housing, orient the fan so that the cable emerges from the top
right corner as you face the fan. The heat shield must face inward. Pins on the lamp housing match
two holes in the fan.
♦ Torque the M3x12 Torx Plastite screws to 6 in/lbs (.68 Nm).
