LP500 Series Service Manual 63

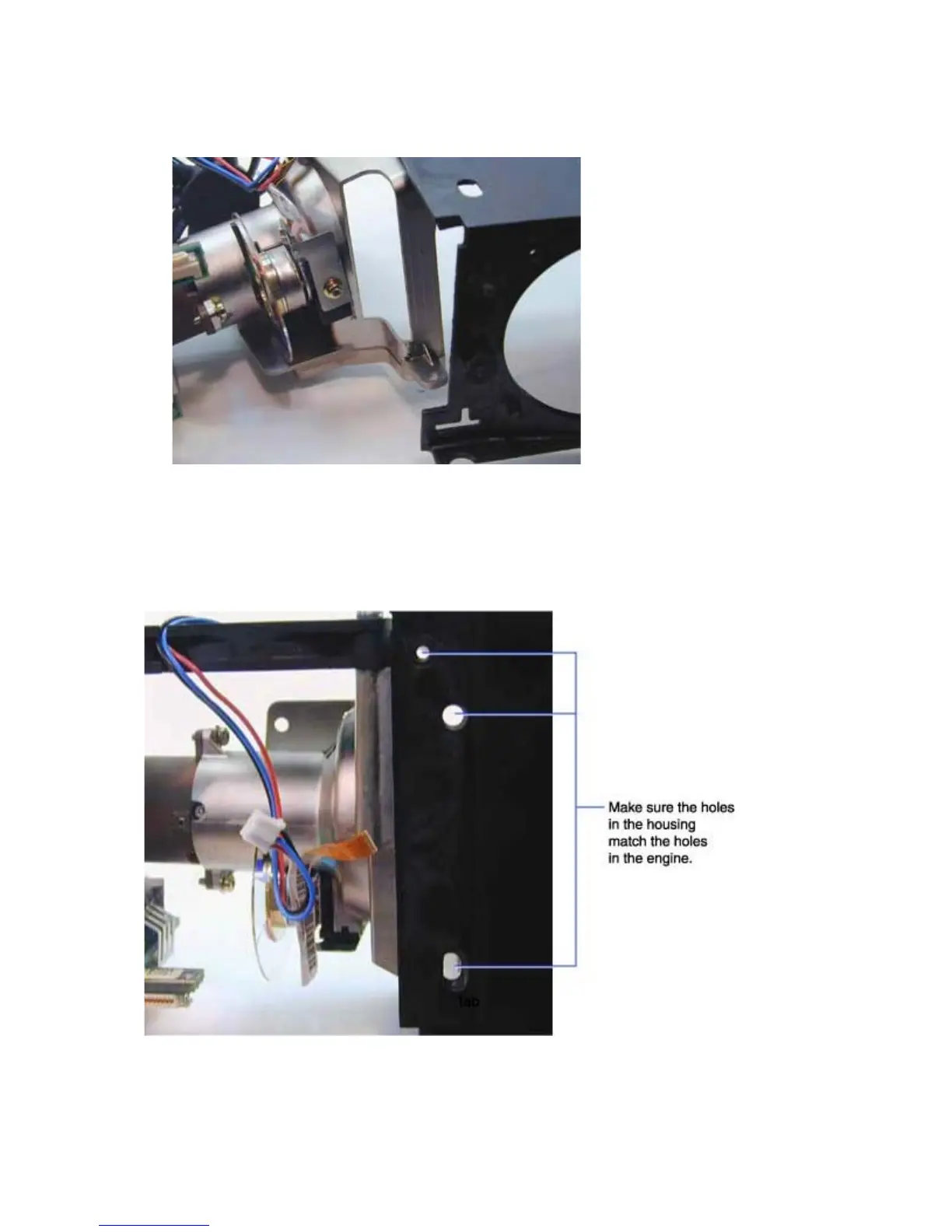

7 Slide the lamp housing to the rear to remove it from the engine. Note that a tab on the engine
casting fits through a slot on the back of the lamp housing.
Assembly Notes
♦ Slide the lamp housing into place so that the tab on the engine casting fits into the slot on the lamp
housing. Verify that the holes in the lamp housing align with the holes in the engine casting. Secure
the housing the engine with the M3x8 Torx screw. Torque the screw to 6 in/lbs (.68 Nm)
