LP500 Series Service Manual 78
Confirm the software upgrade
1 On the projector keypad, press the menu/select button to display the menus
2 Press the volume + button until the Status window opens.

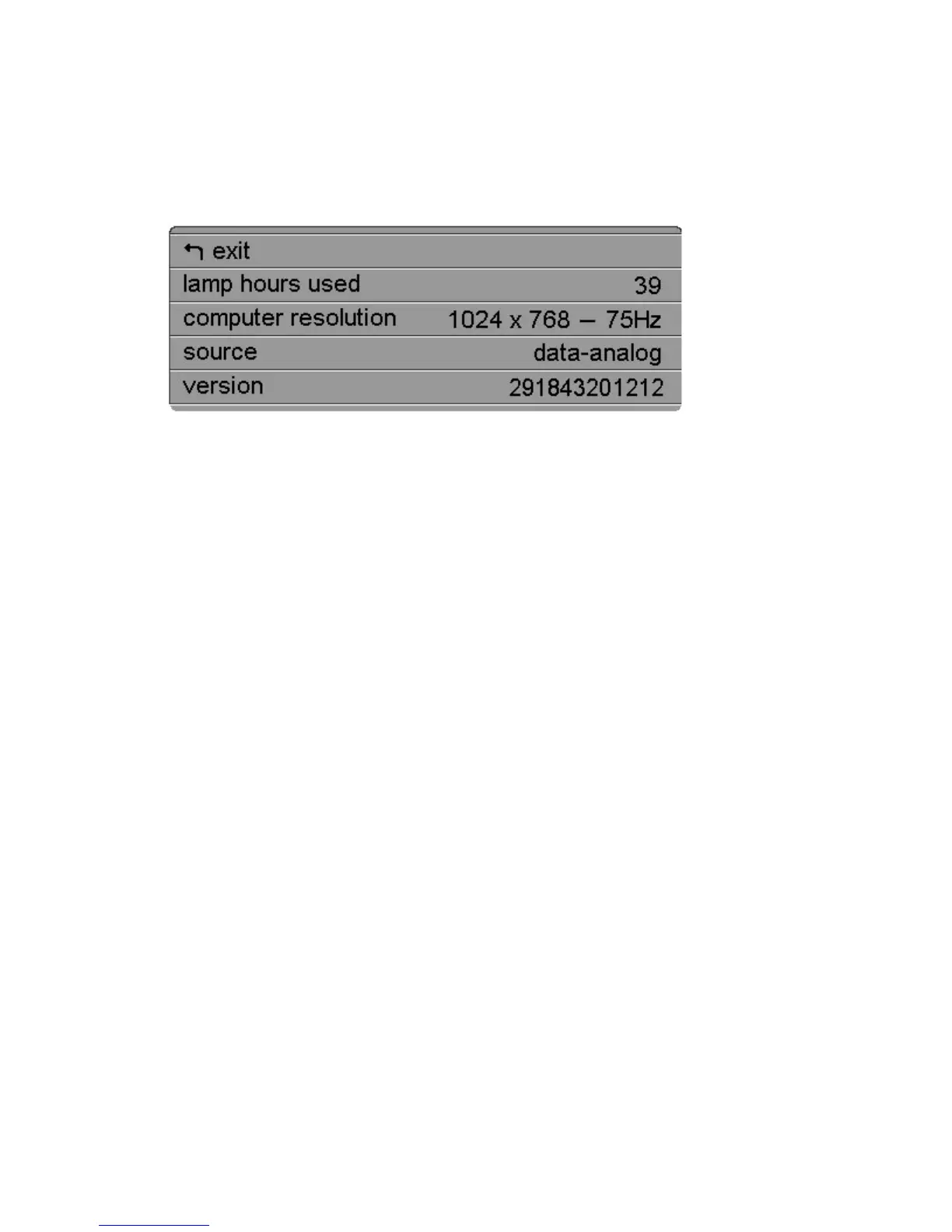

The new software version number appears in the Status window.
Here is how to interpret the version number in the example above. The version number is really a
list of the HEX files version numbers. (See the illustration in step 8 above. The version numbers
are listed with the selected HEX files (he_) in the File List box in the FlashUSB dialog box.)
In the illustration above:
29 = boot code v2.9
18 = ROM code v1.8
26 = GUI code v2.6
23 = data configuration v2.3
11 = Splash screen version 1.1
12 = EDID version 1.2
The version number you see should match the series of version numbers for each HEX file in the
file you downloaded from the InFocus web site.
