Ingenico iCT250 User Manual

SKYZER TECHNOLOGIES PAGE 86 OF 116
NITRO INGENICO ICT250 AND IWL252 2015 PAYMARK SOFTWARE OPERATING GUIDE Version 1.0
11 OPERATION OF TERMINAL
11.1 MERCHANT LOGON
A merchant logon can be initiated from the POS system. To perform this
function, double click on the “C” icon which is located on the right bottom
taskbar. To initiate a merchant logon, perform the steps below:

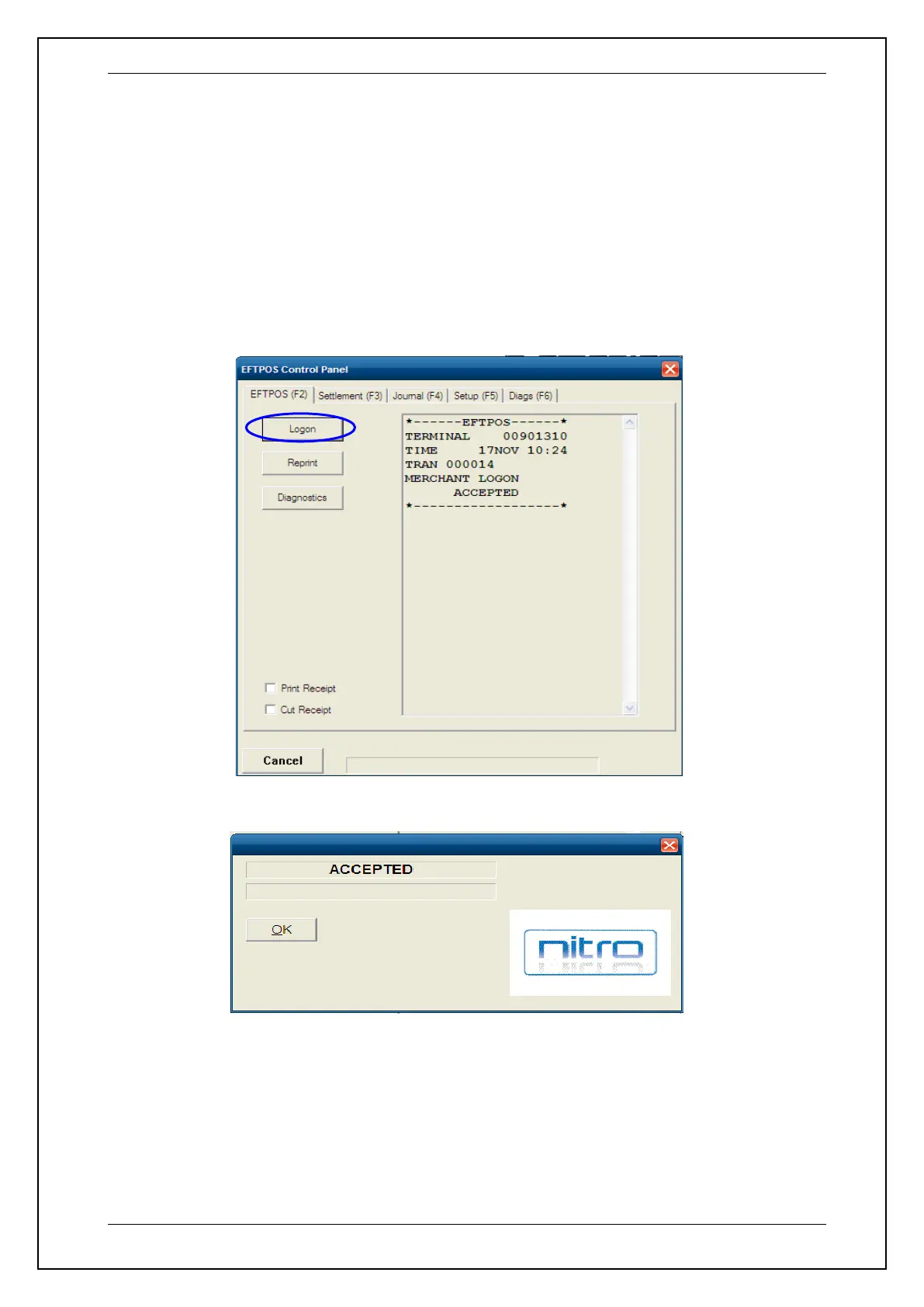

Select EFTPOS (F2) tab where LOGON tab is located. Select LOGON to establish
connectivity between the POS and Paymark network. If successful, an
ACCEPTED response will be returned to the POS system

Ingenico iCT250 Specifications

General

Memory	16 MB RAM, 128 MB Flash
Card Readers	Magnetic stripe, Smart card, Contactless
Operating System	Telium 2
Connectivity	Ethernet
Security	PCI PTS 3.x certified
Printer	Integrated thermal printer
Supported Cards	Visa, Mastercard, American Express, Discover
Display	128x64 pixel LCD, Backlit
Power Supply	External power adapter
