p4 Section 2. Intro. Version 1.01 CONCEPT IQ. Installation & Programming Manual.
2. The LED Terminal
2 or 3 Short Beeps: A User, Master or Installer function was successful.
1 Long Beep: A User, Master or Installer function has been unsuccessful.
When a wrong key is pressed, or an incorrect value/option is selected, the beeper tones
will sound at a lower pitch until a correct operation is successfully performed.
Continuous Short Beeps*: Entry Delay Timer, Exit Delay Timer or Auto-arm Warning.
*NOTE:
Single Area systems. All Terminals will beep in response to Exit delay, Entry delay or Auto-arm warnings.
Multi-Area systems. Only Terminals associated with a particular Area will beep in response to that Area’s
warning functions. IMPORTANT NOTE: Terminals not associated with an Area will only
beep on Area 1 warning functions.
2.2 BEEPER INDICATIONS.
PANIC. Keys 1 & 3 pressed simultaneously.
FIRE. Keys 4 & 6 pressed simultaneously.
MEDICAL. Keys 7 & 9 pressed simultaneously.
REX (Request to Exit) <OFF> key.
Enhanced Terminals only.

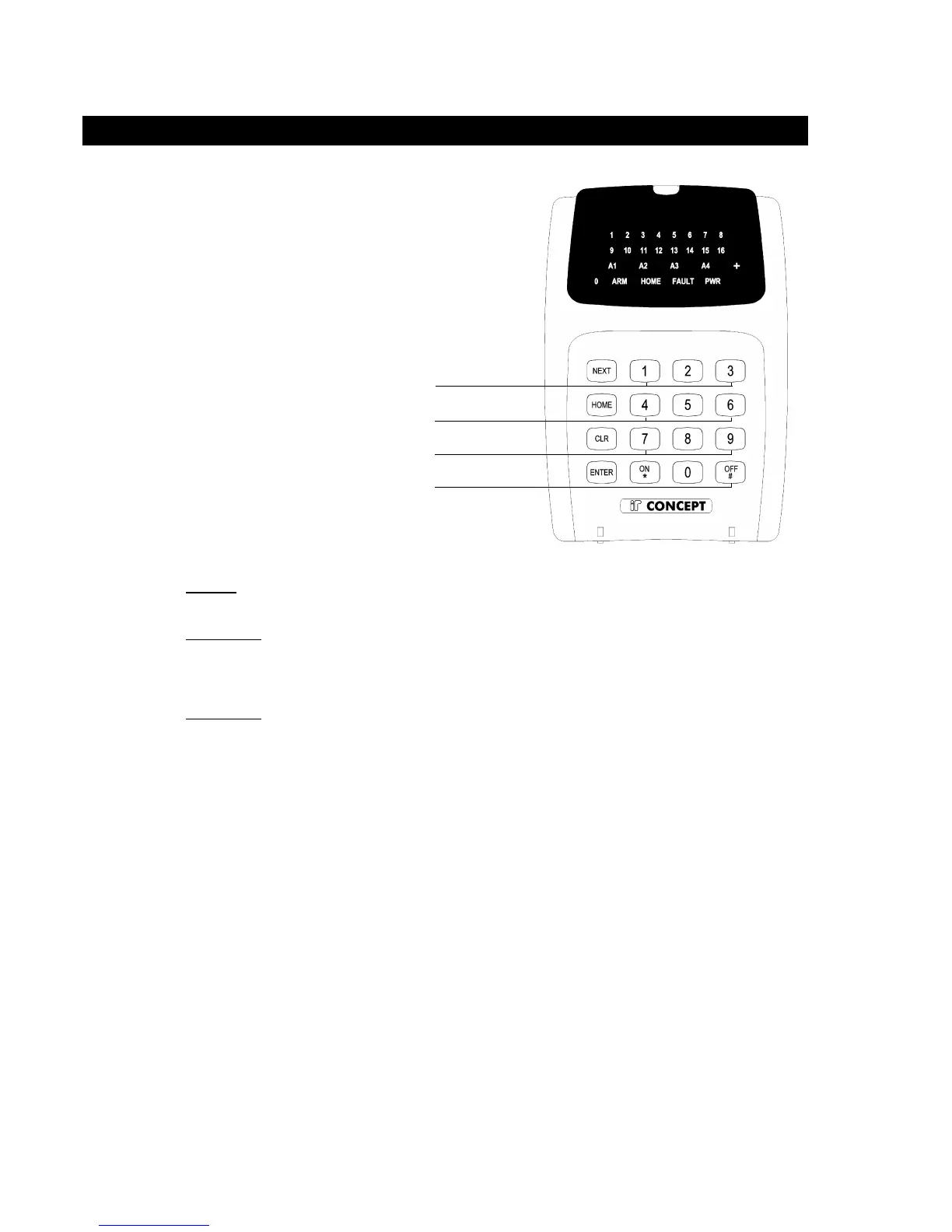

2.1 KEY FUNCTIONS.
NEXT Installer:
-Select an Installer Mode. After entering the Installer PIN code, press <NEXT> then the Mode number.
-Used to view data values above a value of 16. Press <NEXT> to step through the digits.
Master User:
-Select a Master User operation. After entering the PIN code, press <NEXT> then the Mode number.
HOME -In Single Area Mode: Used to Arm the system in Home Mode.
-In Multi-Area Mode: Used to Arm the specified Area in Home Mode.
Master User:
-Used to step through programming Addresses when programming Users or Telephone numbers.
-Used to toggle between Zone Test modes.
CLR -Set the data in the current Address to the Factory Default. (Press <*>, <CLR>, <ENTER>)
-Clear the data already entered if you have made a mistake.
-Logoff the Terminal. (Exit the current Mode of operation)
ENTER -Selects the specified programming Address. (After the PIN Code and the Address number have been
entered)
-Saves the data entered in a programming Address.
AUTO-LOGOFF: The Terminal will automatically logoff the operator if there is no keypad activity detected for 30
seconds. This is to protect the system against unauthorised operator activity.
