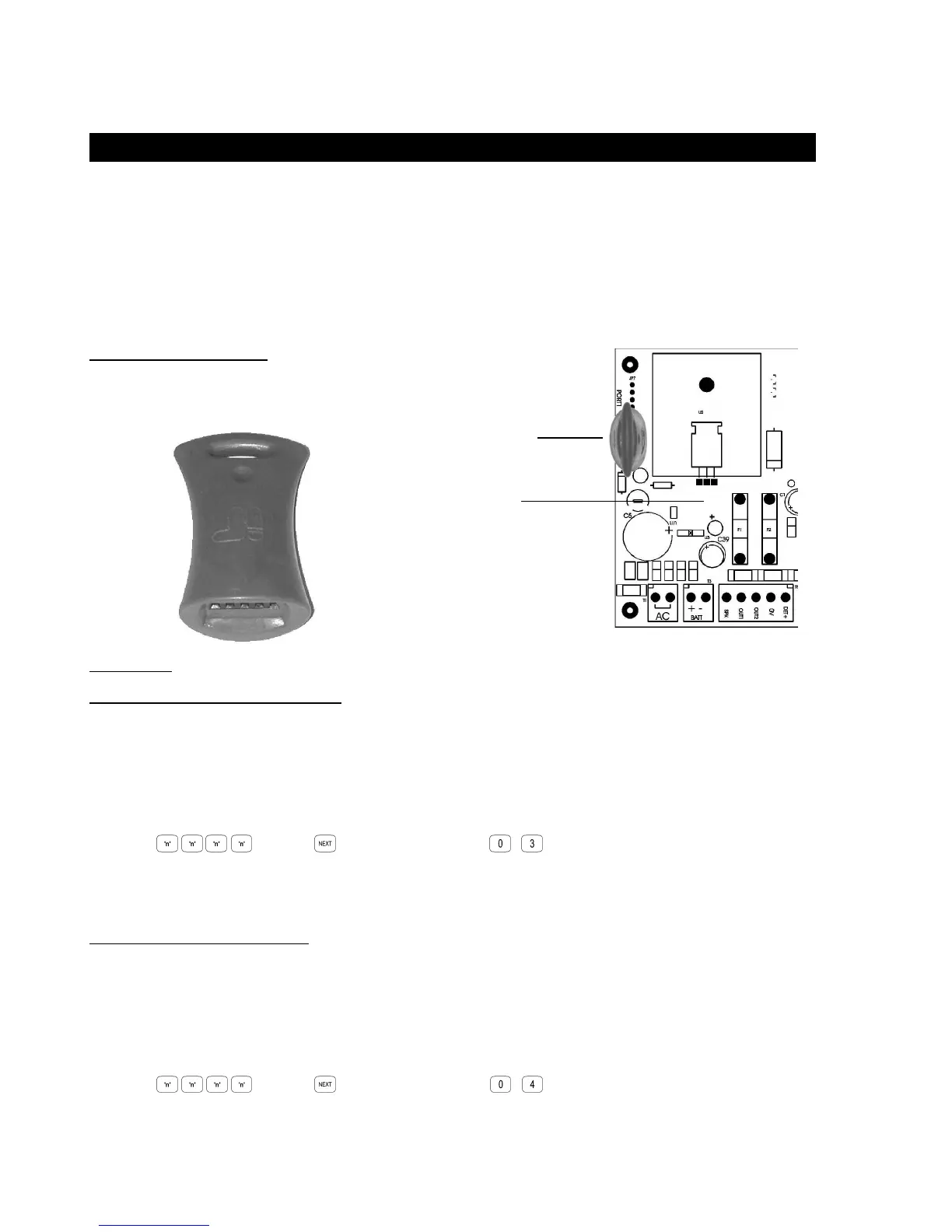

Section 1. Installation. CONCEPT IQ. Installation & Programming Manual.p8

Programming Key. 995510

Programming Key Parts List

- Programming key.

- Instruction Manual. (This document)

The Concept IQ Programming Key is a portable non-volatile memory device housed in a convenient “key tag”.

The Programming Key connects directly to the Control Module Port 0 and allows the Installer to Upload the system

database from the Control Module, or Download a system database to the Control Module via a simple key press

sequence on the LED Terminal.

An indicator lamp is provided on the Programming key to monitor data transfer activity, and the LED Terminal provides

audible indication of Upload/Download Successful/Failed.

OPERATION.

Importing Data from the Programming Key.

This Mode allows the Installer to copy the programming contents of the Programming Key into the Control Module.

IMPORTANT NOTE: The new data will override the existing contents of the Control Module memory.

Connect the Programming Key to Serial Port 0 on the Control Module.

Select the Import Data Mode:

Enter PIN; ... , then , then the Mode number; , .

The Lamp on the Programming Key will flash slowly to indicate data is being copied.

The Terminal beeper will sound 3 short beeps if the operation was successful, or 1 long beep if unsuccessful.

Export Data to the Programming Key.

This Mode allows the Installer to copy the programming contents of the Control Module into the Programming Key.

IMPORTANT NOTE: The Control Module data will override the existing contents of the Programming Key.

Connect the Programming Key to Serial Port 0 on the Control Module.

Select the Export Data Mode:

Enter PIN; ... , then , then the Mode number; , .

The Lamp on the Programming Key will flash quickly to indicate data is being copied.

The Terminal beeper will sound 3 short beeps if the operation was successful, or 1 long beep if unsuccessful.

Programming Key

connected to Port 0.

Control Module

Version 1.00
